Maintenance
4－28

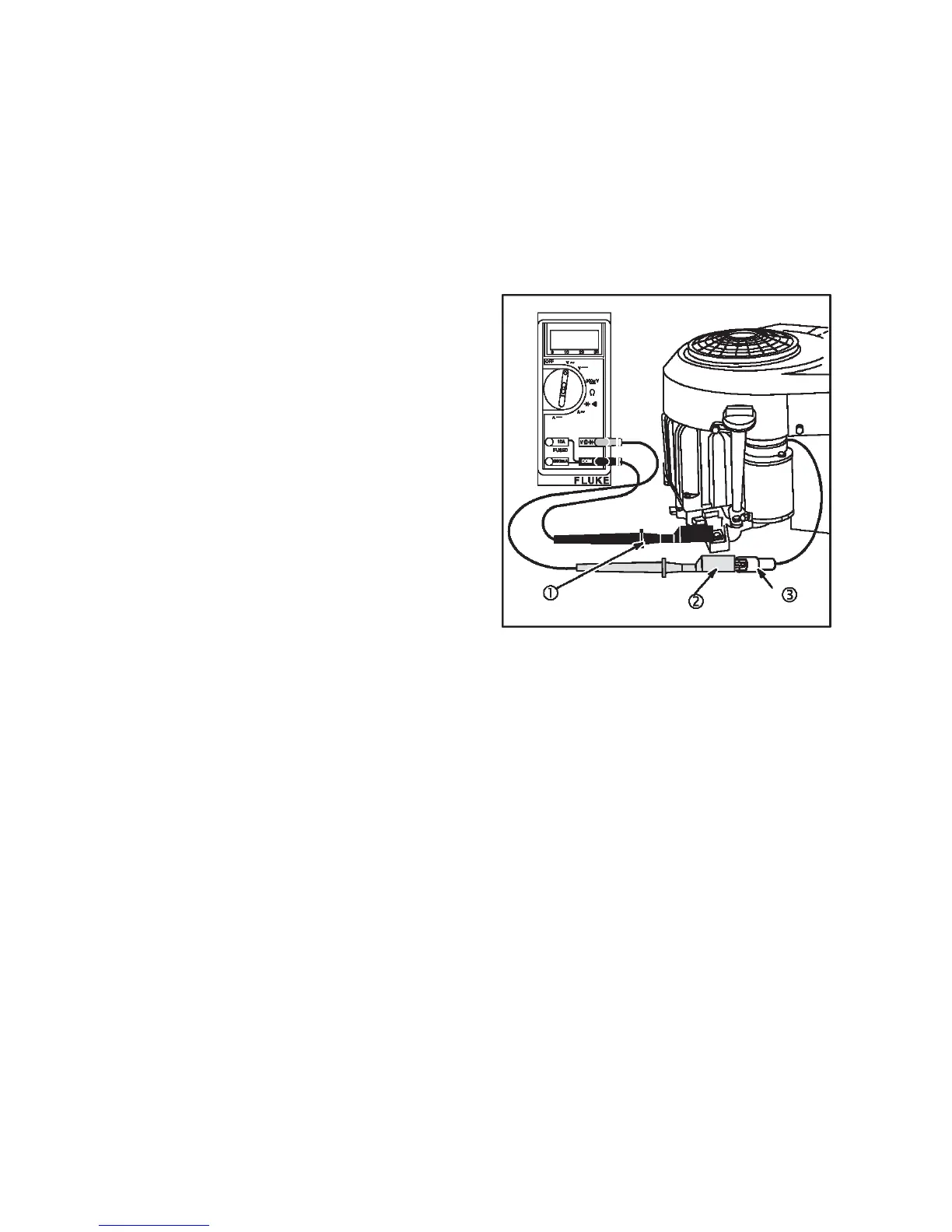

DC Output Test
1. Insert RED test lead int o 1 OA receptacle in meter.
2. Insert BLACK test lead into COM receptacle in meter.
3. Rotate selector to A== (DC AMPS) position.
4. Attach RED test lead clip (1) to DC output pin (6)in connector (4), Fig. 16 . If NO or LOW output is found,
replace stator.
