- 41 -
5.2.10 Adjust Throttle Lever Tension.
a) Stop engine, wait for all moving parts to stop, and remove key.
b) Tension in throttle lever can be adjusted by adjusting the tightness of the
lever pivot bolt, which is located under the console (See Figure 17).

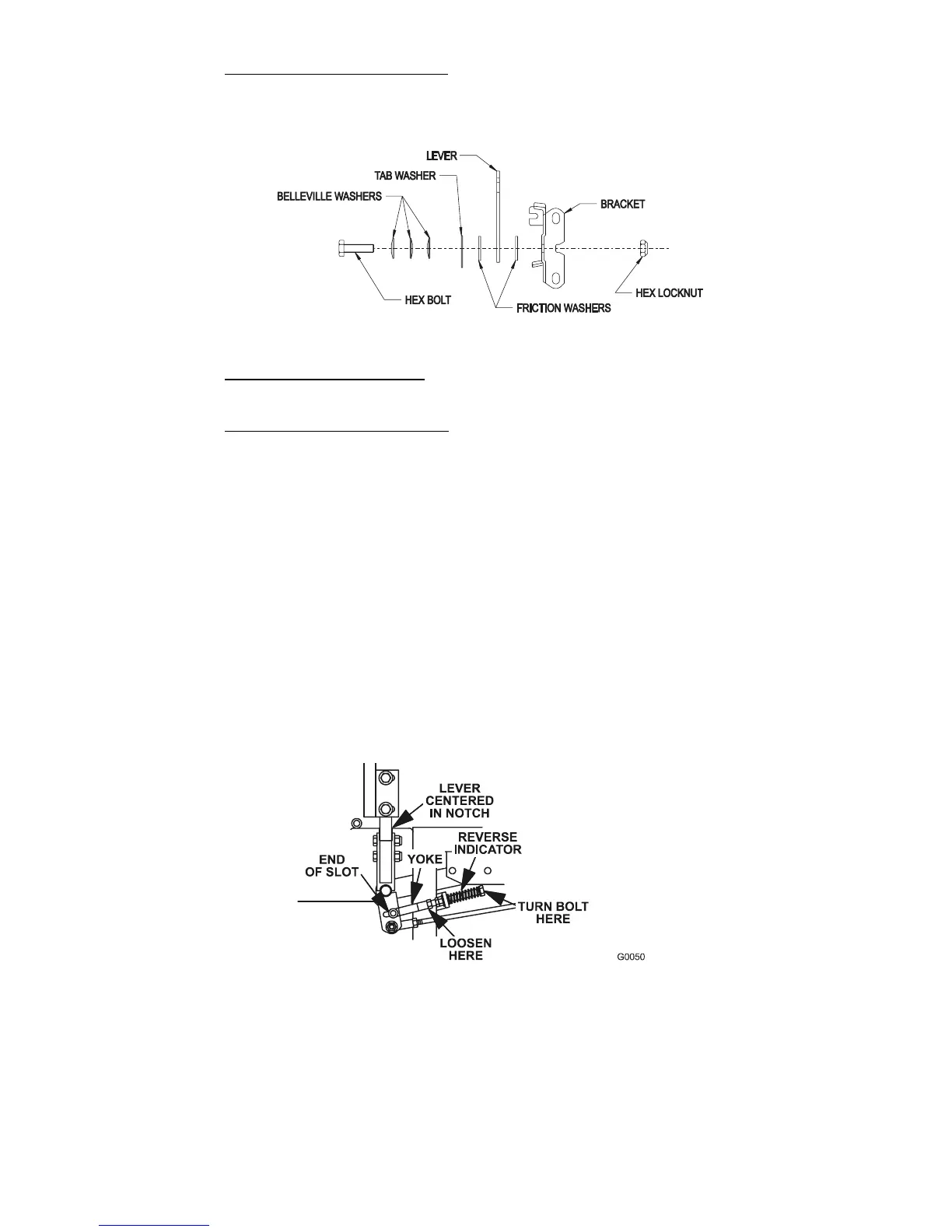

FIGURE 17
THROTTLE TENSION
5.2.11 Electric Clutch Adjustment
:
No adjustment is necessary.
5.2.12 Reverse Indicator Adjustment
:
a) Stop engine, wait for all moving parts to stop, and remove key.
b) Tilt seat forward.
c) Begin with either the left or right motion control lever. Move lever to the
neutral position and pull lever back until the clevis pin (on arm below pivot
shaft) contacts the end of the slot (just beginning to put pressure on spring),
See Figure 18.
d) Check where lever is relative to notch in console (should be centered
allowing lever to pivot outward to the neutral lock position).
e) If adjustment is needed, loosen the nut against the yoke and while applying
slight rearward pressure on the motion control lever, turn the head of the
adjustment bolt in the appropriate direction until lever is centered (keeping
rearward pressure on the lever will keep the pin at the end of the slot and
allow the adjustment bolt to move the lever to the appropriate position).
Tighten lock nut.
f) Repeat on opposite side of unit.
FIGURE 18
REVERSE INDICATOR ADJUSTMENT
