1.6 SAFETY SIGNS
1.6.1 Keep all safety signs legible. Remove all grease, dirt, and debris from safety
signs and instructional labels.
1.6.2 Safety signs must be replaced if they are missing or illegible.
1.6.3 When new components are installed, be sure that current safety signs are affixed
to the replaced components.
1.6.4 New safety signs may be obtained from your authorized Exmark equipment
dealer or distributor or from Exmark Mfg. Co. Inc.
1.6.5 Safety signs may be affixed by peeling off the backing to expose the adhesive
surface. Apply only to a clean, dry surface. Smooth to remove any air bubbles.

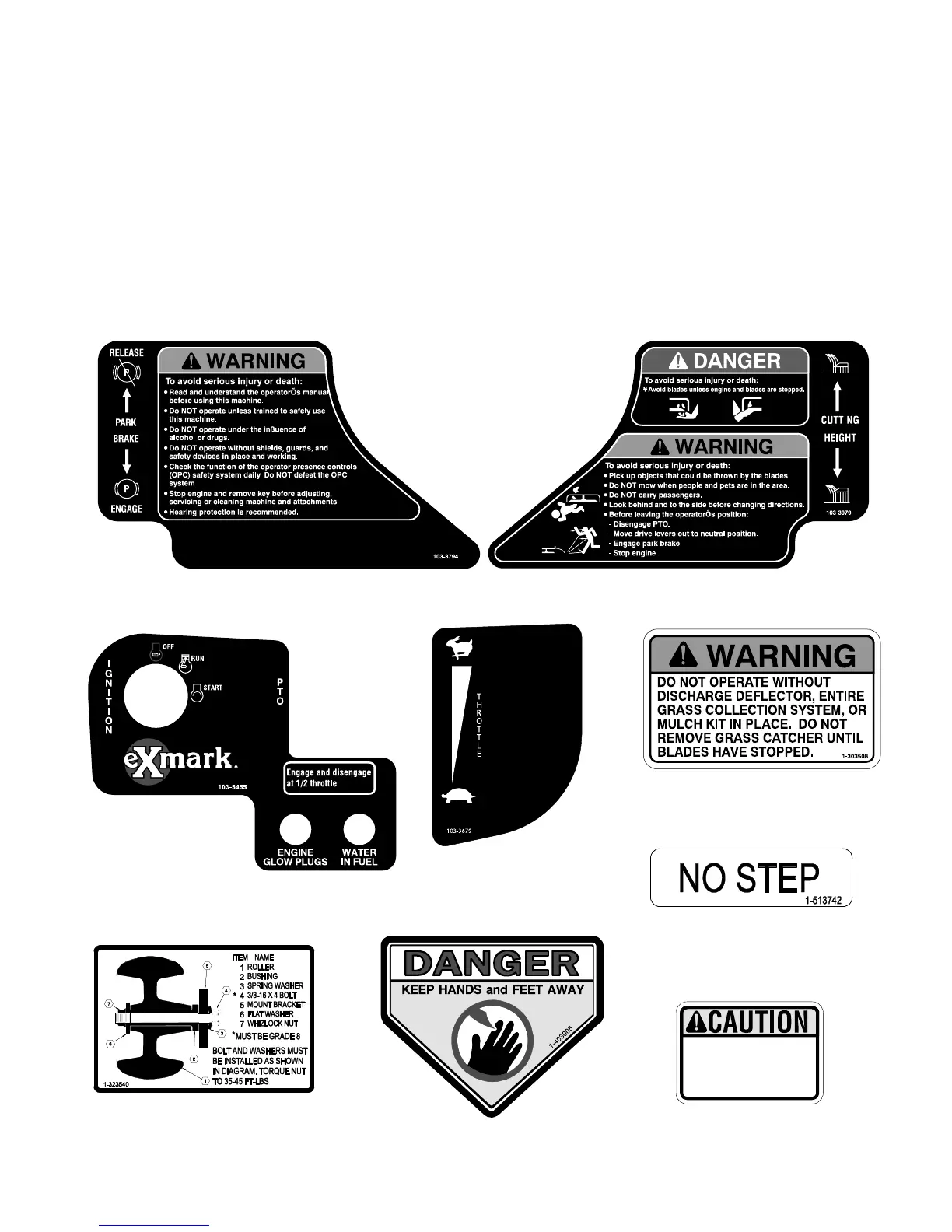

1.6.6 Familiarize yourself with the following safety signs and instruction labels. They
are critical to the safe operation of your Exmark commercial mower.
PART NO. 1-513748
LOCATIONS: Bottom Side
of Floorpan
PART NO. 1-403005
LOCATION: Left and Right Corners
of Mower Deck
PART NO. 1-303508
LOCATION: RH Side on Top
Rear of Mower Deck
Type A Anti-Scalp Rollers –
See Figure 12
PART NO. 1-323540
LOCATION: Left Rear Corner
Top of Mower Deck
PART NO. 1-513742
LOCATION: Top of Mower Deck
Belt Shields, Left and
Right Sides
PART NO. 103-5455
LOCATION: Top Front of RH
Fuel Tank
PART NO. 103-3794
LOCATION: LH Side of Console
PART NO. 103-3979
LOCATION: RH Side of Console
PART NO. 103-3679
LOCATION: Right of Throttle
Control on RH
Fuel Tank
