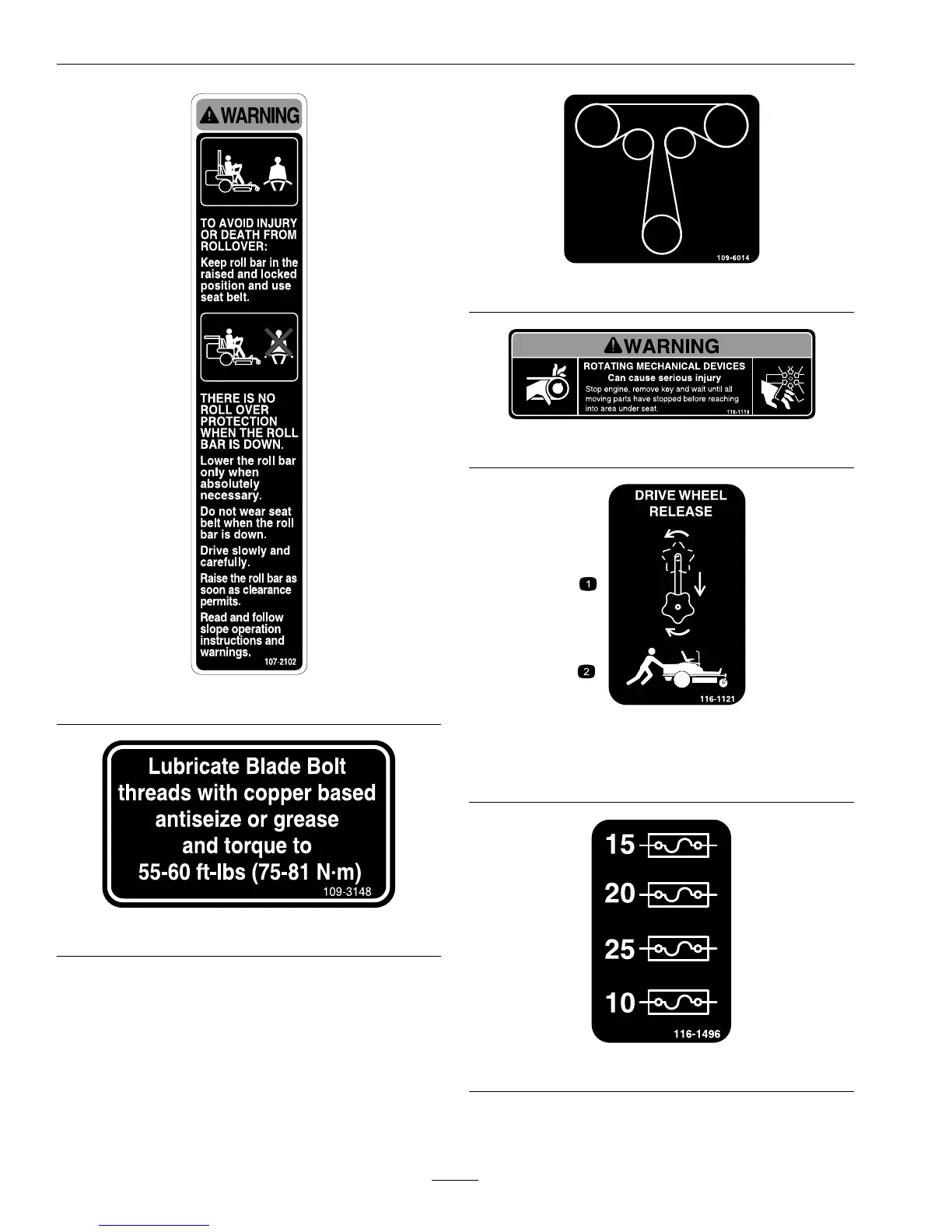

Safety
107-2102
109-3148
109-6014
1
16-1
1
19
1
16-1
121
1.
Rotate
the
drive
release
knob
to
loosen,
slide
the
knob,
and
tighten.
2.
Push
the
machine.
1
16-1496
12
11
13
Table of Contents
Introduction
3
Table of Contents
4
Safety
5
Safety Alert Symbol
5
Safe Operating Practices
5
Maintenance and Storage
8
Safety and Instructional Decals
11
Specifications
15
Model Numbers
15
Systems
15
Dimensions
16
Torque Requirements
17
Product Overview
18
Operation
18
Controls
18
Brake Lever
19
Pre-Start
21
Operating Instructions
21
Starting the Engine
22
Stopping the Engine
23
Driving the Machine
23
Adjusting the Cutting Height
24
Transporting
25
Maintenance
27
Recommended Maintenance Schedule(S)
27
Periodic Maintenance
28
Check Engine Oil Level
28
Check Battery Charge
28
Check Mower Blades
29
Check Safety Interlock System
30
Check Rollover Protections Systems (Roll Bar) Knobs
31
Check Seat Belt
31
Check for Loose Hardware
31
Service Air Cleaner
31
Change Engine Oil
31
Check Hydraulic Oil Level
31
Check Tire Pressures
32
Check Condition of Belts
32
Lubricate Grease Fittings
32
Check Spark Plugs
32
Replace Emissions Air Intake Filter
32
Change Hydraulic System Filter and Fluid
33
Check Spark Arrester (if Equipped)
34
Thread Locking Adhesives
34
Copper-Based Anti-Seize
34
Dielectric Grease
34
Adjustments
35
Deck Leveling
35
Adjusting the Blade Slope
35
Pump Drive Belt Tension
36
Deck Belt Tension
36
Adjusting the Parking Brake
36
Motion Control Handle Adjustment
37
Full Forward Tracking Adjustment
37
Motion Control Linkage Adjustment
38
Adjusting the Seat Ride Suspension
39
Electric Clutch Adjustment
39
Cleaning
40
Clean Engine and Exhaust System Area
40
Remove Engine Shrouds and Clean Cooling Fins
40
Clean Hydro Fan Cooling Fins
40
Clean Debris from Machine
40
Clean Grass Build-Up under Deck
40
Waste Disposal
40
Battery Disposal
41
Troubleshooting
42
Schematics
44
Service Record
49
