Maintenance
Leveling)lowerthantherearbladetip,adjustthe
bladelevelusingthefollowinginstructions:
2.Parkthemachineonalevelsurfaceanddisengage
thebladecontrolswitch.
3.Movethemotioncontrolleversoutwardto
theneutralposition,engagetheparkingbrake,
stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
4.Checktheairpressureofallfourtires.Ifneeded,
adjusttotherecommendedination;referto
CheckingtheTirePressureinDriveSystem
Maintenancesection.
5.Checkandadjusttheside-to-sidebladelevelif
youhavenotcheckedthesetting;refertoDeck
Leveling.
6.Settheheight-of-cutlevertothe3inch(76mm)
position.Placetwo“B”thickblocks(seeBlock
HeightandRakeTableinDeckLeveling)under
therearedgeofthecuttingdeckskirt;oneon
eachsideofthecuttingdeck.Placetwo“ A”thick
blocks(seeBlockHeightandRakeTableinDeck
Leveling)undereachsideofthefrontedgeofthe
deck,butnotundertheanti-scalprollerbrackets.
7.Loosenthelevelingadjustlockingnuts(item1
Figure24)onallfourcornerssothatthedeckis
sittingsecurelyonallfourblocks.Makesurethat
theslackisremovedfromthedeckhangersand
thedeckliftfootleverispushedbackagainstthe
stop,thentightenthefourlevelingadjustlocking
nuts.
8.Carefullyrotatethebladessotheyarefacingfront
torear(
Figure25).
9.Measurefromthetipofthefrontbladetotheat
surfaceandthetipoftherearbladetotheat
surface(Figure25).Ifthefrontbladetipisnot
“R”(seeBlockHeightandRakeTableinDeck
Leveling)lowerthantherearbladetip,adjustthe
frontdeckhanger.

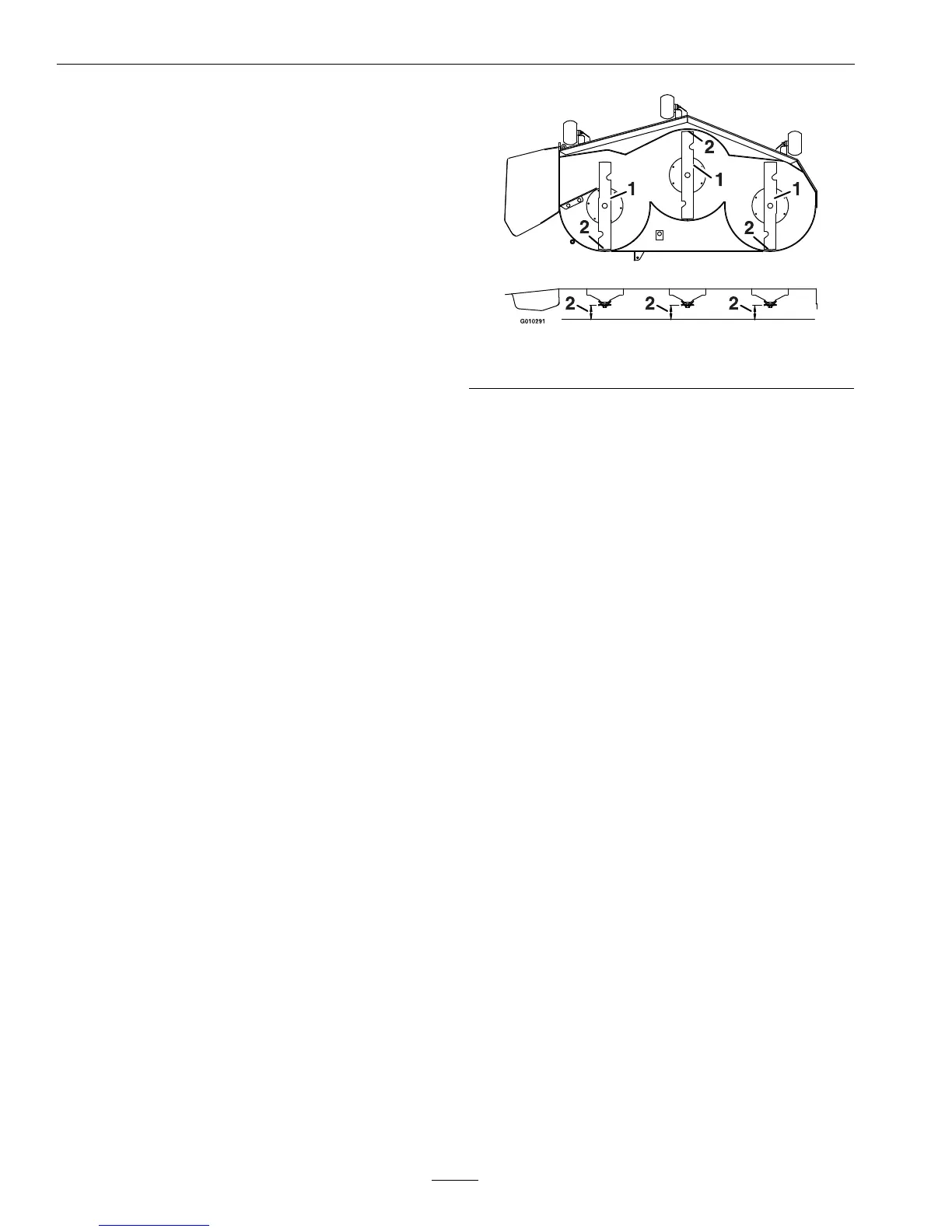

Figure25
1.Bladesfronttorear
2.Measurehere
10.Whenthefront-to-rearbladeslopeiscorrect
checktheside-to-sidelevelofthemoweragain;
refertoDeckLeveling.
PumpDriveBeltTension
Self-tensioning-Noadjustmentnecessary.
DeckBeltTension
Self-tensioning-Noadjustmentnecessary.
AdjustingtheParkingBrake
ServiceInterval:Every500hours
Checktomakesurebrakeisadjustedproperly.This
proceduremustbefollowedaftertherst100hours
orwhenabrakecomponenthasbeenremovedor
replaced.
1.Drivethemachineontoalevelsurface.
2.Disengagethebladecontrolswitch(PTO),move
themotioncontrolleverstotheneutrallocked
positionandsettheparkingbrake.
3.Stoptheengine,waitforallmovingpartstostop,
andremovethekey.
4.Setupthemachinetobepushedbyhand(see
DriveWheelReleaseValvesintheOperation
section).
5.Raisethebackofthemachineupandsupportthe
machinewithjackstands.
