4.4. Thigh length adjustment

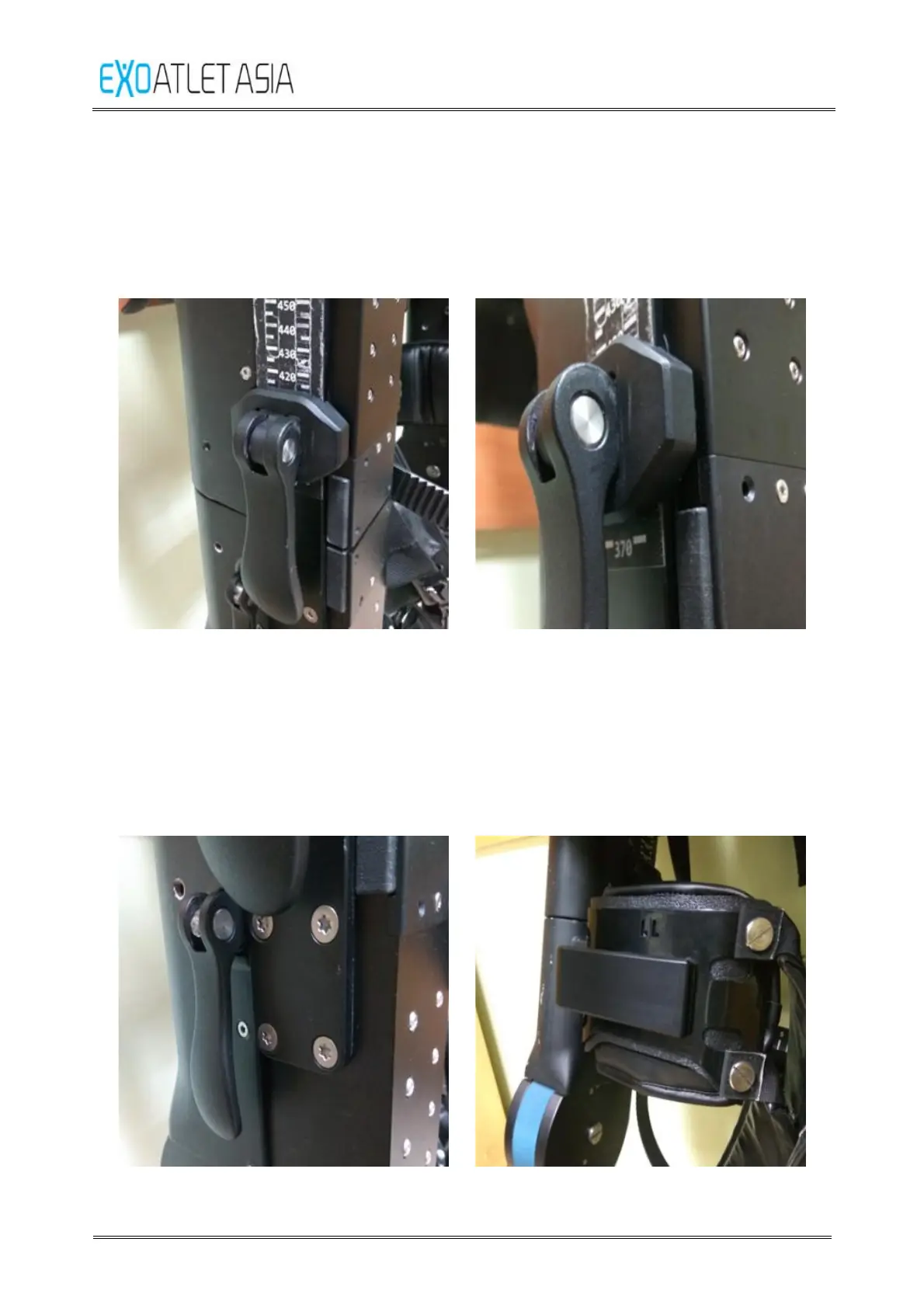

4.4.1. As shown in [Figure 7], Pull out and loosen the cam lever.
4.4.2. As shown in [Figure 8], Adjust sizes by the size lines and push down the cam
lever to fix it.If the lower drive is not positioned right it will be difficult to fix cam
lever.
[Figure
7]
[Figure
8]
4.5. Thigh depth adjustment
4.5.1. As shown in [Figure 9], Pull out and loosen the cam lever.
4.5.2. Adjust sizes by the size lines.
4.5.3. As shown in [Figure 10], Push down the cam lever to fix it.You can adjust the
pressure by rotating cam lever before pushing it down.
[Figure
9]
[Figure
10]
