ExoAtlet ExoAtlet-II - Ankle Joint Angle Adjustment; Height Adjustment of Back

User’s Manual
http://www.exoatletasia.com
ExoAtlet
Ⓡ
II 31 / 84 Ver 1.0 (2019.03.29.)
4.9. Ankle joint angle adjustment

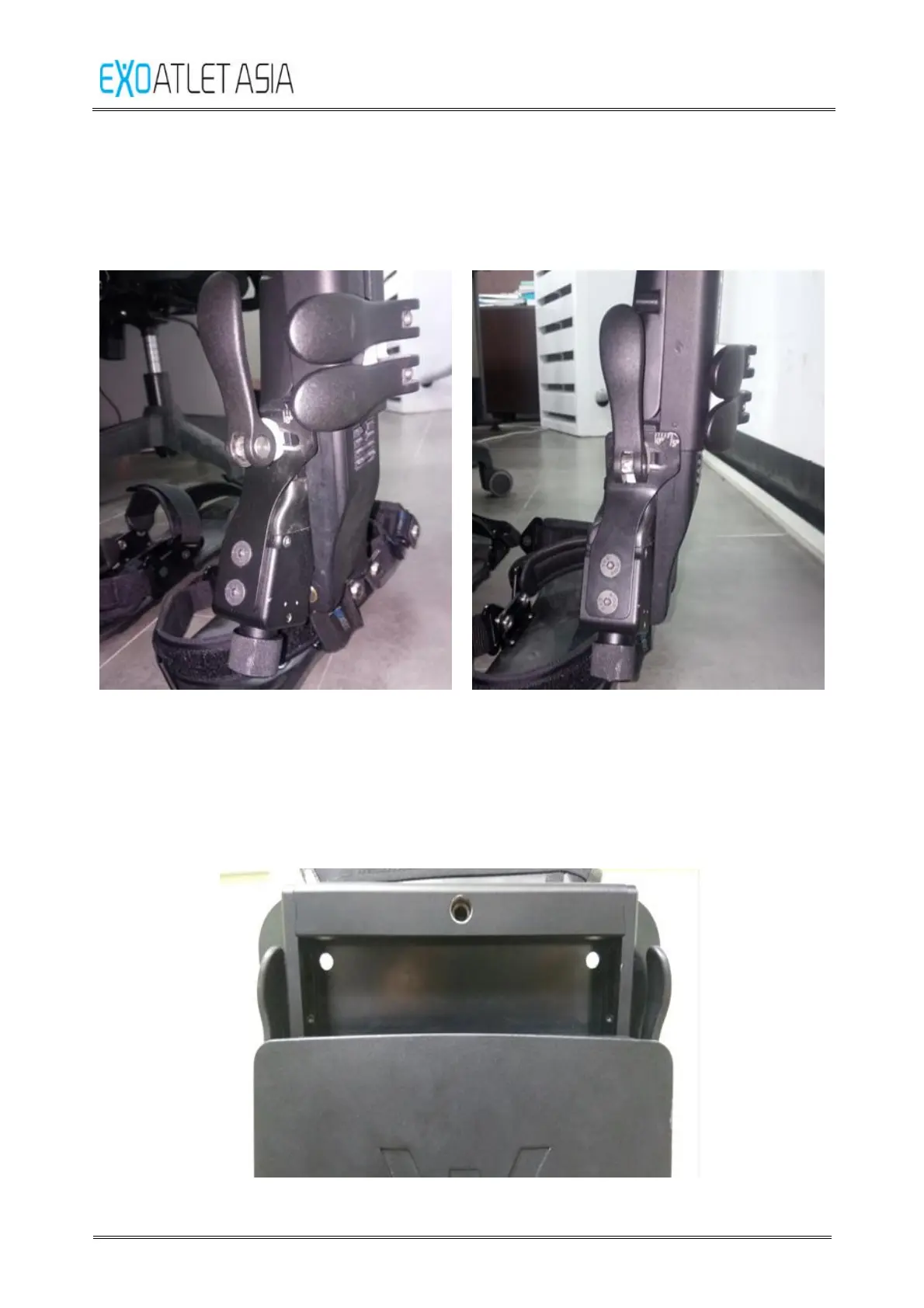

4.9.1. As shown in [Figure 17], Pull out and loosen the cam lever
4.9.2. As shown in [Figure 18], Adjust sizes by the size lines and push down cam lever
to fix it. Repeat the same procedure from the other side.
[Figure
17]
[Figure
18]
Note: it is necessary to adjust both sides similar.
4.10. Height adjustment of back
4.10.1. As shown in [Figure 19], Pull out and loosen two cam levers.
[Figure
19]
