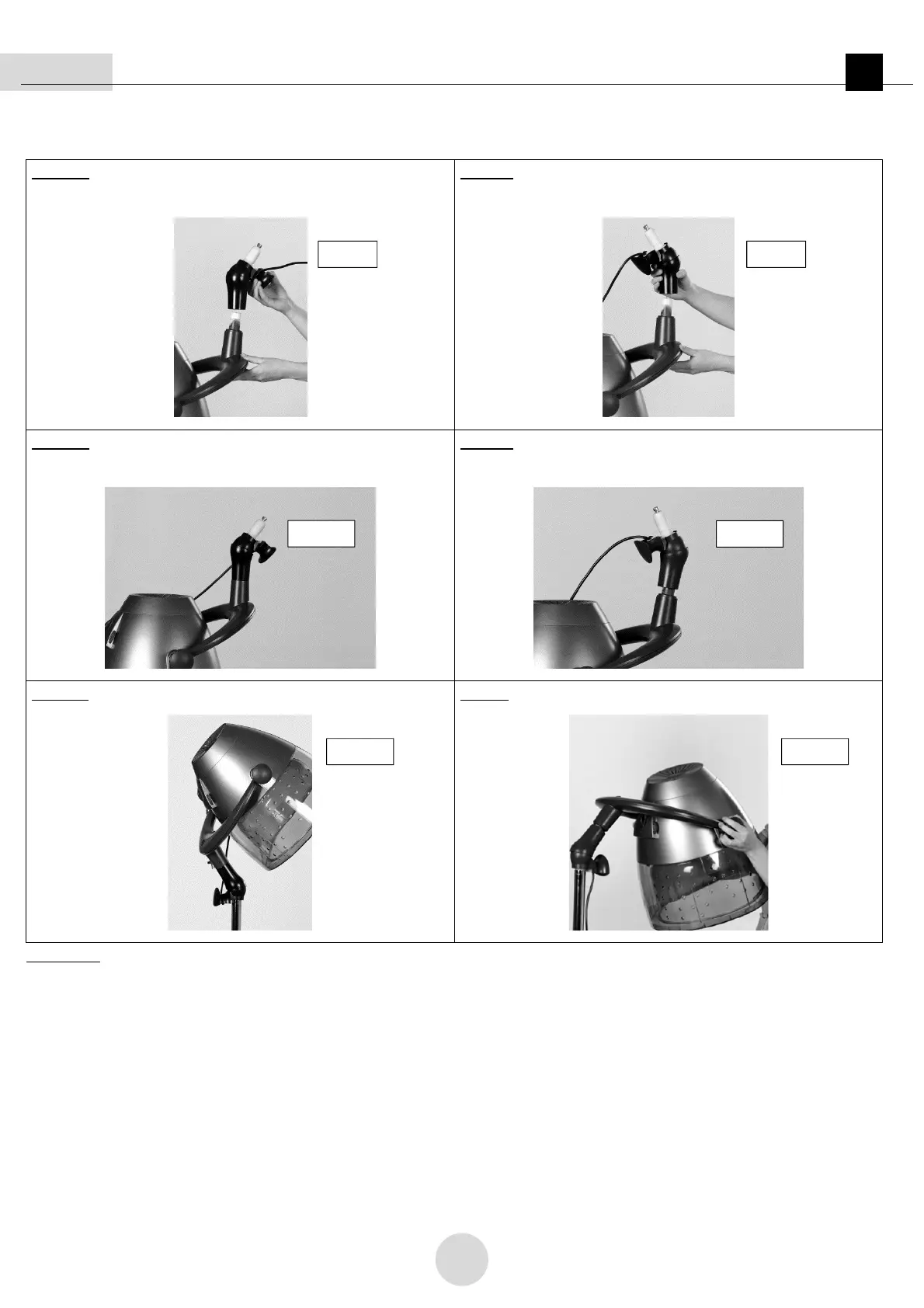

12 Instructions for the correct mounting of the adapter M41
GB
59
While mounting the adapter, the pivot of the yoke must show upwards.
Correct: After mounting the Adapter onto the pivot, the
cable clamp must point away from device.
Wrong: The cable clamp is facing the device.
Correct: The adapter can be easily mounted to
Fingerandsnaps into the final position just as easily.
Wrong: The adapter has to be mounted onto the pivot by
high force and doesn't easily snap into the final position.
Correct operating position
Wrong operating position
Attention: Only the technical customer service is able to remove the connection between adapter and device after the
mounting.
Correct Wrong
Correct
Wrong
Correct Wrong
