exone go - System Interfaces and Communication Modules; Communication Modules and M.2 Slots; Product Features, Environmental, and Physical Specs; Model Features, Environmental, and Power Specs

32
English

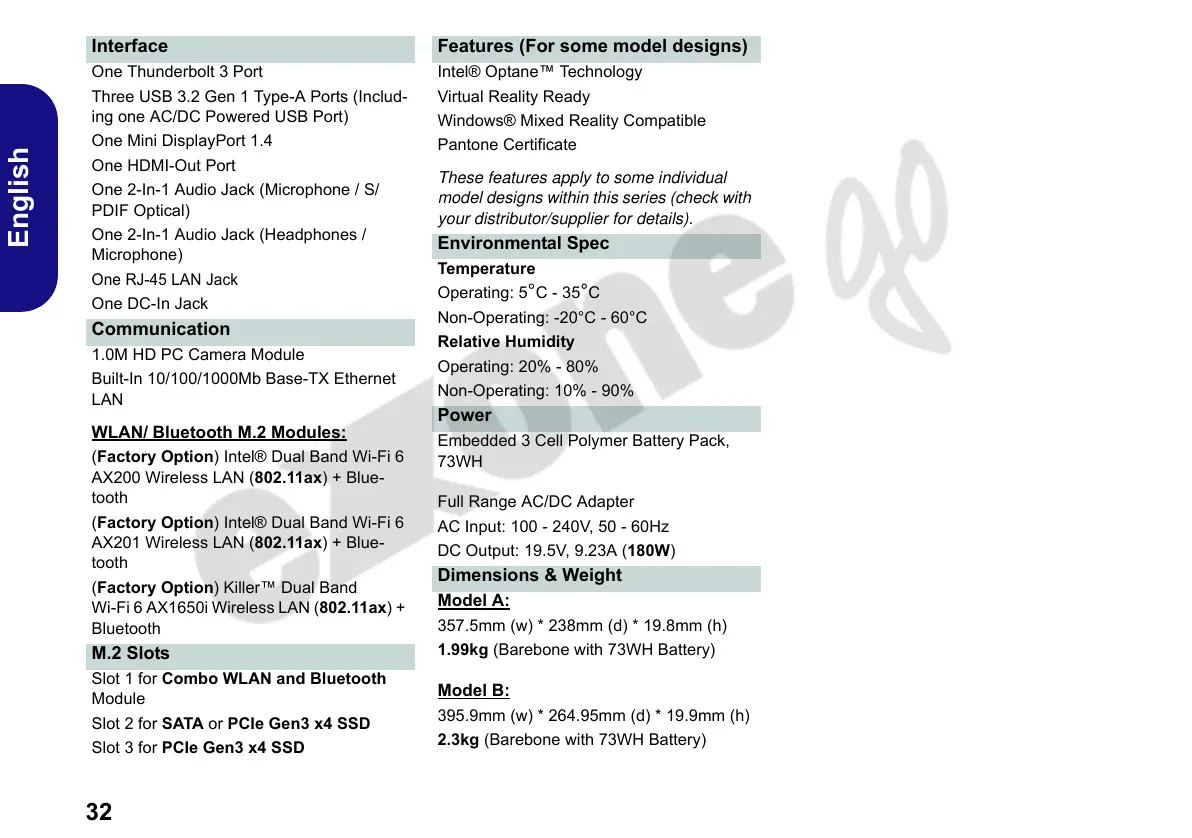

Interface
One Thunderbolt 3 Port
Three USB 3.2 Gen 1 Type-A Ports (Includ-
ing one AC/DC Powered USB Port)
One Mini DisplayPort 1.4
One HDMI-Out Port
One 2-In-1 Audio Jack (Microphone / S/
PDIF Optical)
One 2-In-1 Audio Jack (Headphones /
Microphone)
One RJ-45 LAN Jack
One DC-In Jack
Communication
1.0M HD PC Camera Module
Built-In 10/100/1000Mb Base-TX Ethernet
LAN
WLAN/ Bluetooth M.2 Modules:
(Factory Option) Intel® Dual Band Wi-Fi 6
AX200 Wireless LAN (802.11ax) + Blue-
tooth
(Factory Option) Intel® Dual Band Wi-Fi 6
AX201 Wireless LAN (802.11ax) + Blue-
tooth
(Factory Option) Killer™ Dual Band
Wi-Fi 6 AX1650i Wireless LAN (802.11ax) +
Bluetooth
M.2 Slots
Slot 1 for Combo WLAN and Bluetooth
Module
Slot 2 for SATA or PCIe Gen3 x4 SSD
Slot 3 for PCIe Gen3 x4 SSD
Features (For some model designs)
Intel® Optane™ Technology
Virtual Reality Ready
Windows® Mixed Reality Compatible
Pantone Certificate
These features apply to some individual
model designs within this series (check with
your distributor/supplier for details).
Environmental Spec
Temperature
Operating: 5
°C - 35°C
Non-Operating: -20°C - 60°C
Relative Humidity
Operating: 20% - 80%
Non-Operating: 10% - 90%
Power
Embedded 3 Cell Polymer Battery Pack,
73WH
Full Range AC/DC Adapter
AC Input: 100 - 240V, 50 - 60Hz
DC Output: 19.5V, 9.23A (180W)
Dimensions & Weight
Model A:
357.5mm (w) * 238mm (d) * 19.8mm (h)
1.99kg (Barebone with 73WH Battery)
Model B:
395.9mm (w) * 264.95mm (d) * 19.9mm (h)
2.3kg (Barebone with 73WH Battery)
