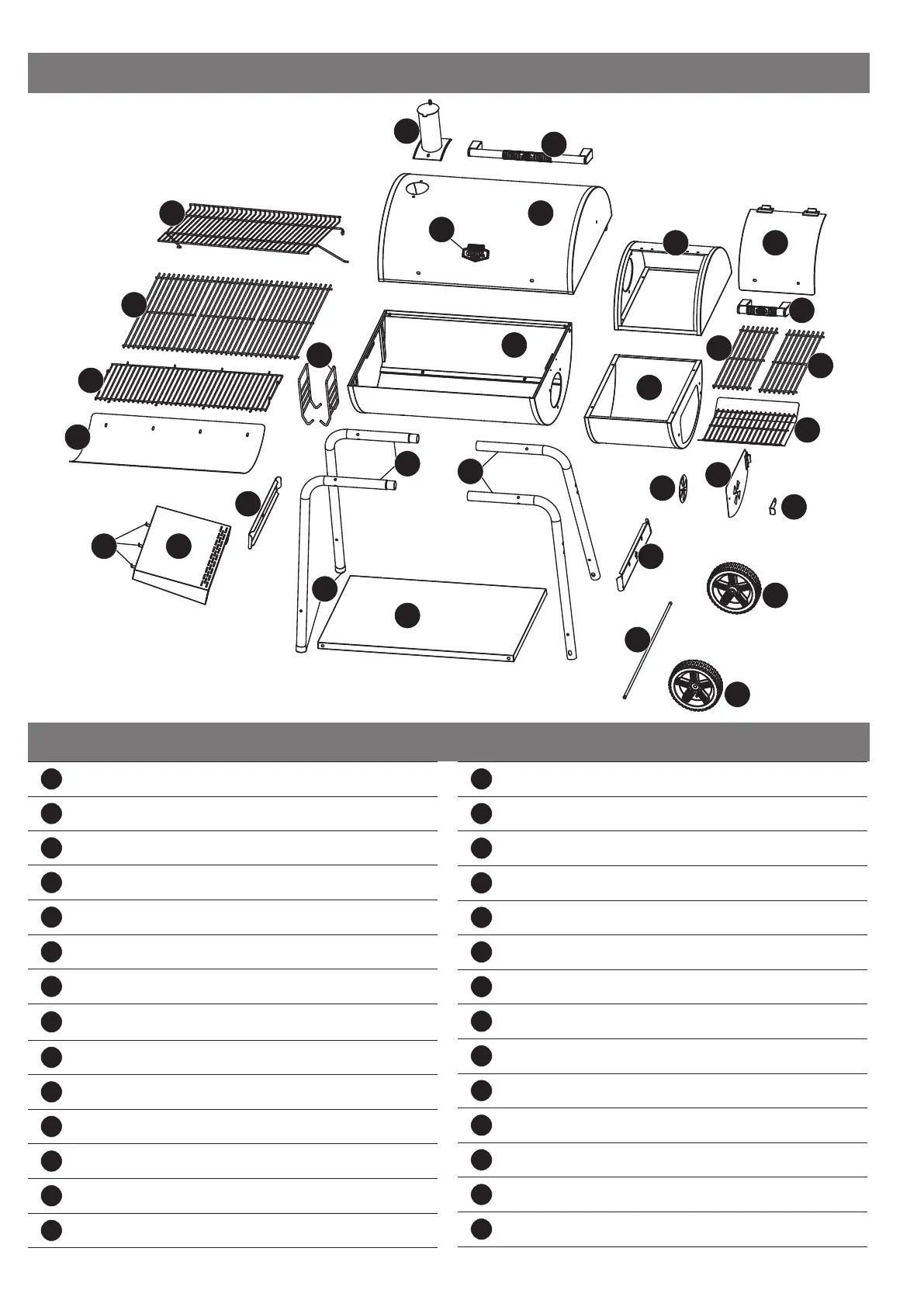

EXPERT GRILL CBC2335W - Expanded View and Parts List; Expanded View of Grill Components; Parts List with Identification Numbers

4
Expanded View
1
Main Lid C2335-010
2
Brand Plate* C2335-020
3
Smoke Stack C2230-010
4
Main Lid Handle C2335-030
5
Main Grill Body C2335-040
6
Warming Rack C2335-050
7
Cooking Grid (3) C2335-060
8
Charcoal Grid C2335-070
9
Charcoal Grid Support C2335-080
10
Charcoal Grid Hanger (2) C2230-080
11
Side Lid - A C2335-090
12
Side Lid - B C2335-100
13
Side Lid Handle C2335-110
14
Side Grill Body C2335-120
15
Side Cooking Grid (2) C2335-130
16
Side Charcoal Grid Assembly C2335-140
17
Side Air Vent B0105-C00
18
Side Grill Body Door C2335-150
19
Door Lock C2335-160
20
Side Shelf C2335-170
21
Hook (3)* B0504-AWM
22
Leg Brace (2) C2303-090
23
Long Leg (2) C2303-100
24
Bottom Shelf C2335-180
25
Short Leg (2) C2303-110
26
Axle C2335-190
27
Wheel (2) B0302-0PA
28
Long Leg Cap (2)* B0302-020
* Pre-assembled
Parts List
2
1
7
3
8
9
4
5
6
10
20
11
21
12
22
13
15
23
14
16
17
19
18
24
25
26
22
27
28
27
15
