Extech Instruments 380193 User Manual

380193-en-GB_V2.6 8/16
3

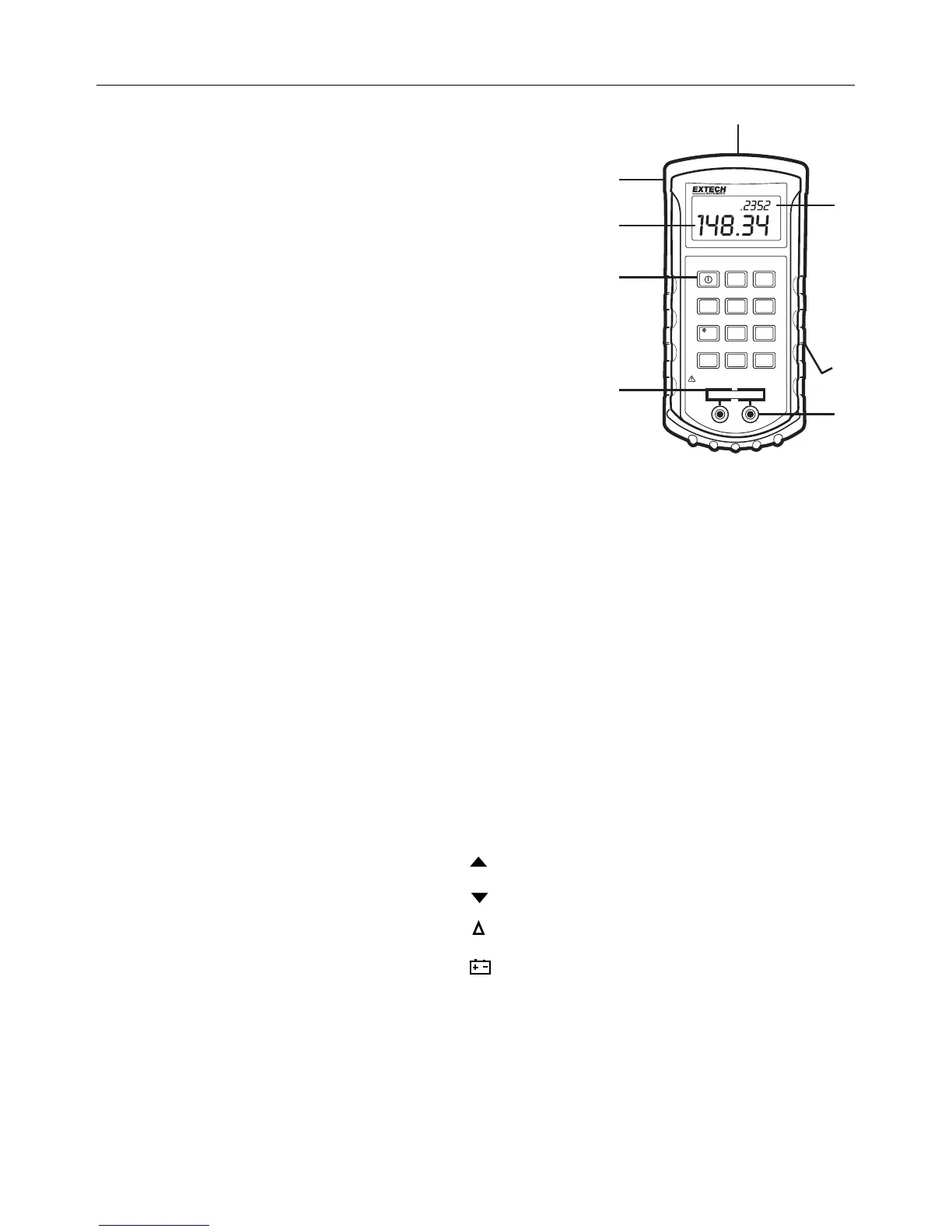

METER DESCRIPTION
1. Q/D/R display
2. L/C/R display
3. Keypad
4. Test fixture
5. Input jacks
6. External power input
7. Protective holster
8. Battery compartment (rear)
Display Symbols and Annunciators
APO Auto Power Off 1KHz 1kHz test frequency
R Recording mode active 120Hz 120Hz test frequency
MAX Maximum reading M Mega (10
6
)
MIN Minimum reading K kilo (10
3
)
AVG Average reading p pico (10
-12
)
AUTO AutoRanging active n nano (10
-9
)
H Data hold active  micro (10
-6
)
SET SET mode m milli (10
-3
)
TOL Tolerance mode H Henry (inductance units)
PAL Parallel equivalent circuit F Farad (capacitance units
SER Series equivalent circuit  Ohms (resistance units)
D Dissipation factor Upper limit
Q Quality factor Lower limit
R Resistance Relative mode
L Inductance Low battery
C Capacitance % Tolerance (percentage)
APO
AUTO
PA L
c
D
1kHz
F
µ
DO NOT APPLY VOLTAGE TO TERMINALS
DISCHARGE CAPACITOR BEFORE TESTING
+–
AUTO-POWER OFF
REL
Hi / Lo
LIMITS
TOL
789
>2sec
HOLD
MIN
MAX
SET
456
RANGE
L/C/R Q/D/R
123
-0 ENTER
LCR Meter 380193
FREQ
PAL
SER
6
7
1
2
3
4
5
8

Extech Instruments 380193 Specifications

General

Brand	Extech Instruments
Model	380193
Category	Measuring Instruments
Language	English
