Model 382152 Ver. 1.6 April 2001
Specifications
Measurements Earth ground resistance (in 3 ranges) and AC voltage to 200V
Display 3-1/2 digit (1999 count) LCD with LED test status indicator
Data hold Freezes latest reading on the LCD display
Automatic Test 3 minute test timer with automatic power down
Measurement trigger Push-button single reading or 3 minute automatic test lock
Test lead length Red: 50' (15m), Yellow: 33' (10m), Green: 16' (5m)
Power supply Six 1.5V 'AA' batteries (included)
Low battery indication LCD displays 'B' icon
Over-range indication '1' displayed as most significant digit
Safety IEC-1010 (EN-61010) category III
Weight 27.7oz. (800g) with batteries
Dimensions 6.42 x 3.94 x 2" (163 x 100 x 50 mm)
Supplied accessories Test leads (3), auxiliary earth bars (2), six 'AA' batteries,
and carrying case
Range Specifications
Measurement Range Resolution Accuracy
Earth Ground Resistance
2mA test current (820Hz)
20, 200, 2000Ω
0.01Ω, 0.1Ω, 1Ω
± (2% rdg + 2 d)
Earth Voltage
Frequency: 40 to 500Hz
0 to 200VAC
0.1V ± (1% rdg +2d)

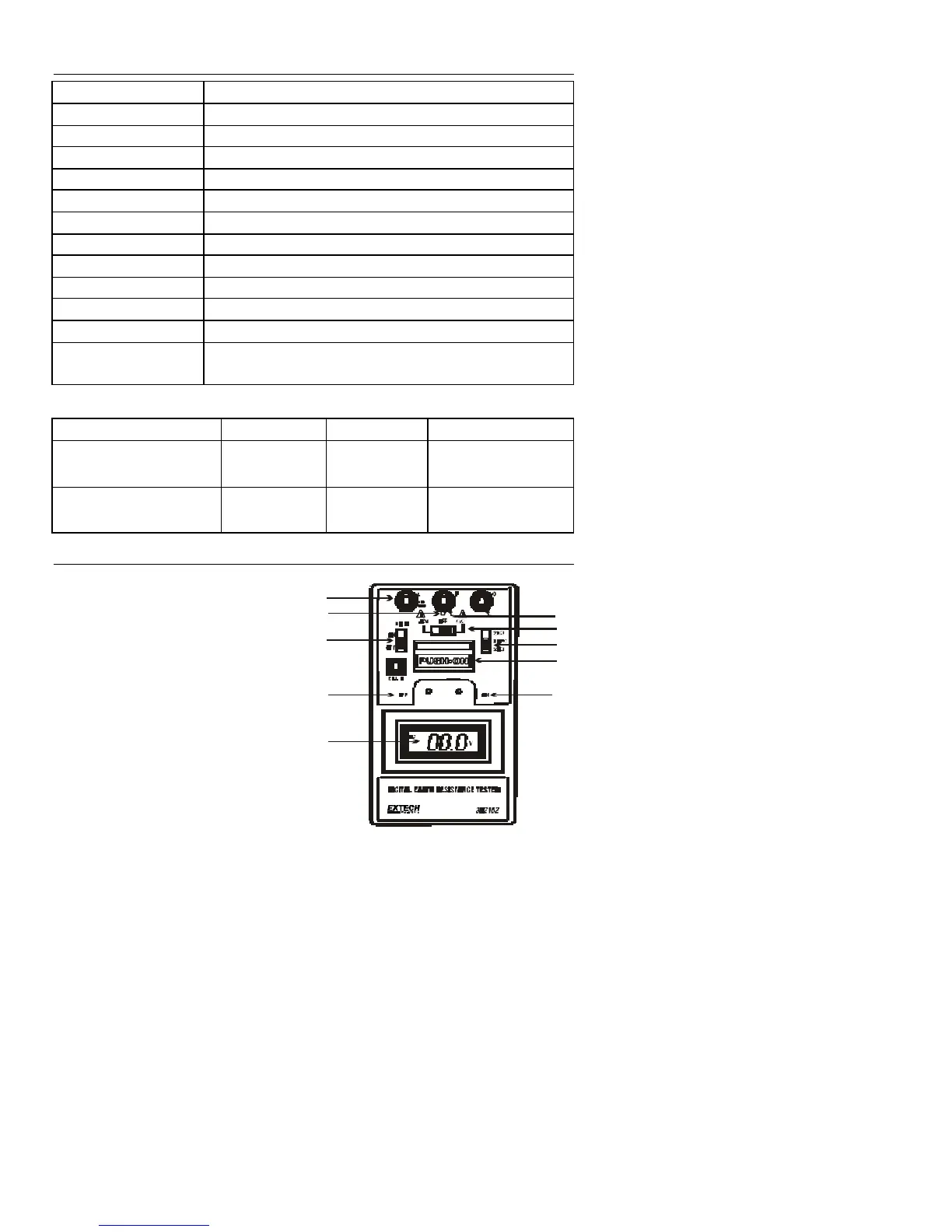

Meter Description
1. Earth ground test lead terminal
2. Test status LED
3. Data Hold switch
4. Automatic 3-min. test OFF button
5. LCD Display
6. C1, P1 Aux bar test lead terminals
7. Function select switch
8. Resistance range select switch
9. Push-button momentary test
10. Automatic 3-min. test ON button
1
2
3
4
5
6
7
8
9
10
