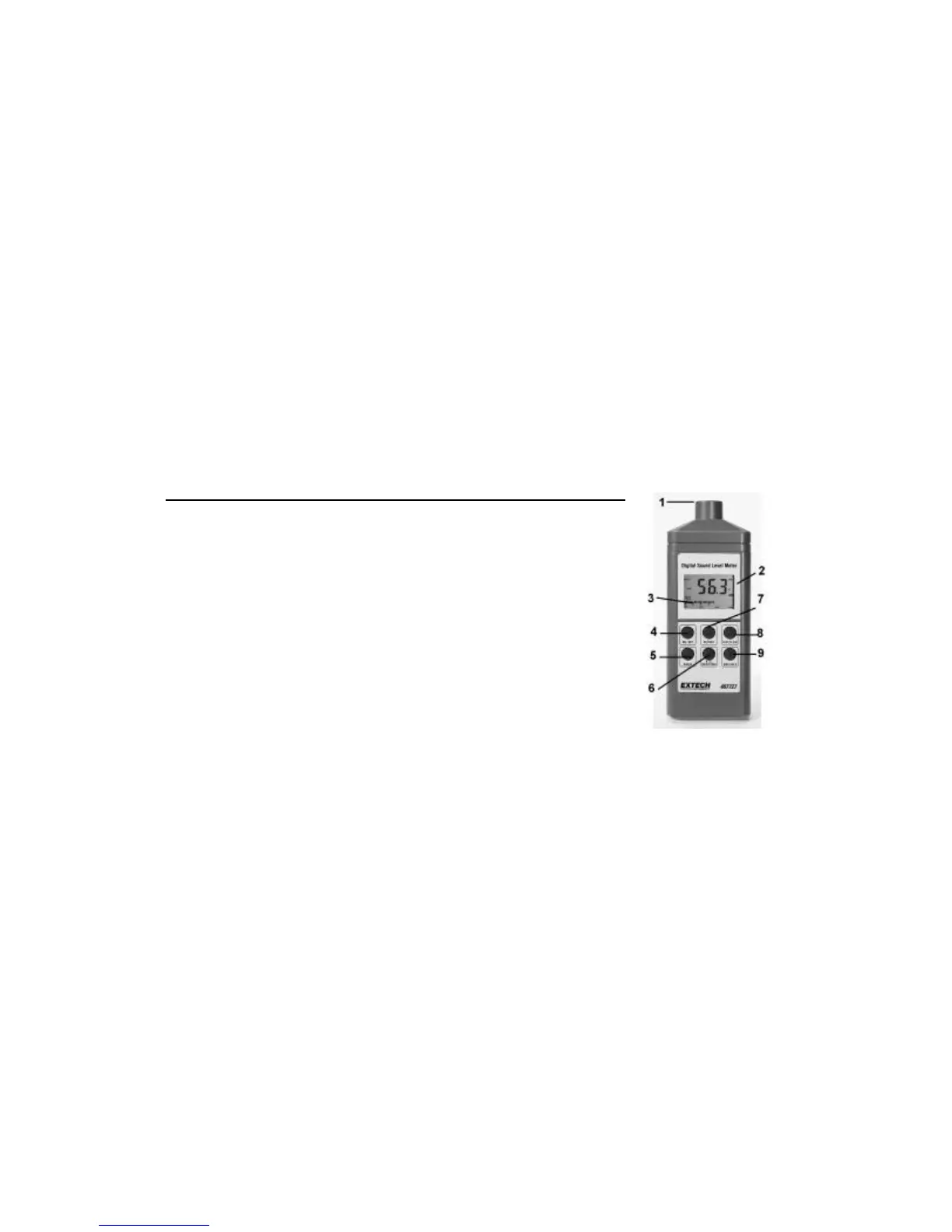

Front Panel Description
1 Microphone
2 LCD Display
3 Analog Bargraph Display
4 ON/OFF key
5 Range key
6 A/C Weighting selection key
7 Min/Max Record key
8 Fast/Slow selection key
9 Maximum Hold activation key
Note: Battery compartment and Tripod mount are on the rear of the meter.
The Analog output jack is located on the left side of the meter.
