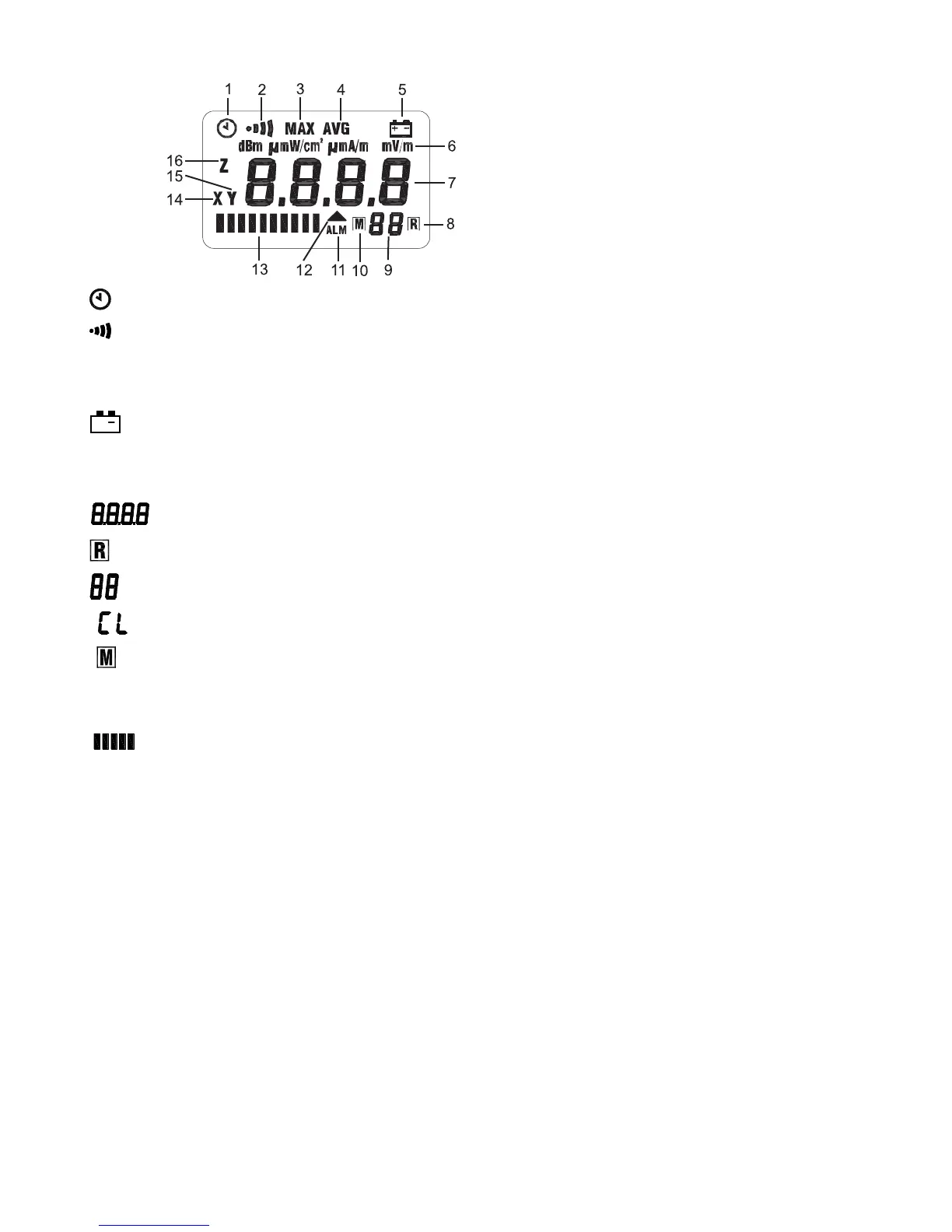

4-2 LCD display description
(1).
: Auto power off function on / off.
(2).
: Audible sound function on / off.
(3). MAX: Maximum measured value displayed.
MAX AVG: Maximum average value displayed.
(4). AVG: Average measured value displayed.
(5).
+
: Low battery indication.
(6). Units : mV/m and V/m : Electric field strength.
μA/m and mA/m : Magnetic field strength.
μW/m
2
, mW/m
2
, W/m
2
, μW/cm
2
and mW/cm
2
: Power density
(7).
: Measured value displayed as per selected mode and selected units.
(8).
: Manual data memory mode indication.
(9).
: Manual data memory address number (1~99).
: The manual data memory clear mode.
(10).
: Stored measured value to memory indication.
(11). ALM: Alarm function on / off or alarm setting indication.
(12). ▲: Displays when the alarm function is on and the instantaneous measured value
exceeds the limit value indication.
(13).
: Analog bargraph of each axis (X,Y or Z) measured dynamic range indication
for observing trends.
(14). X: X axis measured value displayed.
(15). Y: Y axis measured value displayed.
(16). Z: Z axis measured value displayed.
