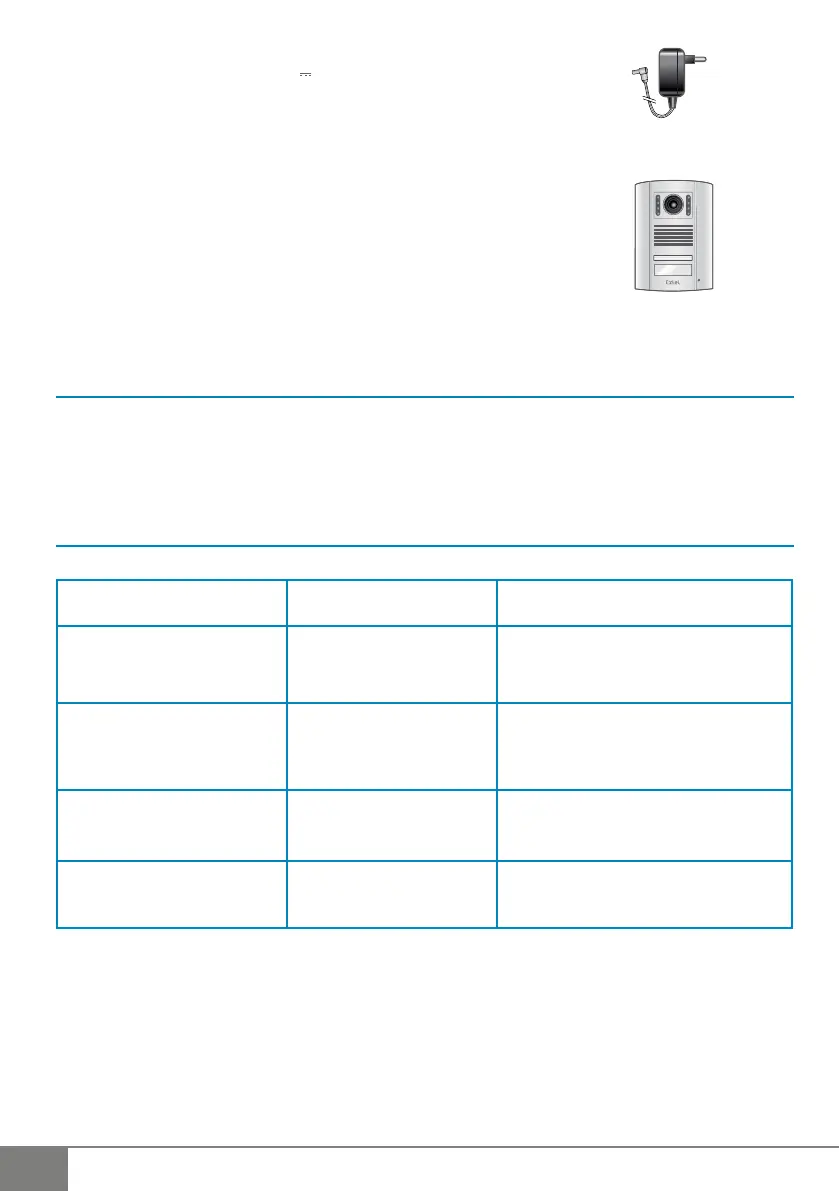

b. Power supply
• Adaptor 100-240 V∼, 50/60Hz ; 17 V , 1.5A
If the power supply cable has to be cut, ensure that the colour coding
of the wires is maintained when reconnecting.
c. Camera (PL QUATTRO
2
)
• Reference: 820277
• C-MOS colour video camera: 512 (H) x 582 (V)
• Viewing angle: H 102° V 75°
• Rotating lens
• Sensitivity: 3 Lux
• Operating temperature (approximate): -10°C to +45°C.
• Protection index: IP44
• Measurements with shield (mm): 160 x 120 x 40
8 . OPTIONS
• All Extel electric catches
• All Extel electric locks
• All Extel mechanisms
• Power supply MODULO
9 . TECHNICAL ASSISTANCE - GUARANTEE
Problems Possible Causes Remedies
•
The monitor doesn’t light up
•
No power is reaching the
monitor
•
Check that the adaptor plug is correctly
pushed home.
•
Poor image and/or sound
•
Installation location
•
Check that the cables used are the correct
thickness and that the videophone connec-
tion cables are not in the same cable sheath
as 230 V cables.
•
Image too bright
•
Position of the video camera
•
Do not point the video camera directly
at the sun or at reflecting surfaces.
•
Blue screen, no chime
•
Installation
•
The wires connecting the monitor and
the street unit (1 and 2) have been swap-
ped.
If required, our technical site is at your disposal: www.c-extel.com
The latest version of the instructions in colour is downloadable from: www.c-extel.com
