CHAPTER 20
PAGE 4
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
Metric thread size (M8=8 mm)
and Lenght (042=42mm/
1.65 inch)

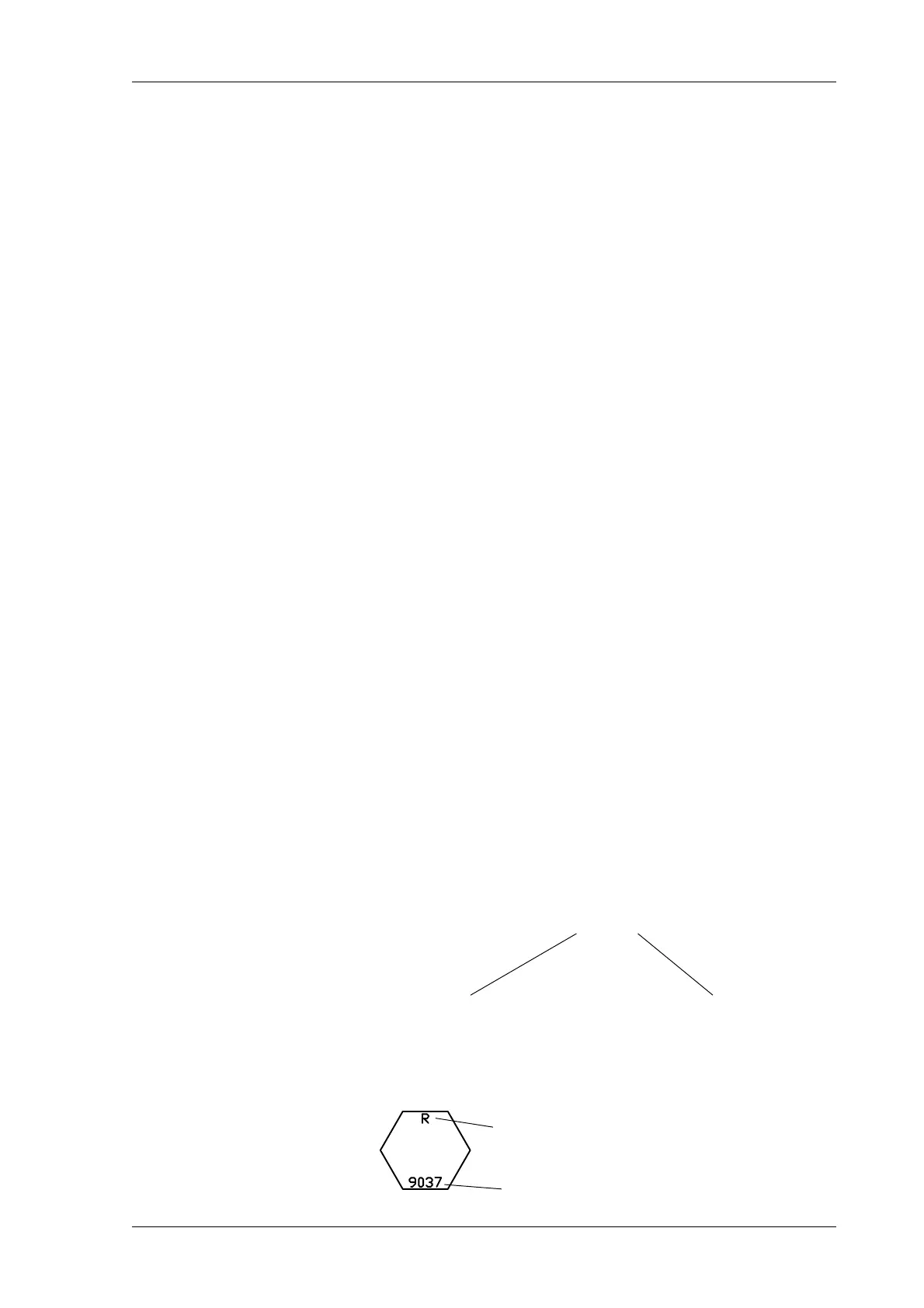

Bolt Head Identification
Bolt Head:
LN Specification
Letter (R,L,P,H = Identification of
Manufacturer)
20-10-00 STANDARD PRACTICES AIRFRAME
20-10-01 Type of Bolts
For the Extra 200, LN-bolts (LN="Luftfahrt Norm"), AN-
bolts (AN="Army/Navy") and DIN-bolts (DIN="Deutsche
Industrie Norm") are used. The type of bolt can be identified
by the designation on bolt head and by the surface treatment.
LN-Bolts
Hex head LN 9037, LN 9038 K and LN 9355 aircraft bolts
are made of high-strength type 1.7220.5 alloy steel. The
bolts are centerless ground, threaded after heat treatment
and cadmium plated per specification LN 9368-3000.2.
Bolts according LN 9037 are standard aircraft bolts with
undrilled shank. The specification LN 9355 indicates bolts
with shank drilled for cotter pin. The specification LN 9038
K indicates bolts with drilled head for safety wire and a shank
up to the head.
The adding numbers after the dash of bolt spec. indicates the
dimensions of the bolt. These numbers are not marked on the
head of the LN bolt. Measure the diameter and length to
specify the type dimension of the LN bolt. The length of LN
aircraft bolt is measured from under the head to the end of
the shank.
Example: LN 9037-08042
