CHAPTER 20
PAGE 5
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
AN-Bolts
Hex head AN aircraft bolts are made of high-strength type
4037 or 8740 alloy steel. The bolts are centerless ground,
threaded after heat treatment and cadmium plated per speci-
fication QQ-P-416A, Type II, Class 3.
For the Extra 200 bolts with shank drilled for cotter pin or
drilled head for safety wire are used. The adding letter "A"
after the dash number specifies bolts with undrilled shank.
For bolts with drilled head a letter "H" is added after the AN
number. The length of AN aircraft bolts is measured from
under the head to the end of the shank.
Example: AN 3 - 5A

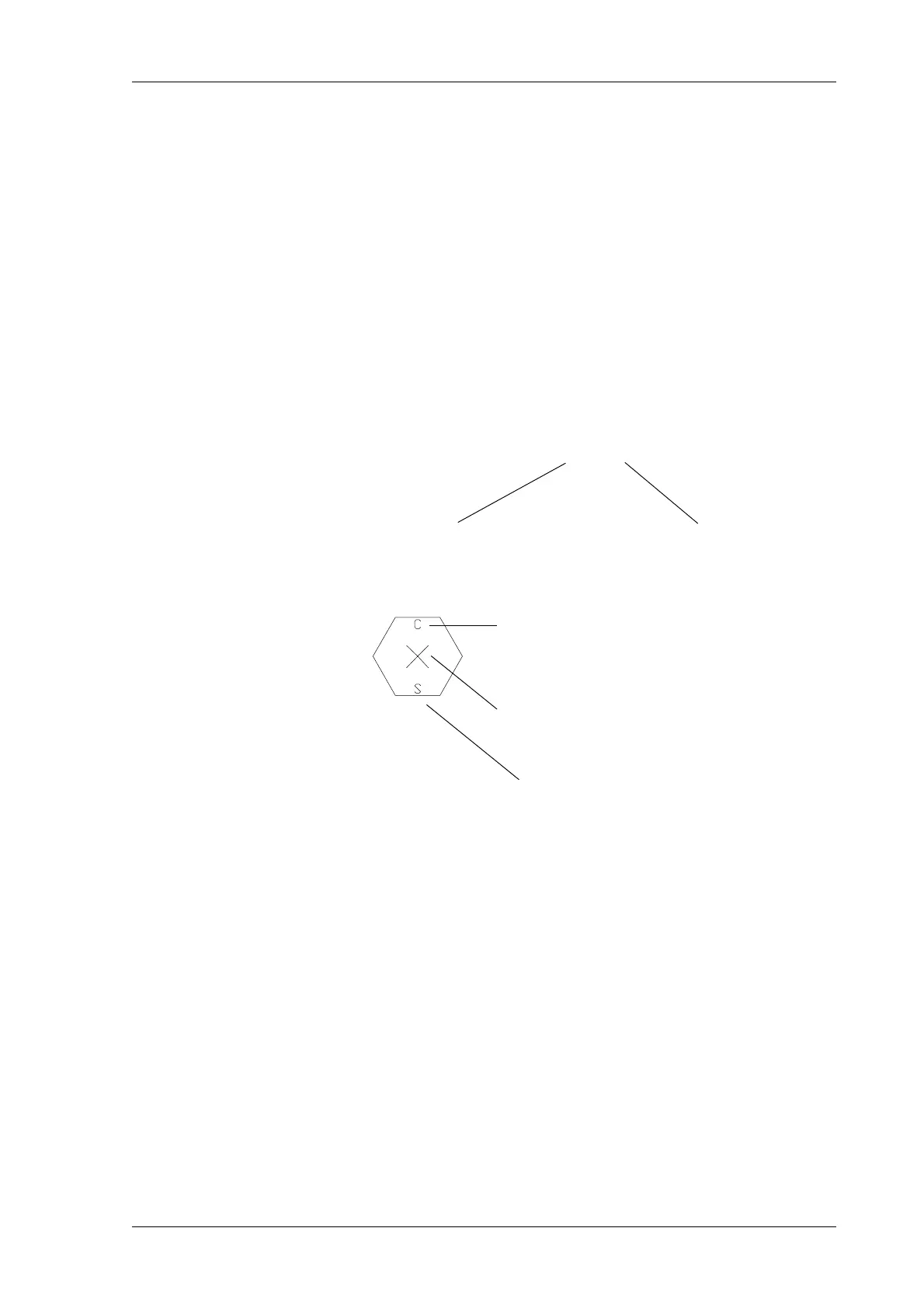

Bolt Head Identification AN hex head bolt
Diameter
3
/
16
" (4.8 mm) Length
5
/
8
" (15.9 mm)
Undrilled shank
DIN-Bolts
Hex head DIN 931, DIN 933 and hex socket head DIN 912
bolts are standard bolts made of steel with undrilled shank.
The surface treatment is chromatized yellow.
Unlike the DIN 931 and DIN 912 the shank of a DIN 933 bolt
goes up to the head. The numerical code shown on the head
of a DIN bolt specifies the strength type. Also, most bolts
will bear a wide variety of finitials or symbols which identify
the manufacturer. Measure the diameter and length to specify
the type dimension of the DIN bolt. The length of DIN bolt
is measured from under the head to the end of the shank.
ST
ANDARD PRACTICES AIRFRAMEANDARD PRACTICES AIRFRAME
Type of Bolts
Letter (also adjected)
Cross (Alloy Steel)
Letter (Identification of Manufacturer,
not always given.)
