CHAPTER 25
PAGE 4
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
FLIGHT COMP
ARTMENTS

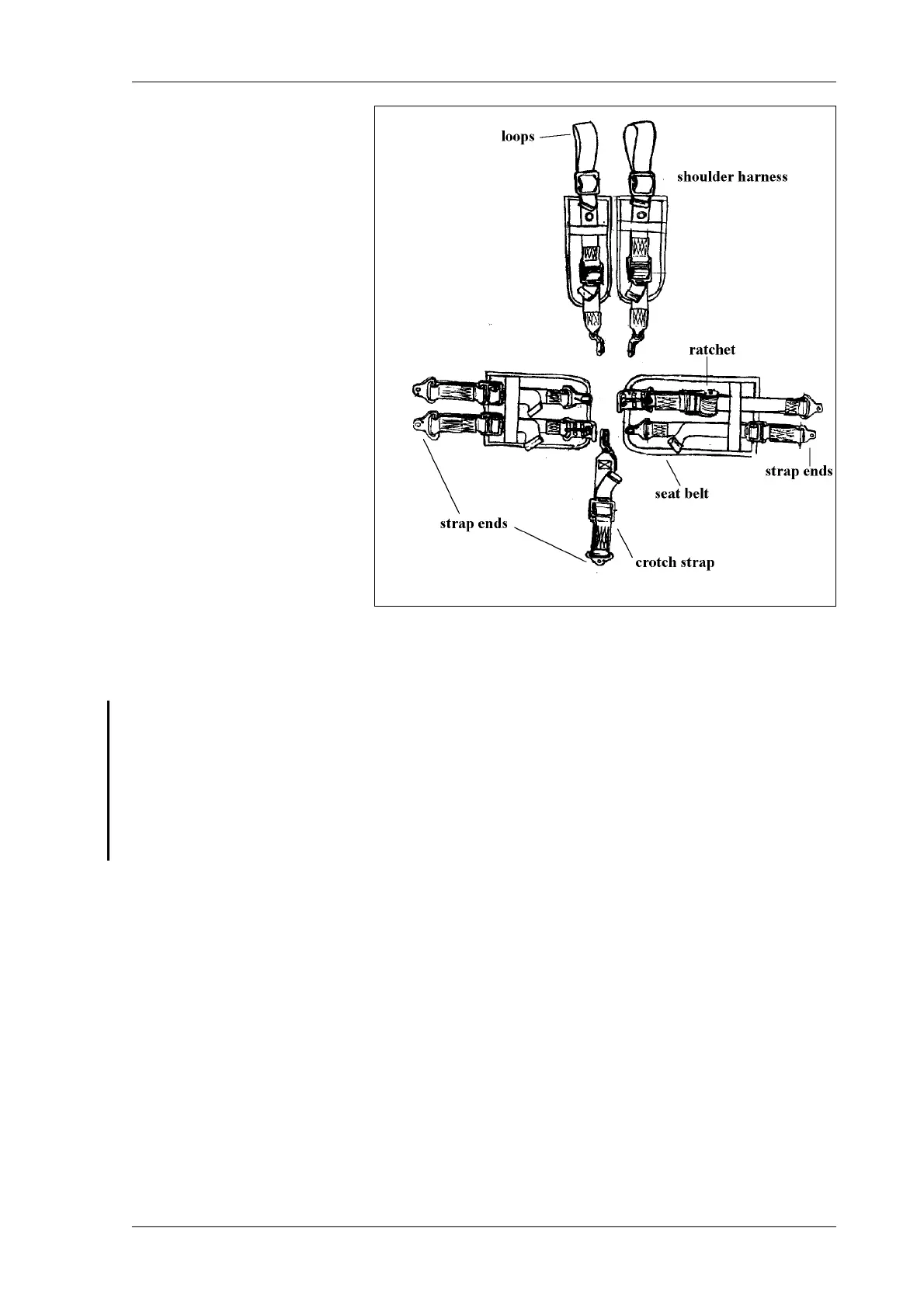

Strap Assembly
Figure 1
Up to Ser. No. 15 each strap end is fitted with LN 9037-
0820 bolts , LN9348-08 stop nuts and DIN 125 M8 washers
to its own fitting at the steel frame resp. at the underside of
the seat. From Ser. No. 16 the crotch strap ends are attached
by means of AN4 bolts, washers and nuts. The shoulder
strap loops of the front and rear seat are attached to
horizontal steel tubes as shown in Figure 2.
Seat belts
PAGE DATE: 15. December 1999
