CHAPTER 27
PAGE 5
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
GENERAL
27-00-02 Control Rod Lengths
The measurements given in this chapter refer to the dis-
tances between the centers of the rod end bearings resp. of
the clevis head (see Figure 3).

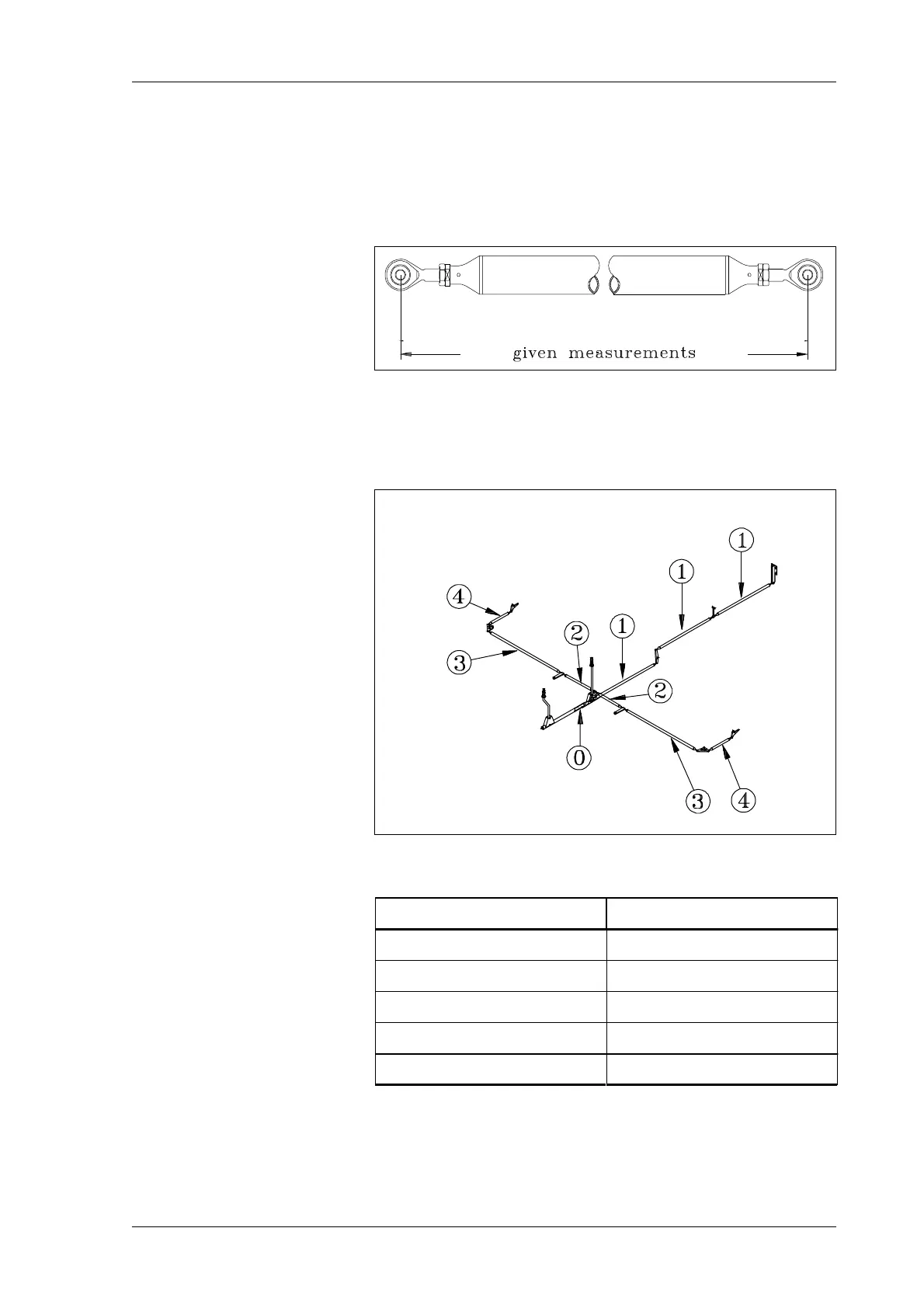

Control Rod Measurement
Figure 3
Refer to the following Figure 4 for identification of the
control rods.
Control Rod Identification
Figure 4
Control rod Measurements
0* 801 mm
1 932 mm
2 520 mm
3 1884 mm
4 420 mm
* clevis head at the rear control
stick
