CHAPTER 27
PAGE 6
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
27-01-00 MAINTENANCE PRACTICES

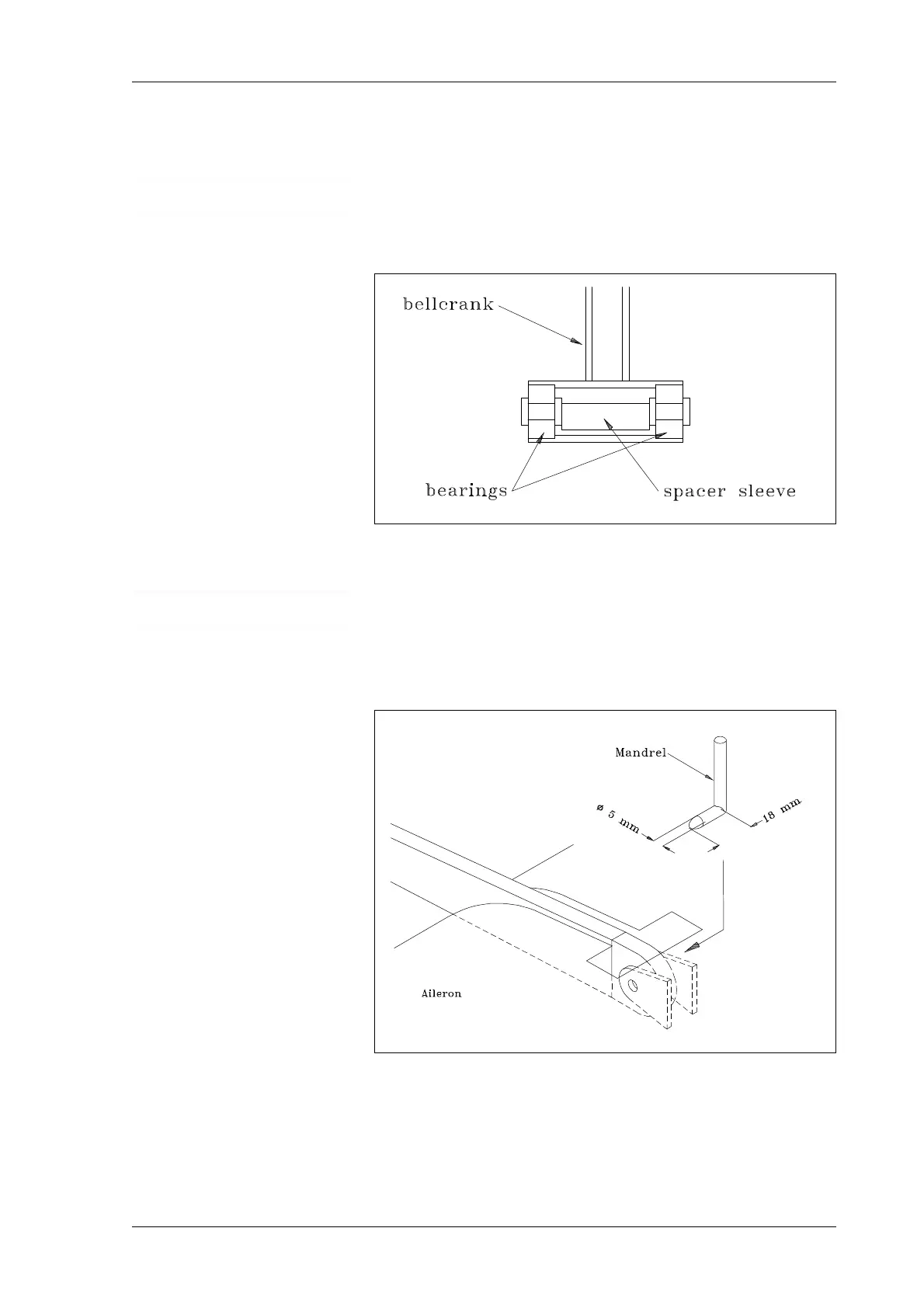

N O T E When installing a bellcrank or control stick the spacer
sleeve inside the bearing could be displaced as shown in
Figure 5. Use a mandrel to adjust the spacer sleeve.
Spacer Sleeve Displaced
Figure 5
N O T E When installing a control surface use mandrels as shown
in the following Figure 6 to preset the control surface.
Then press out each mandrel by pushing a bolt into the
bearing.
Control Surface Mounting Aid
Figure 6
