Front Control Stick Removal/Installation

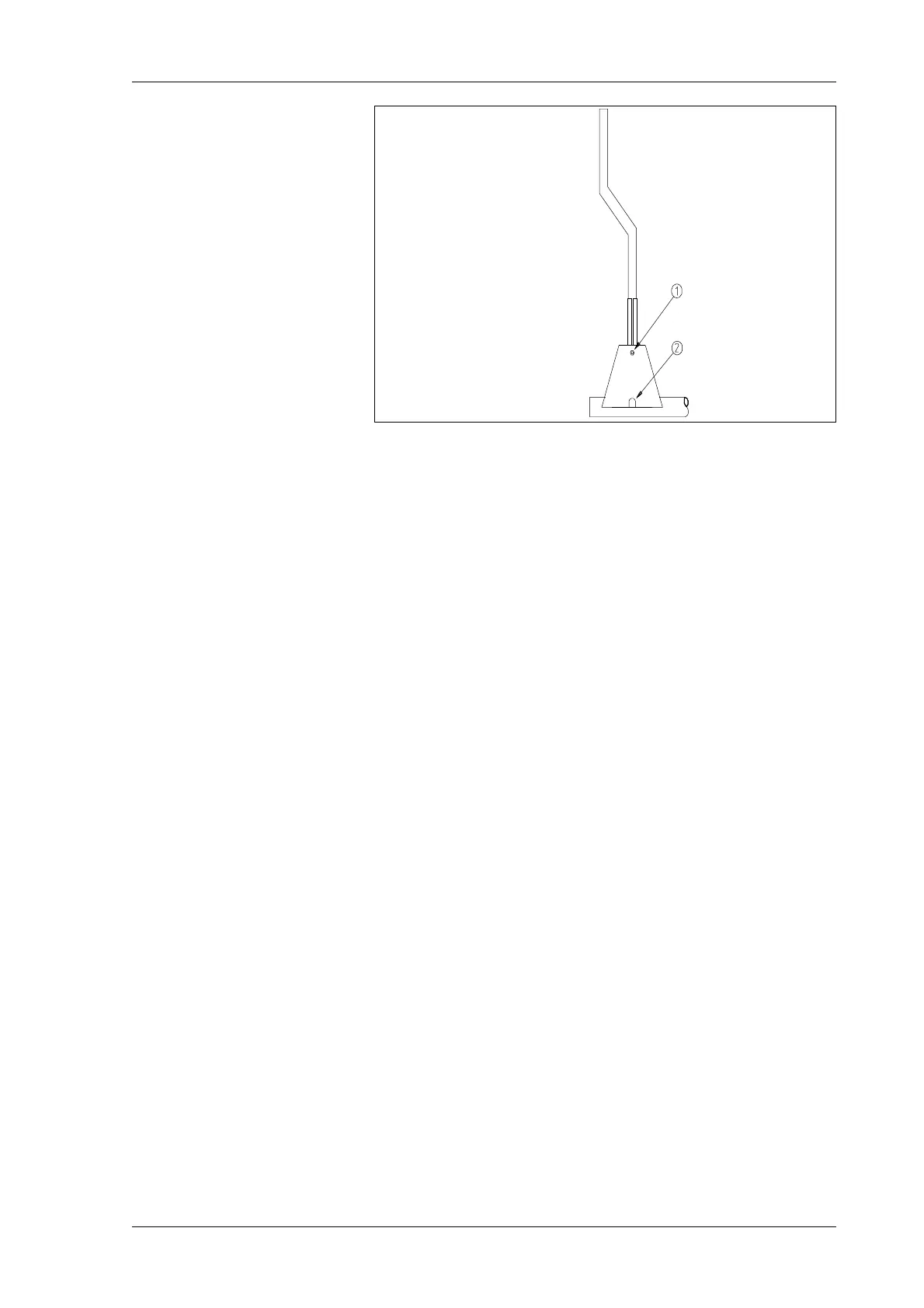

Figure 8
5 Remove the control stick.
6 Reverse procedure to install the control stick. Replace
the selflocking nuts. Observe the first Note of Chapter
27-01-00.
7 Check for potential chafing of the wiring after installa-
tion.
27-01-04 Rear Control Stick Removal/Installation
1 Remove rear seat per Chapter 25-15-02.
2 Disconnect the electrical wiring.
3 Remove the control stick attachment bolt.
4 Use the control stick to move the control rod attach-
ment bolt within the mounting hole area (2, Figure 8)
and disconnect the stick from the control rods per Chap-
ter 27-01-01.
5 Remove the control stick.
6 Reverse procedure to install the control stick. Replace
the selflocking nuts. Observe the first Note of Chapter
27-01-00.
7 Check for potential chafing of the wiring after installa-
tion.
MAINTENANCE PRACTICES
Front Control Stick Removal/Installation
