MAINTENANCE PRACTICES
Control Levers and Rods Removal/Installation

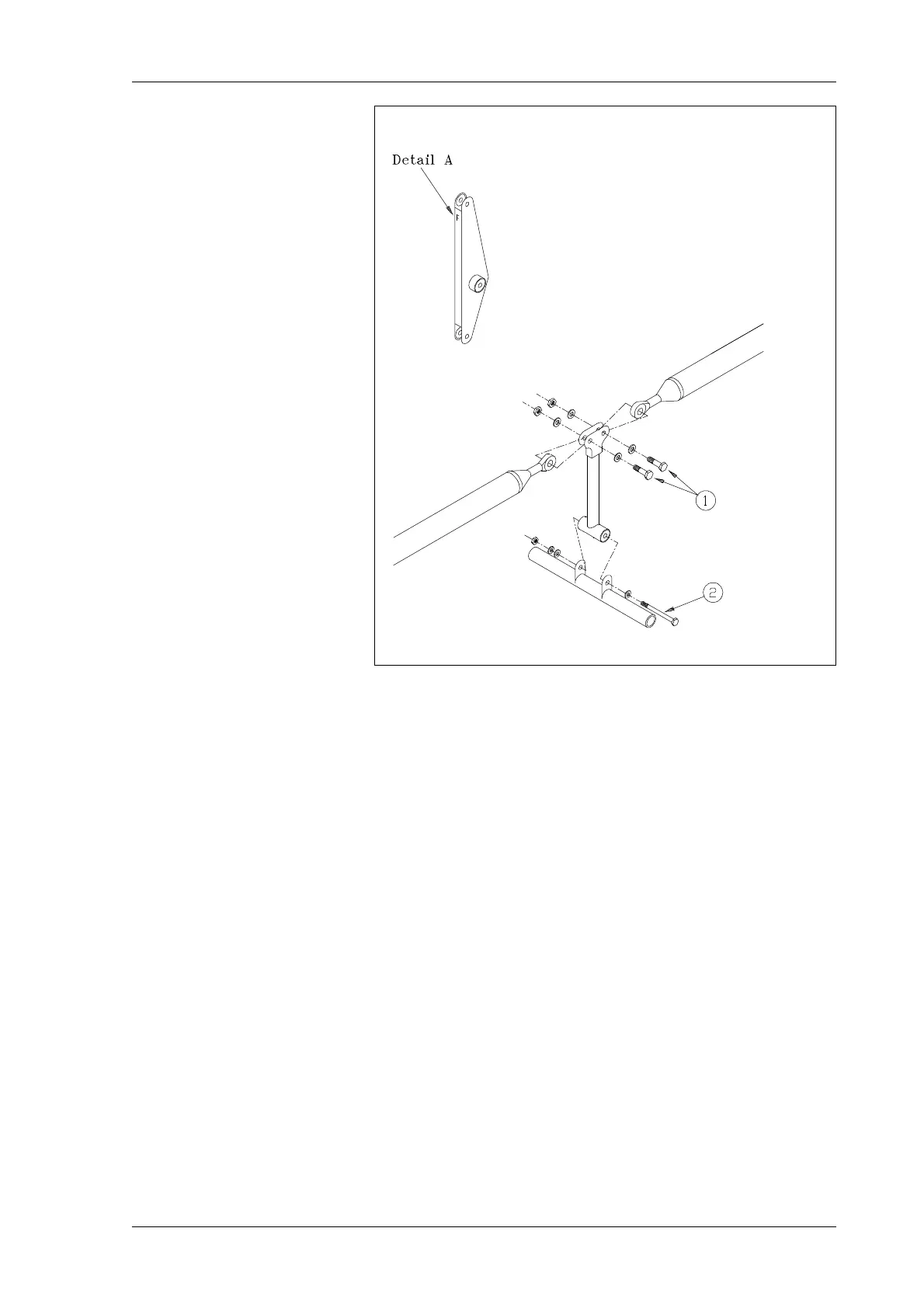

Figure 7
27-01-03 Front Control Stick Removal/Installation
Refer to Figure 8.
1 Remove front seat per Chapter 25-15-01.
2 Disconnect the electrical wiring.
3 Remove the control stick attachment bolt (1).
4 Disconnect the control stick from the control rod per
Chapter 27-01-01. Use the control stick to move the
control rod attachment bolt within the mounting hole
area (2).
Bellcrank Removal/Installation
