CHAPTER 27
PAGE 15
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996

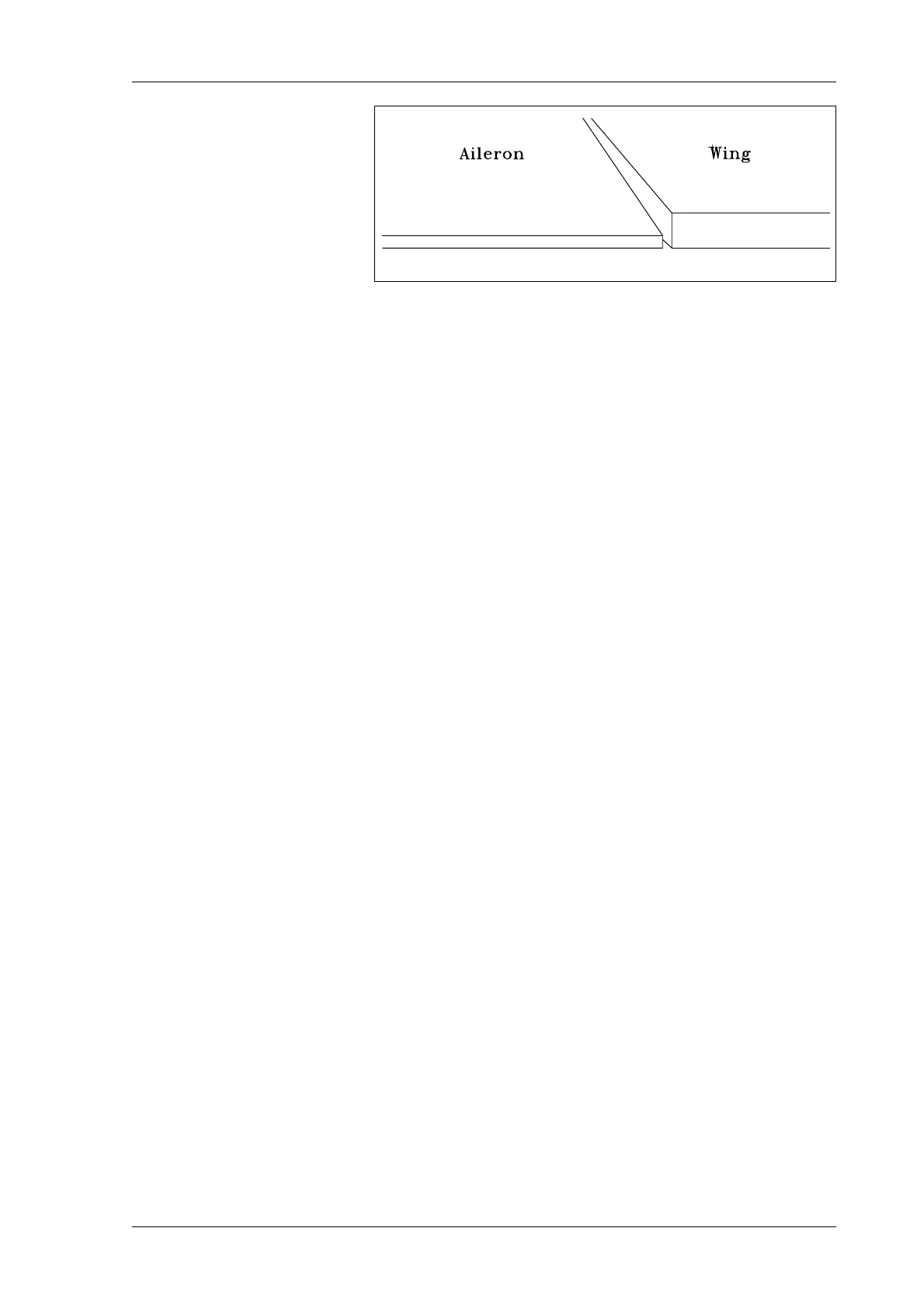

Trailing Edge Alignment
Figure 11
5 If necessary adjust the length of the control rods con-
necting the aileron center linkage to the outer wing
bellcrank per Chapter 27-01-06.
6 Check if the left aileron travel is within the given tol-
erances. Use a conventional protractor.
7 Adjust the travel stops if necessary.
8 Follow step 6 for the right aileron.
9 If the travel of the right aileron exceeds the given tol-
erances, contact the manufacturer.
10 Check if the movement of the control sticks is free over
the whole travel range and check if the rear control
stick travel is symmetrically to each side. If it is not
contact the manufacturer.
MAINTENANCE PRACTICES
Aileron Rigging
