CHAPTER 27 PAGE 25
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200 PAGE DATE: 1. July 1996

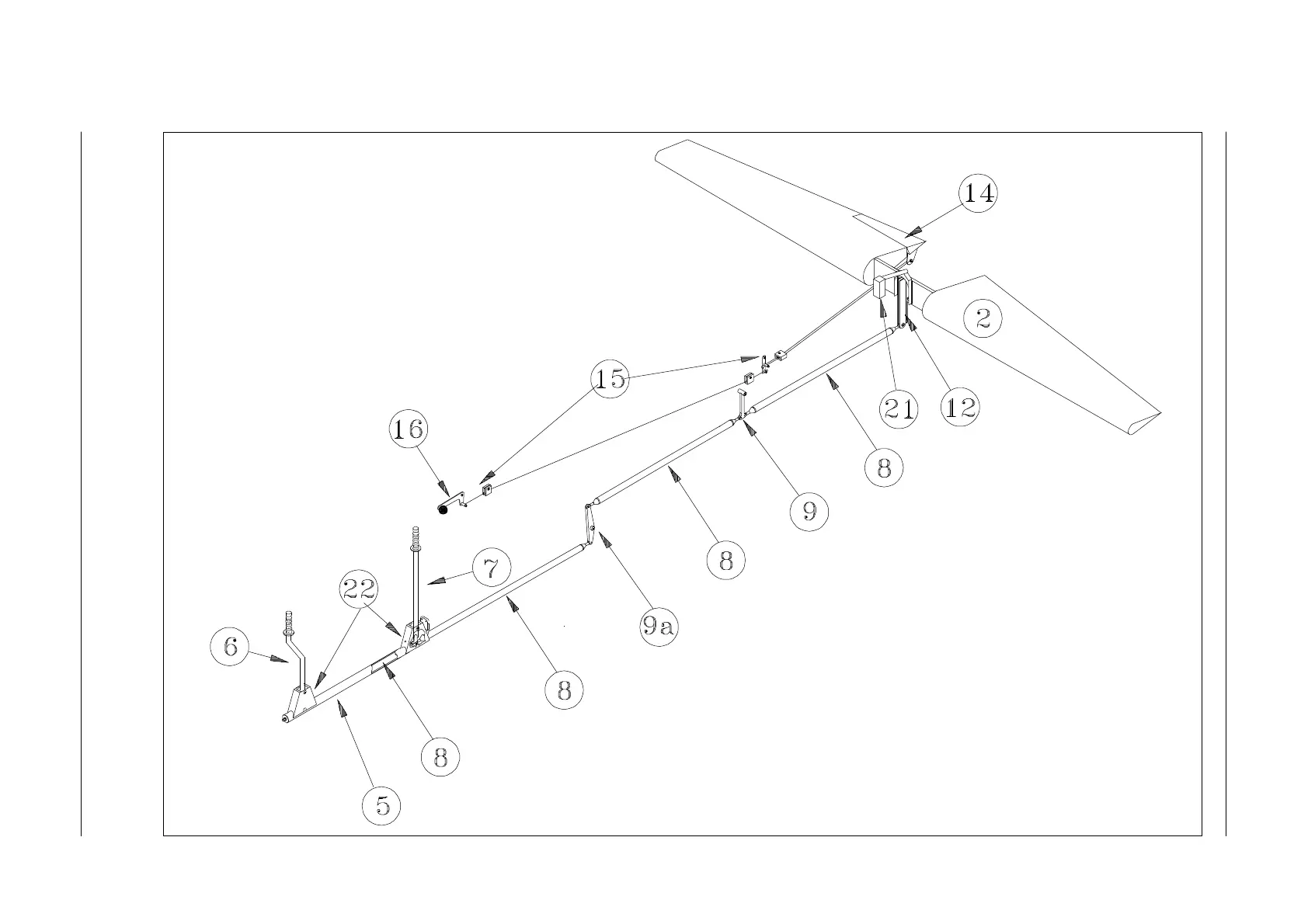

Elevator and Trim Tab Control
Figure 14
2 elevator
5 torque tube
6 front seat stick
7 rear seat stick
8 push-pull rod
9 bellcrank
9a rocker type bellcrank
12 elevator actuator arm
14 trim tab
15 trim control bowden cable mechanism
16 trim tab control lever
21 mass balance
22 travel stops
ELEV
ATOR AND TAB
