CHAPTER 27
PAGE 28
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
27-31-04 Trim Tab Rigging
Refer to Figure 16.
1 Secure the rear control stick in normal position.
2 Secure the trim control lever (1) in horizontal position.
3 Adjust the fuselage bellcrank (2) in middle position.
Use new selflocking nuts (3).

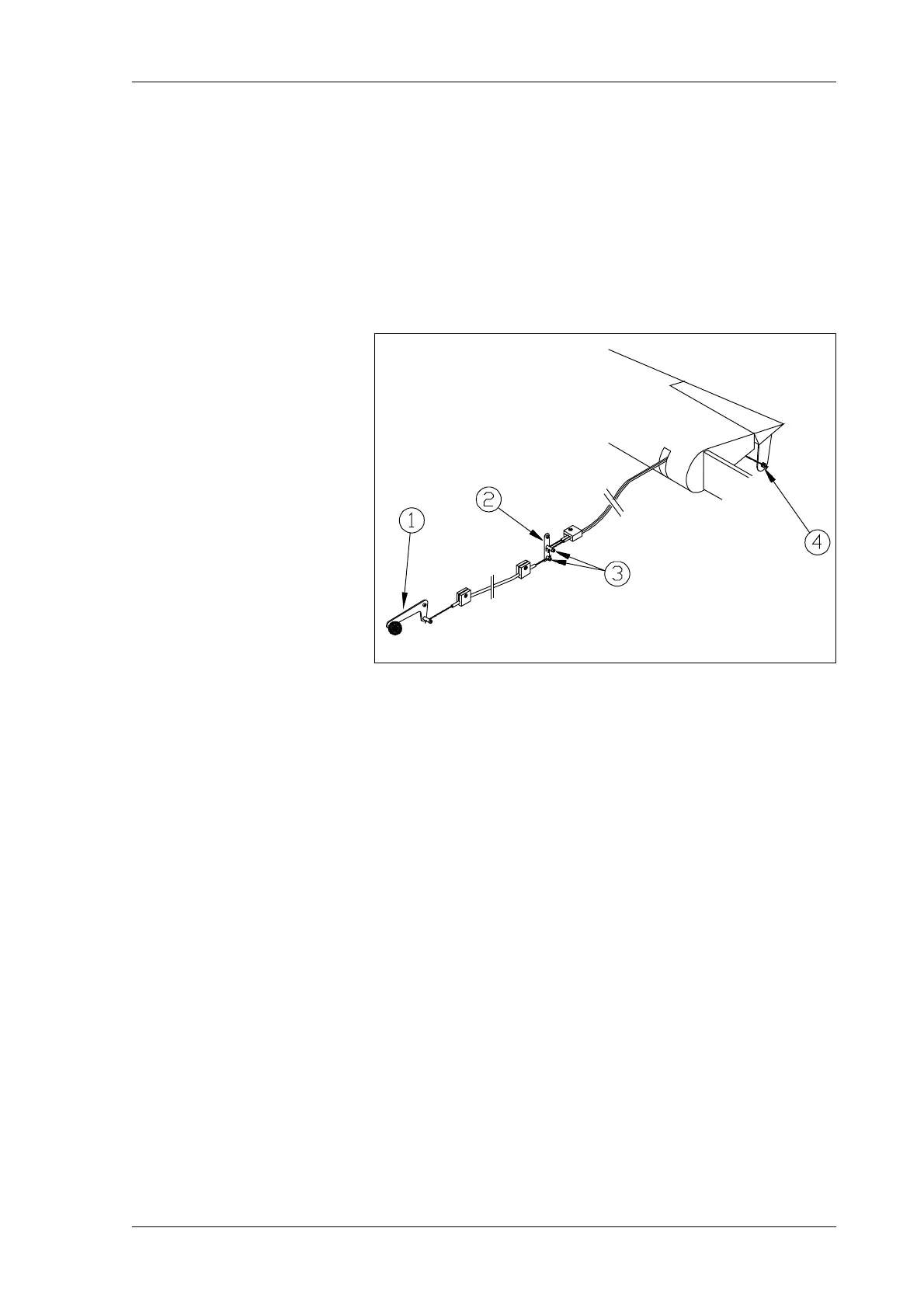

Trim Tab Rigging
Figure 16
4 Bring the trim tab in 0°-position. Use new selflocking
nuts (4).
5 Bring the trim lever in extreme positions and check if
trim tab travel is within given tolerances. If it is not,
check free travel of the trim levers, fuselage bellcrank
and bowden cables.
MAINTENANCE PRACTICES
