CHAPTER 27
PAGE 27
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
1 Remove the canopy and the main fuselage cover per
Chapter 51 and the seats per Chapter 25.
2 Secure the rear control stick in the neutral position.
(Control stick parallel to the vertical steel tube carriing
the trim tab control lever resp. perpendicular to the
upper longerons).

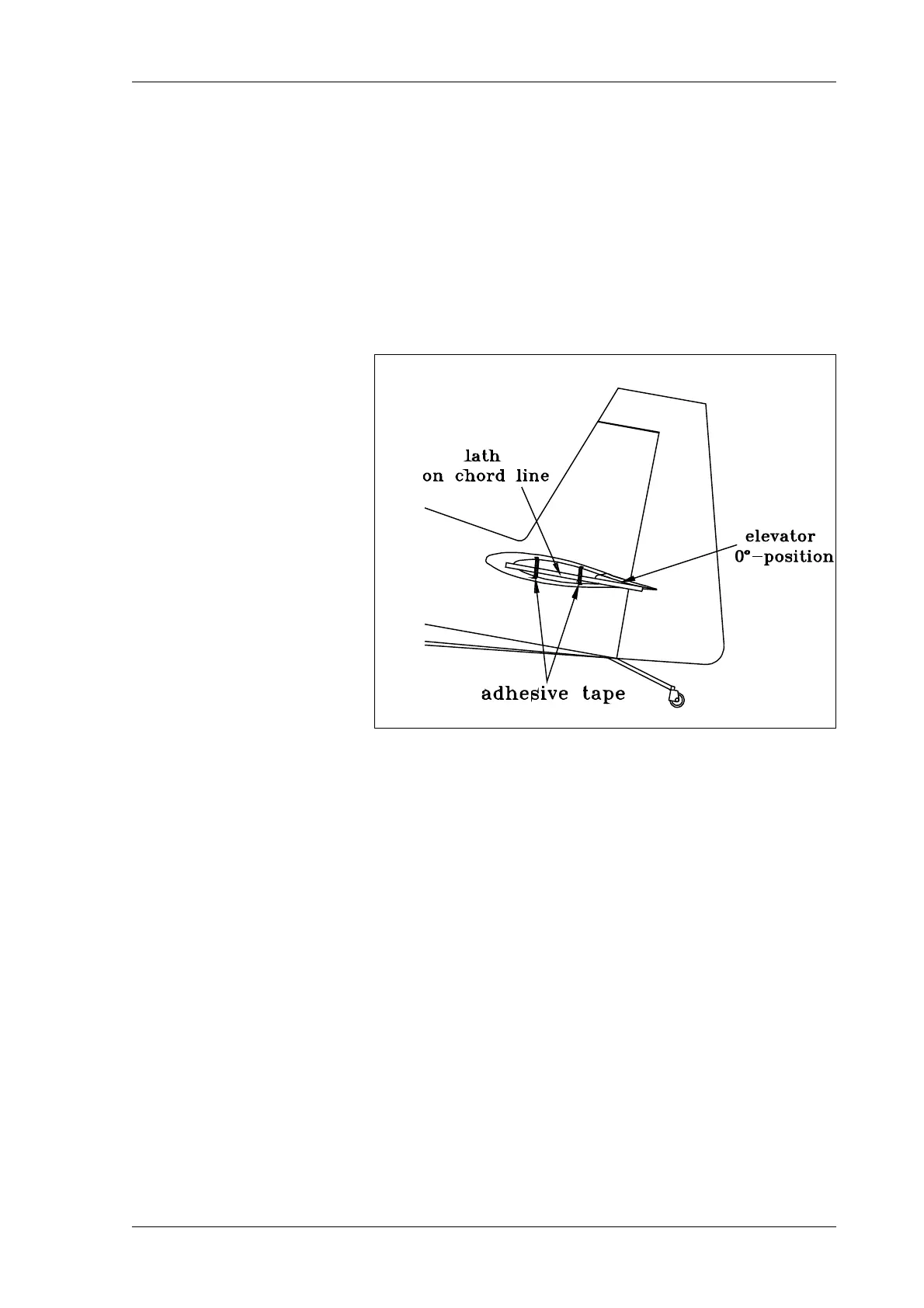

3 Check if the elevator is in 0°-position. (Trailing edge
on chord line. Fasten a lath to the tip rib of the hori-
zontal tail per Figure 15 using adhesive tape.)
Lath on Chord Line
Figure 15
4 If necessary adjust the length of the rearmost tail con-
trol rod per Chapter 27-01-06.
5 Check if the elevator travel is within the given toler-
ances. Use a conventional protractor.
6 Adjust the travel stops if necessary.
7 Check full travel of control sticks in each direction.
8 Check if the rear control stick travel is symmetrically.
9 If it is not, contact the manufacturer.
MAINTENANCE PRACTICES
Elevator Rigging
