Ventilation lines

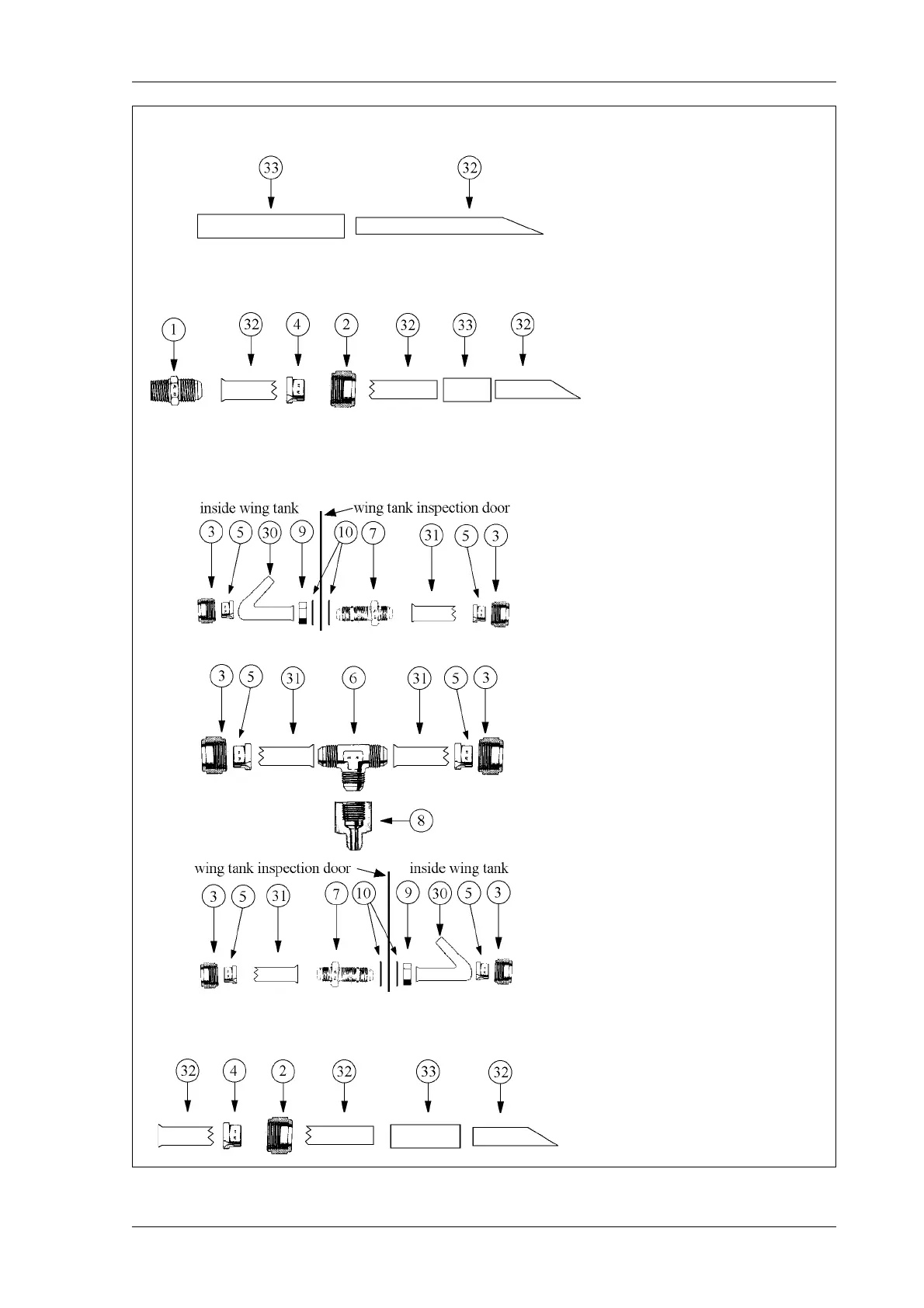

Figure 6A
Fittings and washers
1 AN816-4D
PN: PC-00159
2 AN818-4D
PN: PC-00161
3 AN818-6D
PN: PC-00160
4 AN819-4D
PN: PC-00860
5 AN819-6D
PN: PC-00162
6 AN824-6D
PN: PC-00168
7 AN832-6D
PN: PC-00170
8 AN894-6-4D
PN: PC-00154
9 AN924-6D
PN: PC-00177
10 AN960-C916
PN: PC-01852
11 AN822-4D
PN: PC-00155
Tubes
30 strainer tube
PN: PC-63202.2
31 alu tube 5052-0, Ø3/8 inch
PN: PC-00122
32 alu tube 5052-0, Ø1/4 inch
PN: PC-00123
33 vinyl tubing
PN: PC-01607
Acro tank to main landing gear spring connection (a)
Wing tank to wing tank connection (c)
Tee-fitting to main landing gear spring connection (d)
Center tank to main landing gear spring connection (b)
