28-41-05 Float Wire Adjustment
1 Remove the lever-type tank unit per Chapter 28-41-04.
2 Remove the float wire and bend it in form like shown in
the following Figure 13:

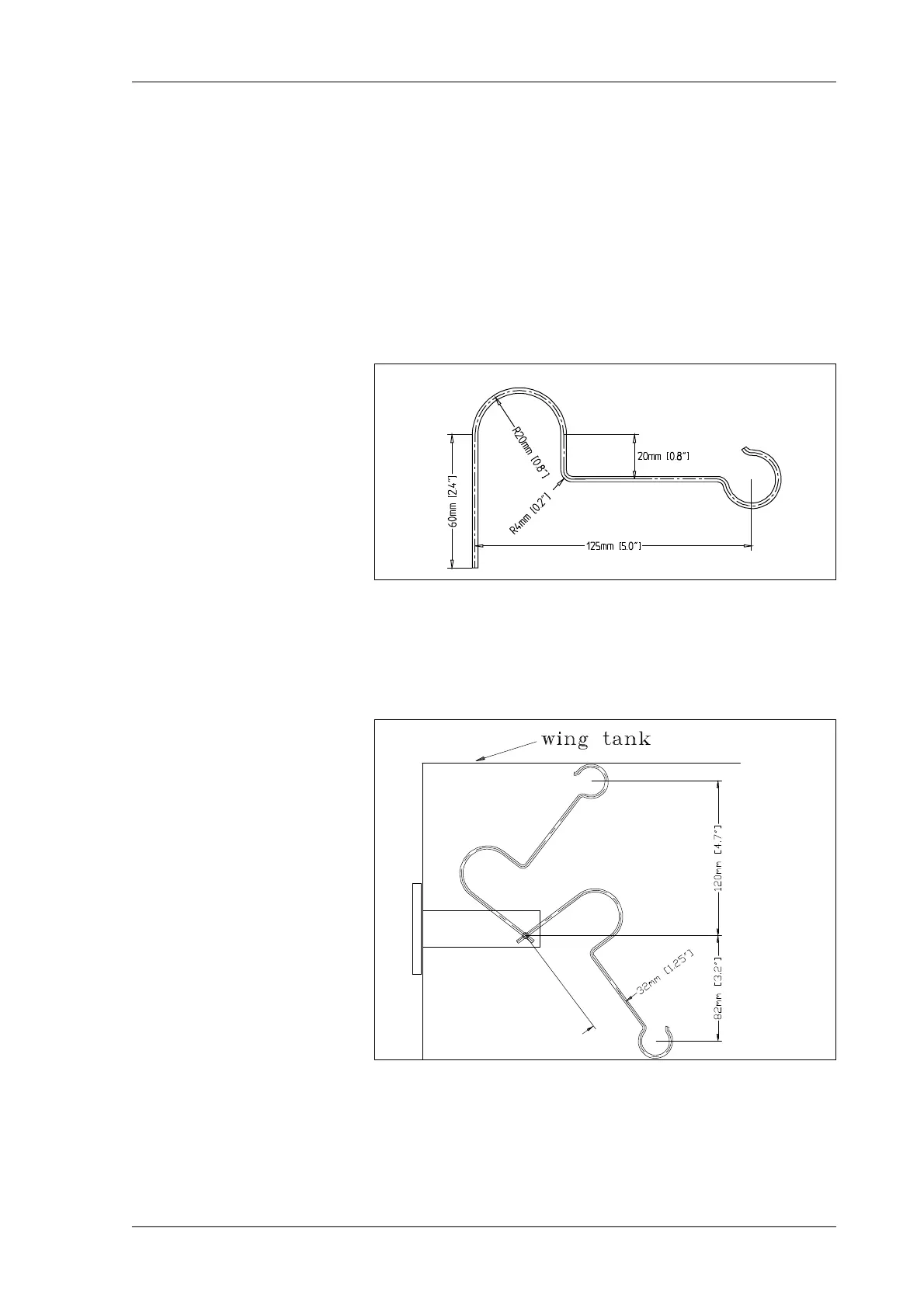

Float Wire Adjustment
Figure 13
3 Reinstall the float wire observing the distances shown
in Figure 14, pay attention to a proper alignment and
tighten well the attachment bolt.
Float Wire Installation
Figure 14
4 Reinstall the lever-type tank unit per Chapter 28-41-04.
