6 Clean sealing surfaces mechanically and with Acetone.
7 Install in reverse sequence of removal after applying
3M Brand Fuel Resistant Coating 776 (3M, St. Paul,
USA) for sealing to both sides of the sealing ring.
28-41-04 Lever-type Tank Unit (Wing Tank)
Removal/Installation
1 Disconnect the electrical wiring.
2 Remove LH inspection door (refer to Chapter 28-11-
03)
3 Remove tank unit bolts (1, Figure 12).
4 Remove the retainer ring (3) the tank unit (4) and the
sealing ring (2).

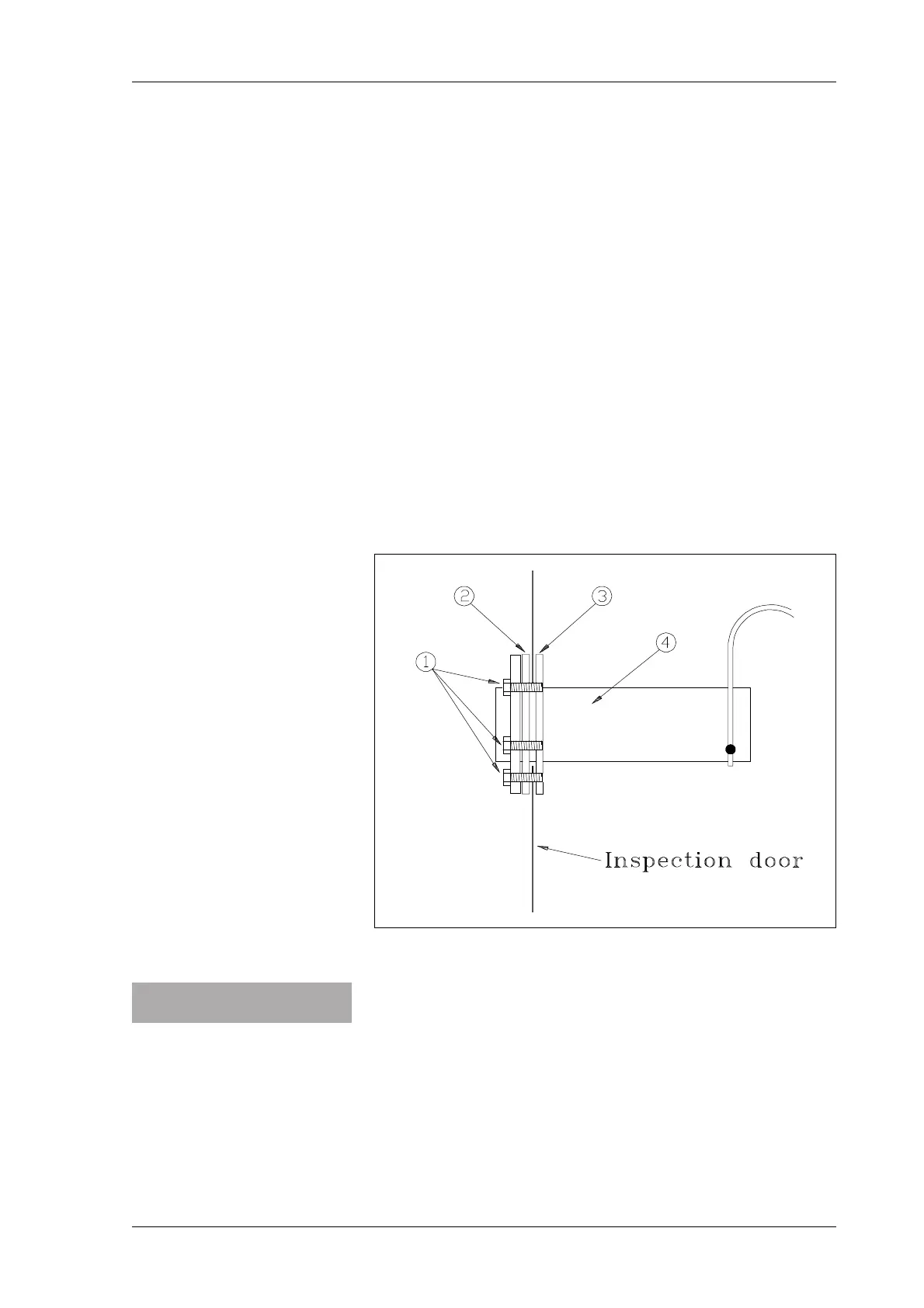

Lever-type Tank Unit (Wing Tank) Removal/Installation
Figure 12
W A R N I N G Stripping solvents can be toxic and volatile. Use only in
well ventilated areas. Avoid physical contact with sol-
vent and do not inhale vapors. Keep solvent containers
covered when not in use.
5 Clean sealing surfaces mechanically and with Acetone.
6 Install in reverse sequence of removal after applying
3M Brand Fuel Resistant Coating 776 (3M, St. Paul,
