CHAPTER 31
PAGE 5
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
INSTRUMENT AND CONTROL PANELS

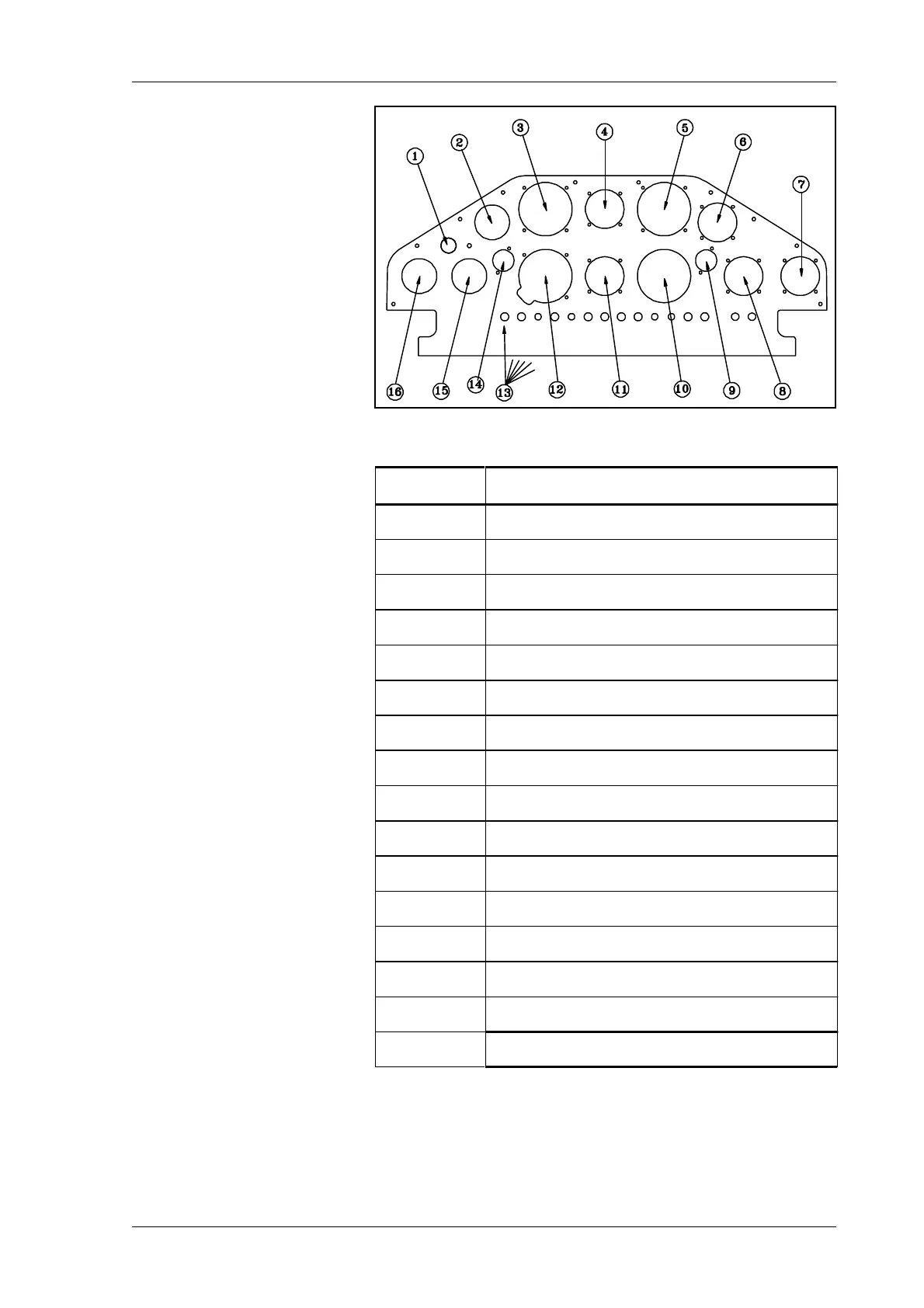

Rear Instrument Panel
Figure1
Pos.
Item
1
Starter
2
Ammeter
3
Air Speed Indicator
4
Magnetic Compass
5
Acceleration Indicator (G-Meter) *
6
CHT/EGT Indicator *
7
Radio *
8
Oil Temperature Indicator
9
Oil Pressure Indicator
10
Tachometer
11
Manifold Pressure Indicator
12
Altimeter
13
Switches/Circuit Breakers
14
Fuel Pressure Indicator
15
Fuel Quantity Indicator (Center tank)
16
Fuel Quantity Indicator (Wing tank)
* Option
