PRODUC
T FUNCTIONALIT
Y
28
Chapter7
PRODUCT FUNC
TIONALITY

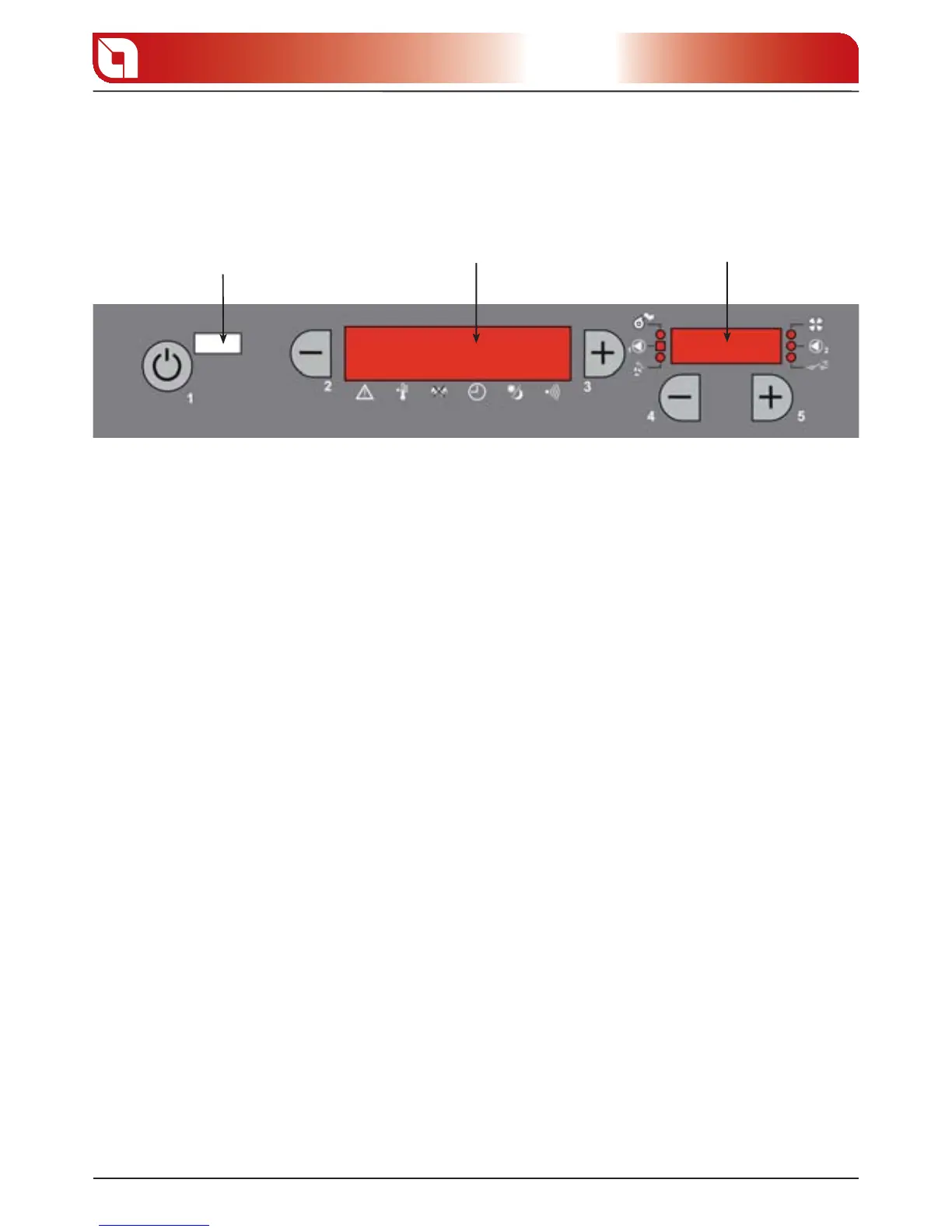

C
ONTROL BOARD
REMO
TE CONTROL SENSOR
(not available f
or this product)
D1
D2
1
D
ON/OFF BUT
T
ON
By pressing button 1 it is possible t
o switch the stov
e on and o
automatically
.
4-5
D
FUNCTIONING POWER
The heat pow
er can be adjusted using buttons 4 and 5
Display D1 to view the various messages
.
Display D2 to view the pow
er set.
gure
7.1
27
29
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter1
7
Warnings and Safety Devices
7
Technical Features
9
Chapter3 the FUEL
12
Pellet Feeding
12
Chapter4 SAFETY DEVICES
13
Flue Exhaust Breakage
13
Pellet Feed Motor Stop
13
Door Micro Switch
13
No Ignition
13
Temporary Power Cut
13
Electric Safety
13
Flue Exhaust Safety Device
13
Pellet Tank Temperature Safety Via 85°C Bulb
13
Water Overheating Safety Via 100° C Bulb
14
Minimum and Maximum Pressure Pressure Switch
14
Devices Not on the List
14
Installation and Safety Devices
14
Safety Devices for Closed Vessel Plant
14
Distances of Safety Devices According to the Standard
15
Automatic Thermostatic Mixer Valve (Mandatory)
15
Table of Safety Devices for Closed Vessel System and Not Present in the Product
16
Chapter 5 ASSEMBLY and INSTALLATION INSTRUCTIONS
19
Glossary
19
Installation
20
Allowed Installations
20
Installations Not Allowed
20
Connection to the Smoke Evacuation System
21
Smoke Channel or Connections
21
Chimney or Individual Flue
22
Appliance Connection to the Flue and Fuel Products Evacuation
24
Chimney Cap
24
Connection to External Air Inlets
25
Insulation, Finishings, Covering and Safety Recommendations
25
National, Regional, Provincial and Town Council Regulations
25
Chapter6 HYDRAULIC SYSTEM
26
Type of System
26
Closed Vessel System for Automatic Loading Appliances
26
Generality
26
Feeding Water Features
27
Filling the Plant
27
Chapter7
28
Product Functionality
28
Control Board
28
Language Selection
29
Current Day and Time Adjustment
29
Mode
29
Mode Selection
30
Winter Mode
31
Winter-Domestic Mode
31
Summer Mode
31
Safety Zone
31
External Thermostat Function in Stby/Toff" Mode
32
Functioning Cycle
32
Basic Instructions
32
Ignition
33
Start-Up
34
Functioning
34
Switch-Off
34
Water Temperature Adjustment
35
Thermostats Connection
35
Winter Mode Output Board Management
36
Winter Dhw Mode Output Board Management
36
Summer Mode Output Board Management
36
Chapter8
37
User Parameters
37
Weekly Programmer
37
Pellet Feed Adjustment
40
Springs Automatic Cleaning Times
41
Chapter9
42
Boiler Cleaning
42
Brazier Cleaning
42
Spring Cleaning
42
Door and Ash Drawers Gaskets
43
Connection to the Flue
43
Chapter10 PRODUCT DISPLAY TABLES
44
Warranty Conditions
48
Quality Control
49
