LP14_20_30 BOILER 20.
CLEANING
(Some images could be oset from the original model).
Maintenance operations guarantee correct functioning of the
product through time. Failure to comply with these operations can
jeopardise the safety of the product. The cleaning operations must
be performed when the stove is completely cold.
BURN POT CLEANING20.1.
The burn pot is cleaned via a mechanical system at pre-xed
intervals automatically by the boiler. The gure below shows the
burn pot. The company recommends to remove any ash residue
using a suction device, at least once every two days.

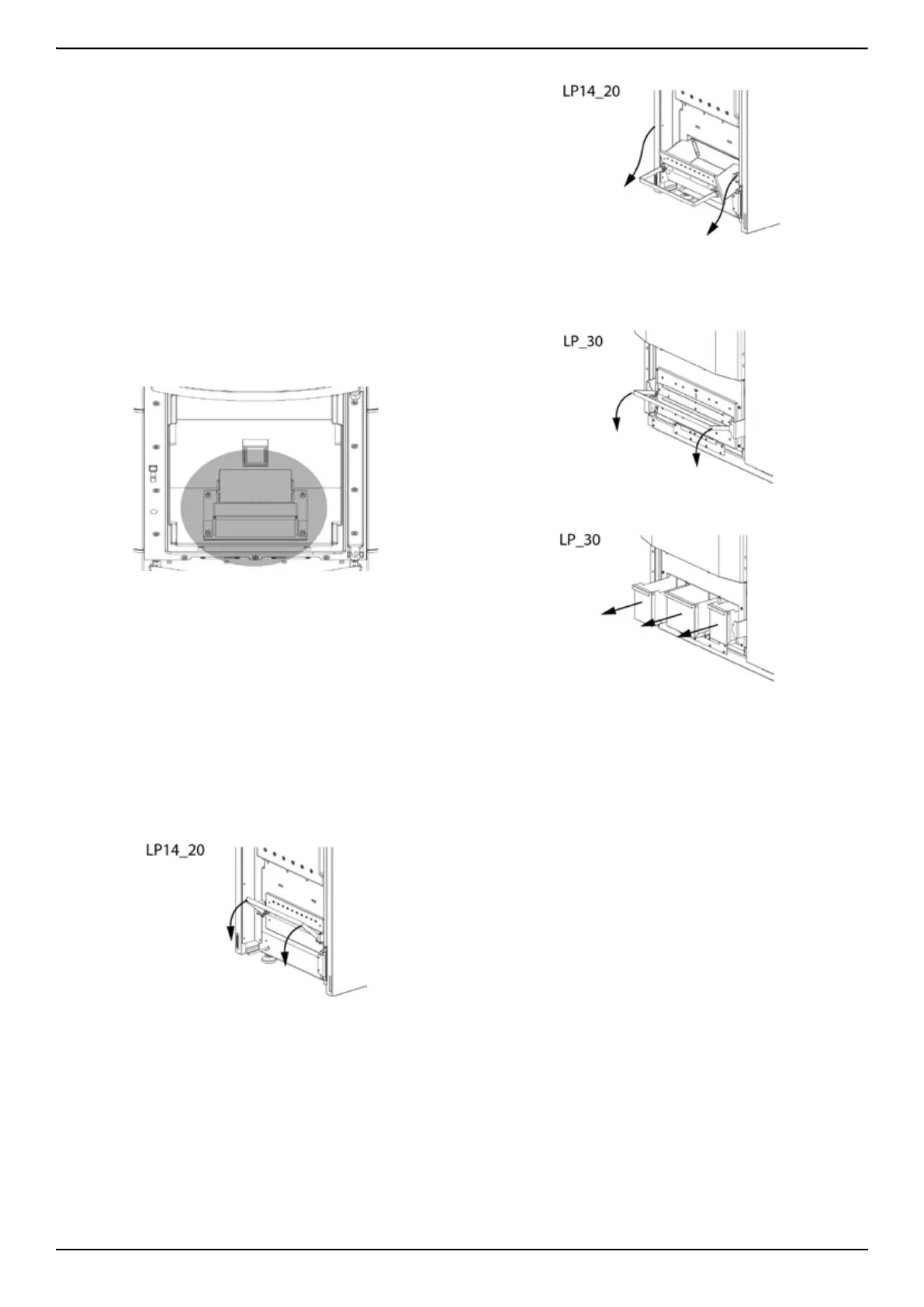

gure 22
DOOR GASKET AND ASH DRAWER20.2.
The gaskets guarantee the tightness of the boiler and its consequent
good functioning.
These must be checked regularly: if they should be worn or
damaged they must be replaced immediately.
These operations must be carried out by an authorised technician.
N.B. For correct functioning, the boiler must undergo routine
maintenance by an authorised technician, at least once a year.
If the power supply cable is damaged, it must be replaced by the
after-sales service or by a similarly qualied person, so as to avoid
al risks.
gure 23
gure 24
With machine o, open the ash drawer to empty the content. The
frequency of emptying the ash drawer will be proportional to the
use of the product. Lp30 has 3 drawers.
gure 25
gure 26
CONNECTION TO THE FLUE AND 20.3.
CLEANING OF THE SAME
Suck and clean the pipe that leads to the ue yearly or anytime that
it is necessary. If there are horizontal tracts the residues must be
removed before they obstruct smoke passage. NON-CLEANING
jeopardises safety.
Maintenance operations guarantee correct functioning of the
product through time. Failure to comply with these operations can
jeopardise the safety of the product.
