12 Release the tabs on both slider assemblies, and slide the switch back until it is firmly in place. Screw
the mounting ear thumbscrews into the rack rails to hand tightness.
See Figure 14.

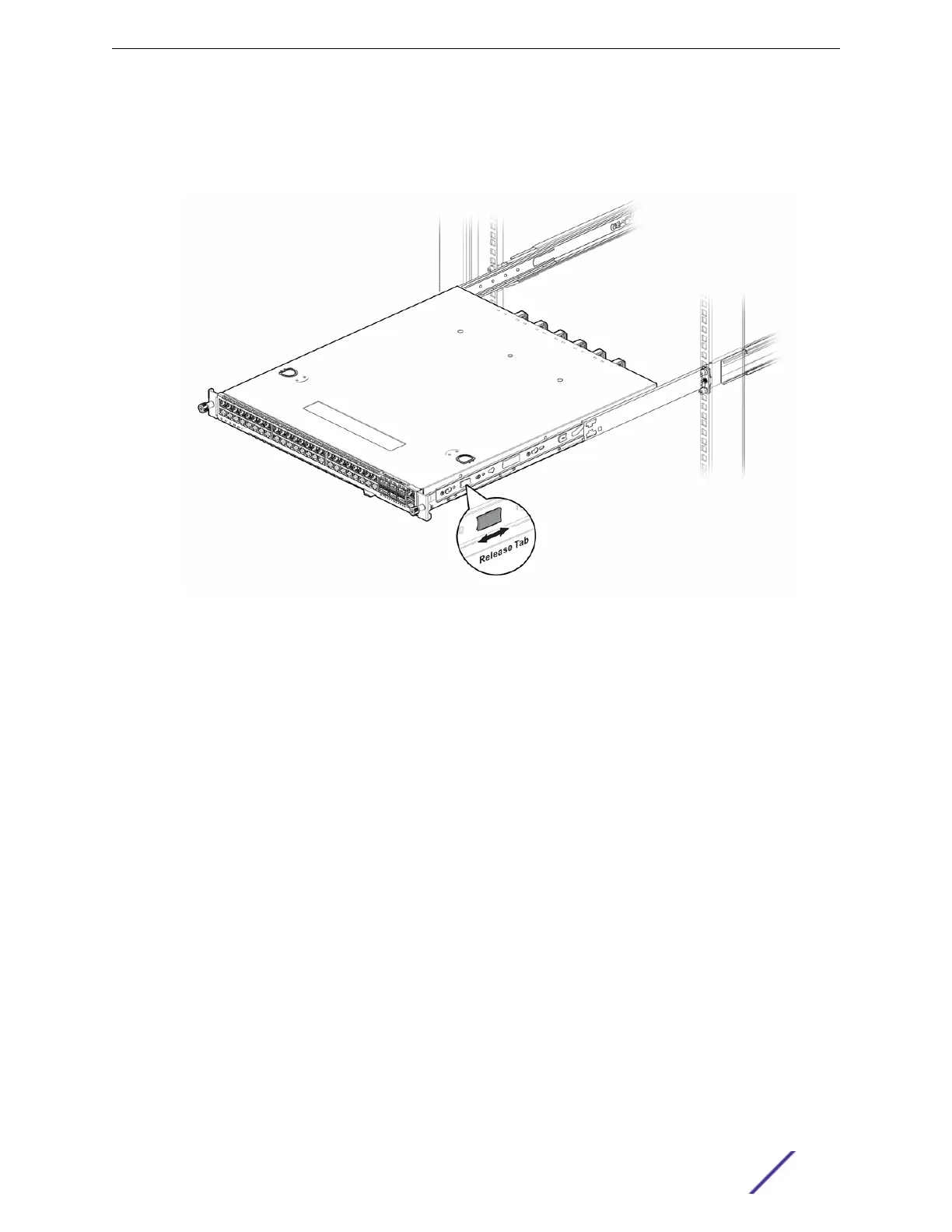

Figure 14: Pushing the Mounting Brackets into the Rail Assemblies
The completed assembly is shown in Figure 15.
Installing Your Switch
VSP 7400 Series Switches: Hardware Installation Guide 38
