8 On both sides, locate the sliding rails (intermediate members) in the slider assemblies, and pull them
out to their full extent. Ensure that the plastic slider on the intermediate member is in the locked
position:

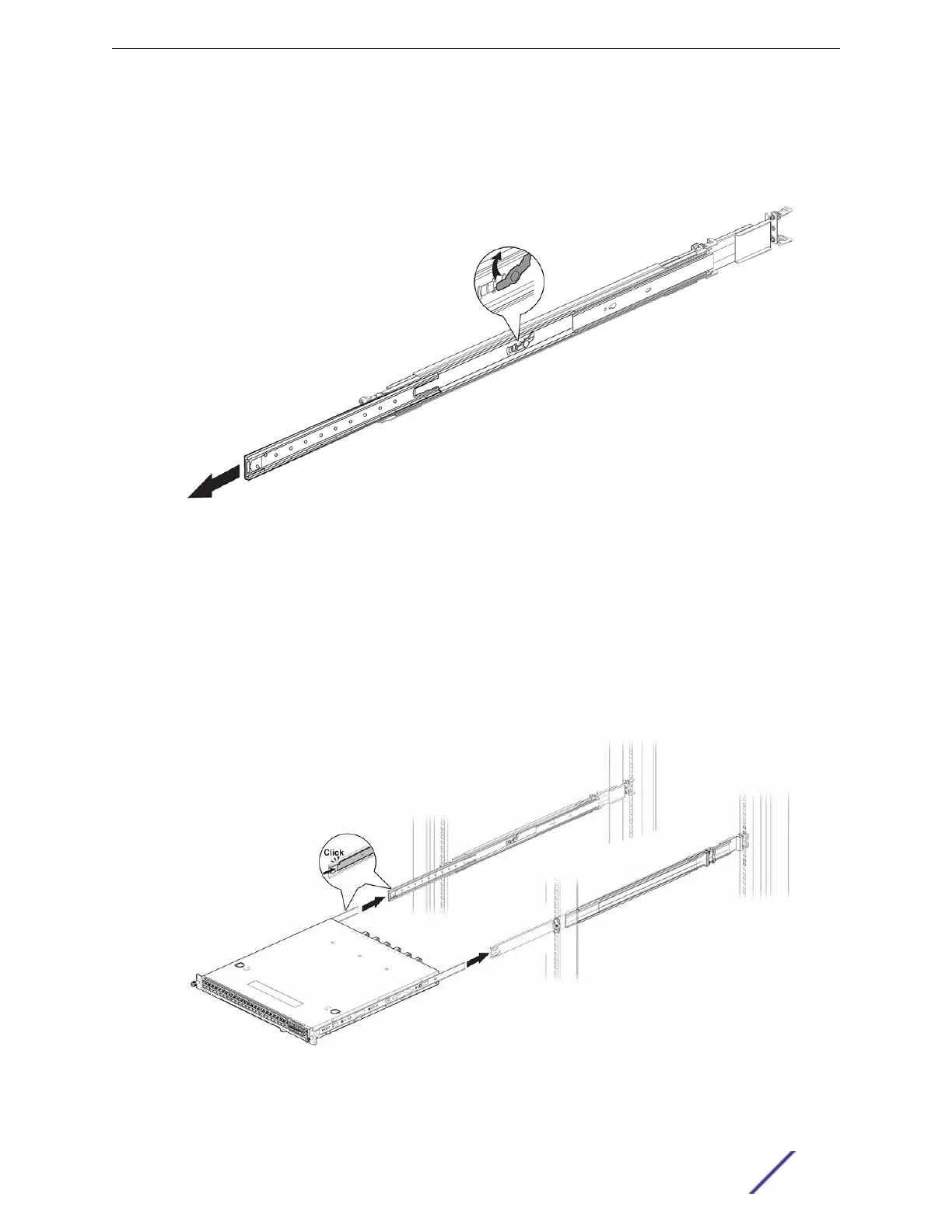

Figure 12: Extending the Slider Assembly to Fit the Rack
The sliding rails remain attached to the slider assembly.
9 Screw the mounting ear thumbscrews into the rack rails to hand tightness.
10 Lift the switch into position and insert the mounting brackets into the slider assemblies on both
sides.
11 Push gently until both mounting brackets engage with the slider assemblies.
See Figure 13.
Figure 13: Engaging the Mounting Brackets with the Rail Assemblies
Installing Your Switch
VSP 7400 Series Switches: Hardware Installation Guide 37
