Page | 5
6.
REMOVING THE EXISTING TOP LANDING GATE AND GATE HINGES

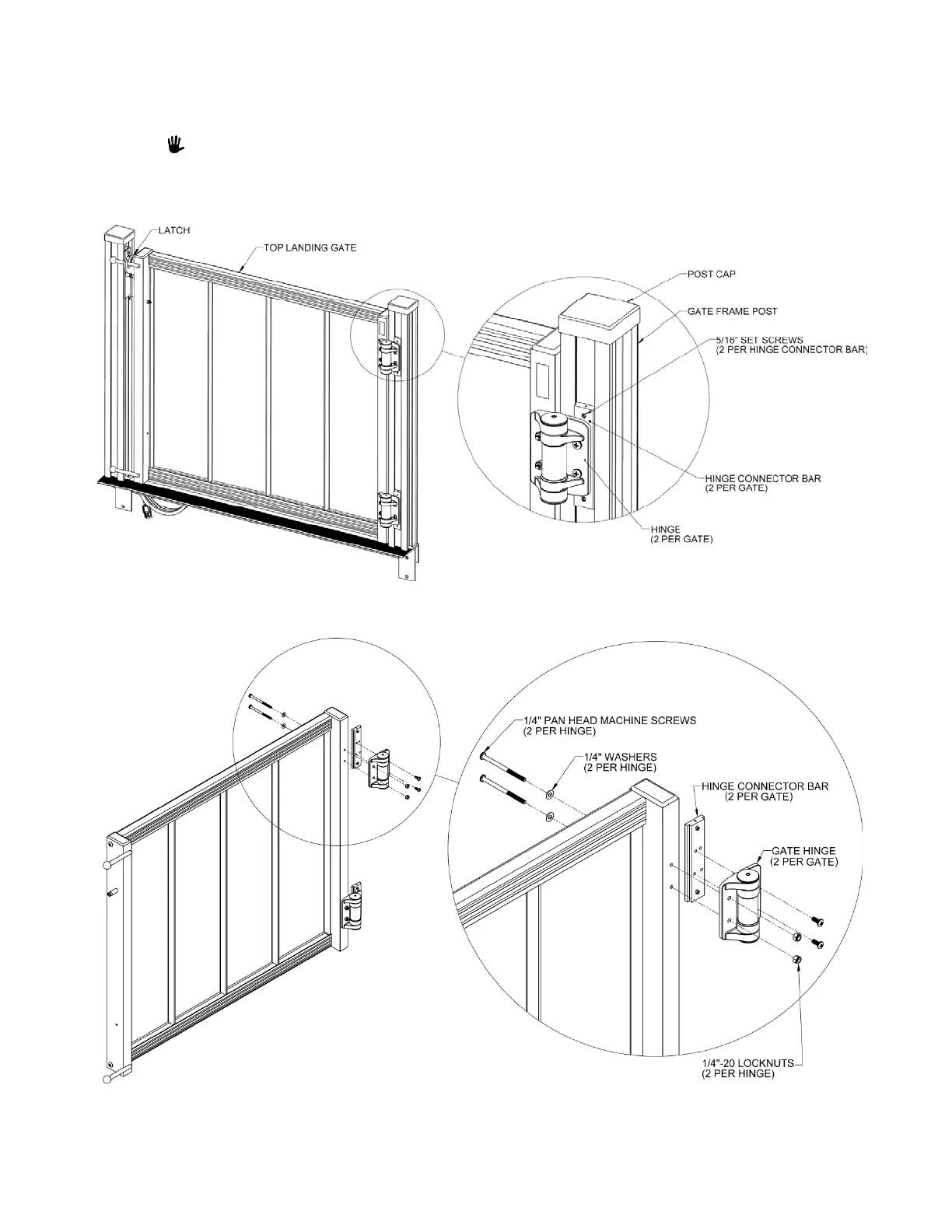

6.1 Remove the post cap from the gate frame post (FIG. 1).
6.2 Loosen or remove the two 5/16” set screws in each hinge connector bar (FIG. 1).
6.3 Slide the entire Top Landing Gate up and out of the gate frame post.
Manually rotate the latch out of the way as needed to remove the gate.
6.4 Remove the four 1/4” pan head machine screws, 1/4”- 20 locknuts and 1/4" washers that
attach the hinges to the gate (FIG. 2).
FIG. 1
FIG. 2
