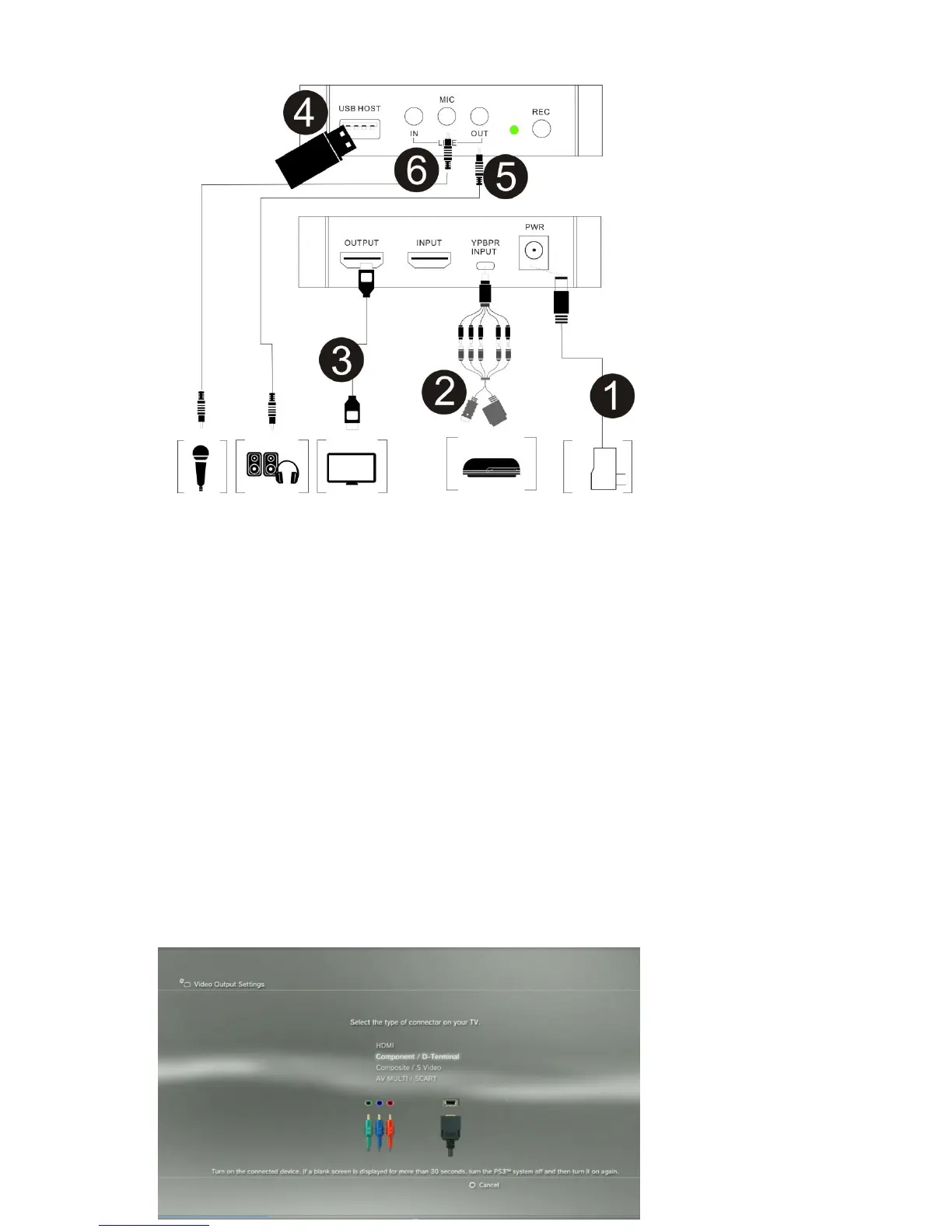

1, Connect power with DC adaptor
2, Use the adapter cable in the package to connect component (red, blue, green), just don’t mix the
red with the audio cable (the audio cable red and white will be separated with component)
3, With HDMI cable connect to monitor
4, Plug in an USB drive.
5, The “LINE OUT” is for connecting to speaker or earphone, it’s not necessary if you don’t need,
cause the HDMI output is also with audio output.
6, Connect a Microphone to the MIC port if you need record speak from microphone, it’s not
necessary if don’t need.
7, Connect a extra audio source to the LINE IN port if you need record background audio or music for
your recording video, it’s not necessary if don’t need.
PS3 setting: For the Component input
(1)Go to the settings---Video output settings, choose “Component/D-Terminal”:
To Next Page
