ELECTRIC POWERED PERSONNEL CARRIERS & GOLF CAR
Owner’s Manual and Service Guide
Read all of manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notes, Cautions and Warnings
DIRECTION SELECTOR ADJUSTMENT
To ensure forward and reverse will fully engage when
selected with the handle, adjust handle linkage at trun-
nion. Ensure handle travel is permitting the direction
selector mechanism to fully engage both forward and
reverse (Ref. Fig. 10 on page 8). To adjust the trunnion,
remove the cotter pin from the trunnion and screw the
trunnion up or down the connecting rod as needed to
achieve full engagement of both forward and reverse.
TOWING
Tow bars are available from the E-Z-GO Service Parts
Department.
For non-PDS vehicles, place direction
selector in neutral position prior to
towing to prevent possible damage to electric motor. Release
park brake.
For PDS vehicles, place Run-Tow/Maintenance switch in ‘Tow/
Maintenance’ position prior to towing to prevent damage to
electric motor and controller.
PDS model vehicles are equipped with a ‘Run-Tow/Main-
tenance’ switch located underneath the seat on the pas-
senger side. The ‘Tow/Maintenance’ position allows the
vehicle to roll freely without activating the warning beeper
and eliminating potential damage to controller or motor
(Ref Fig. 9 on page 4). Check to see that vehicles to be
towed are switched to the ‘Tow/Maintenance’ position.
To prevent personal inju-
ry or death, do not ride
on vehicle being towed.
Do not attempt to tow the vehicle with ropes,
chains or any device other than a factory
approved tow bar. Towing a disabled vehicle can
be dangerous and requires extra caution.
Attempting to tow with devices other than an
approved tow bar may result in severe personal
injury or death.
Use extra caution when towing vehicle.
Do not tow in excess of 12 mph (19 kph).
Towing vehicle at above recommended speed may result in
damage to vehicle and other property.
Tow bars are not intended for road use.
Tow bars are designed to tow only one vehicle at a maxi-
mum speed of 12 mph (19 kph). Tow bars are not
intended for highway use. Before towing, place direction
selector in neutral. Do not ride on vehicle being towed.
LIFTING THE VEHICLE
Tool List Qty. Required
Floor jack.....................................................................1
Jack stands..................................................................4
Chocks.........................................................................4
Some servicing operations may require the front wheels,
the rear wheels or the entire vehicle be lifted.
To prevent possible inju-
ry or death resulting
from a vehicle falling
from a jack, be sure the vehicle is on a firm and level
surface. Never get under a vehicle while it is support-
ed by a jack. Use jack stands and test the stability of
the vehicle on the stands. Always place chocks in
front and behind the wheels not being raised. Use
extreme care since the vehicle is extremely unstable
during the lifting process.
When lifting vehicle, position jacks and
jack stands only on the areas indicated.
To raise the entire vehicle, install chocks in front and
behind each front wheel (Ref Fig. 11 on page 9). Center
the jack under the rear frame crossmember. Raise the
vehicle and locate a jack stand under the outer ends of
the rear axle.
Lower the jack and test the stability of the vehicle on the
two jack stands.

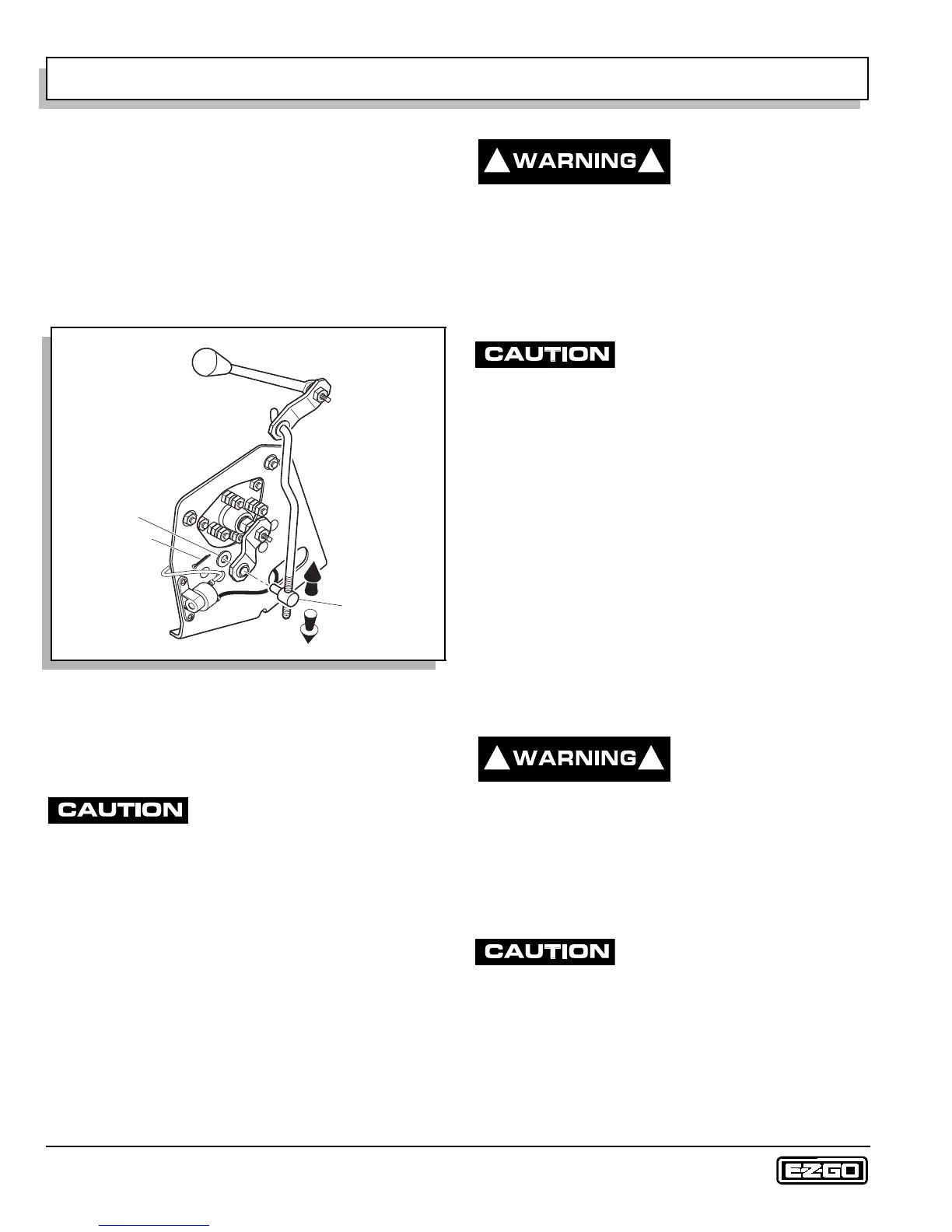

Fig. 10 Direction Selector Adjustment
Trunnion
Cotter pin
Washer
! !
! !
To Next Page
