Ezviz C3W User Manual

1
Operations
Step 1 Power-on

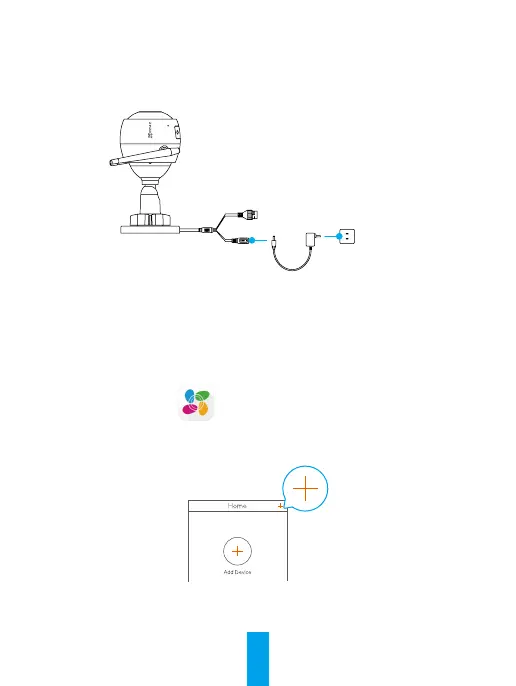

Connect the camera to power outlet with the power adapter, as shown below.
Power Adapter
Power Outlet
Step 2 Camera Setup
1. Create a user account
- Connect your mobile phone to Wi-Fi.
- Download and install the EZVIZ app by searching “EZVIZ” in App Store or Google Play
TM
.
- Launch the app and register an EZVIZ user account following the start-up wizard.
2. Add a camera to EZVIZ
- Log in the EZVIZ app.
- From the EZVIZ app Home screen, tap “+” on the upper-right hand corner to go to the
scan QR code interface.

Ezviz C3W Specifications

General

Connectivity	Wi-Fi
DNR	3D DNR
Max. Resolution	1920 x 1080
Audio Input	Built-in microphone
Power Supply	DC 12V/1A
Night Vision	30m (98ft)
Lens	2.8mm @ F2.2, Horizontal angle: 103°, Diagonal angle: 118°
Day & Night	Yes
WDR	Yes
Video Compression	H.264
Wi-Fi Standard	802.11b/g/n
Frequency Range	2.4GHz
Channel Bandwidth	20MHz
Operating Conditions	-30°C to 60°C
IR Range	Up to 30m
Storage	MicroSD card
