Ezviz C3W User Manual

2

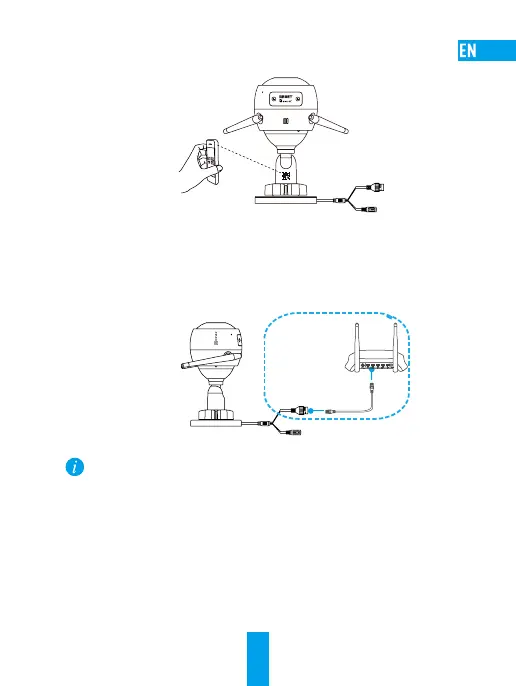

- Scan the QR code on the body of the camera.
- Follow the EZVIZ app wizard to finish Wi-Fi configuration.
You can also select wired connection.
- connect the camera to a router with a network cable.
- add the camera to EZVIZ app by scanning its QR code.
N3
Network Cable
• Hold the RESET button for 5 seconds when adding cameras or Wi-Fi connection failed.
• Please make sure your phone is connected to the 2.4GHz Wi-Fi from the router for Wi-Fi
configuration.

Ezviz C3W Specifications

General

Connectivity	Wi-Fi
DNR	3D DNR
Max. Resolution	1920 x 1080
Audio Input	Built-in microphone
Power Supply	DC 12V/1A
Night Vision	30m (98ft)
Lens	2.8mm @ F2.2, Horizontal angle: 103°, Diagonal angle: 118°
Day & Night	Yes
WDR	Yes
Video Compression	H.264
Wi-Fi Standard	802.11b/g/n
Frequency Range	2.4GHz
Channel Bandwidth	20MHz
Operating Conditions	-30°C to 60°C
IR Range	Up to 30m
Storage	MicroSD card
