F.W. Bell 5200 Series - Low Field Axial Probe

LOW FIELD AXIAL PROBE
Model Number: MOS51-3204
Flux Density Range: ±1G (100 µT) DC or peak AC
Corrected Linearity: ±0.75% of Reading
Frequency Bandwidth: 0 to 700 Hz (-3dB)
Offset change with Temperature: ±0.02mG / ºC (typical)
Accuracy change with Temperature: 0.001 % / ºC (typical)
Operating Temperature Range: 0 to +75ºC (+32 to +167°F)
Storage Temperature Range: -25 to +75ºC (-13 to +167°F)

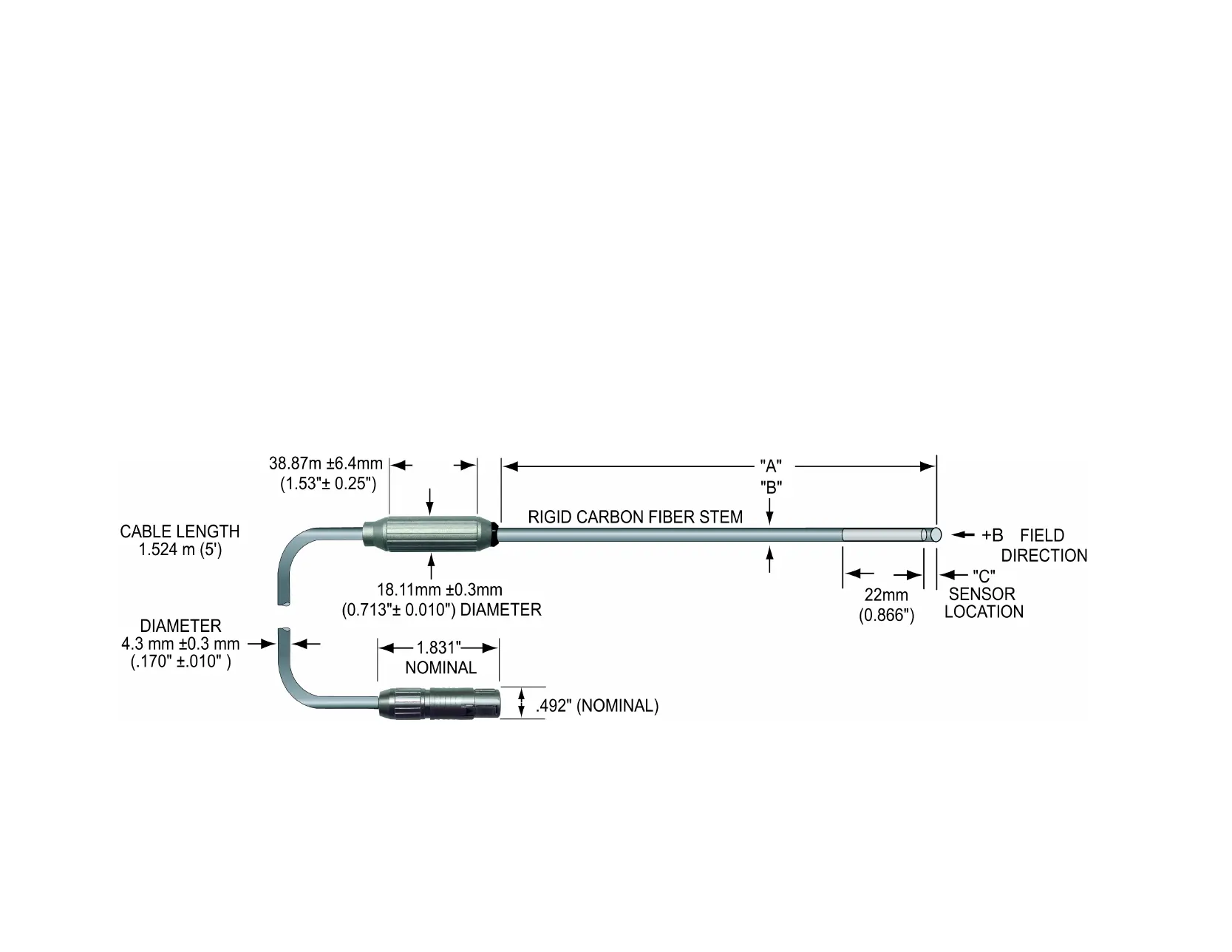

Figure 2-3
Low Field Axial Probe
2-6
