F.W. Bell 5200 Series - Zero Flux Chamber

ZERO FLUX CHAMBER
MODEL NUMBER: YA111
CAVITY DIMENSIONS:
Length: 50.8 mm (2”)
Diameter: 8.7 mm (0.343”)
ATTENUATION: 80 dB to 30 mT (300 G)
PURPOSE: To shield the probe from external magnetic fields during the ZERO or RELATIVE operations.

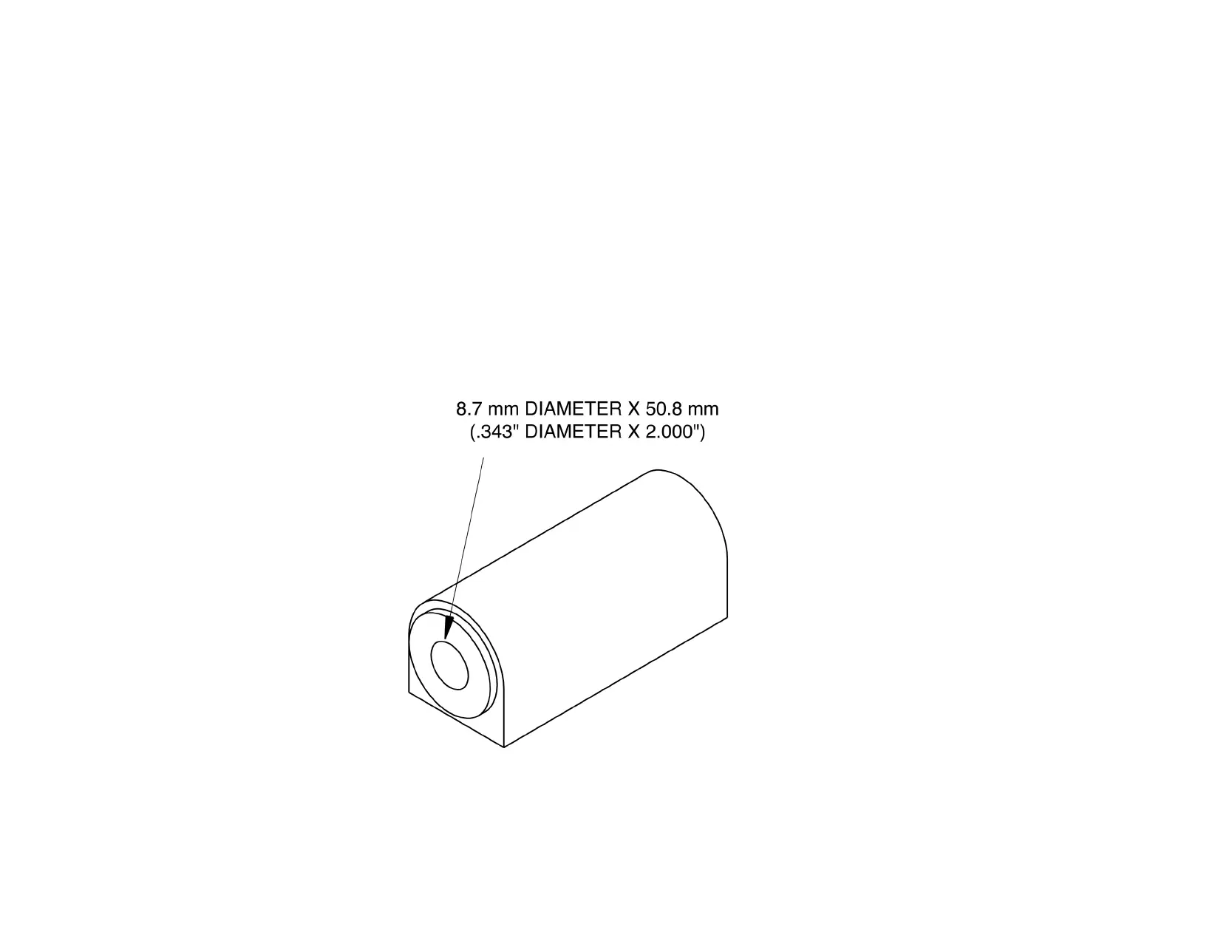

Figure 2-4
Zero Flux Chamber
2-7
