12
ENGLISH
CONTROL BOARD 740 D
1. WARNINGS
Before attempting any work on the control board (connections, maintenan-
ce), always turn off power.
Install, upstream of the system, a differential thermal breaker with adequate
tripping threshold.
Connect the earth cable to the appropriate terminal on the J7 connector
of the equipment (see fig.2).
Always separate power cables from control and safety cables (push-but-
ton, receiver, photocells, etc.). To avoid any electric noise, use separate
sheaths or a shielded cable (with earthed shield).
2. TECHNICAL SPECIFICATIONS
Power supply (+6% -10% V) 230 V~ - 50 Hz (115 V~ - 60 Hz*)
Absorbed power
10 W (10 W*)
Motor max. load
1000 W (1200 W*)
Accessories max. load
0,5 A (0.5 A*)
Operating ambient tempe
-
rature
-20 °C +55 °C
Protection fuses
2 (see fig. 1)
Function logics
Automatic / “Stepped” automatic / Semi-au-
tomatic / Safety devices / Semi-automatic B
/ Dead-man C / “Stepped” semi-automatic
/ Mixed Log. B+C
Work time
Programmable (from 0 to 4 min.)
Pause time
Programmable (from 0 to 4 min.)
Thrust force
Adjustable over 50 levels
Terminal board inputs
Open / Pàartial opening / Safety devices
at opng. / Safety devices at clsng. / Stop /
Edge / Power supply + Earth
On-connector inputs
Opening and closing limit-switches / Enco-
der
Terminal board outputs
Flashing lamp - Motor - 24 Vdc accessories
power supply - 24 Vdc indicator-light / Timed
output. - Fail safe
Rapid connector
5-pin card connection for Minidec, Decoder
or RP receivers
Programming
3 keys (+, -, F) and display, “basic” or
“advanced” mode
Basic mode programmable
functions
Function logic - Pause time - Thrust Force
- Gate direction
Advanced mode program
-
mable functions
Torque at initial thrust - Braking - Fail safe
- Pre-flashing - Indicator-light/Timed output -
Opening and closing safety devices logic -
Encoder - Decelerations - Partial opening
time - Work time - Assistance request - Cycle
counter

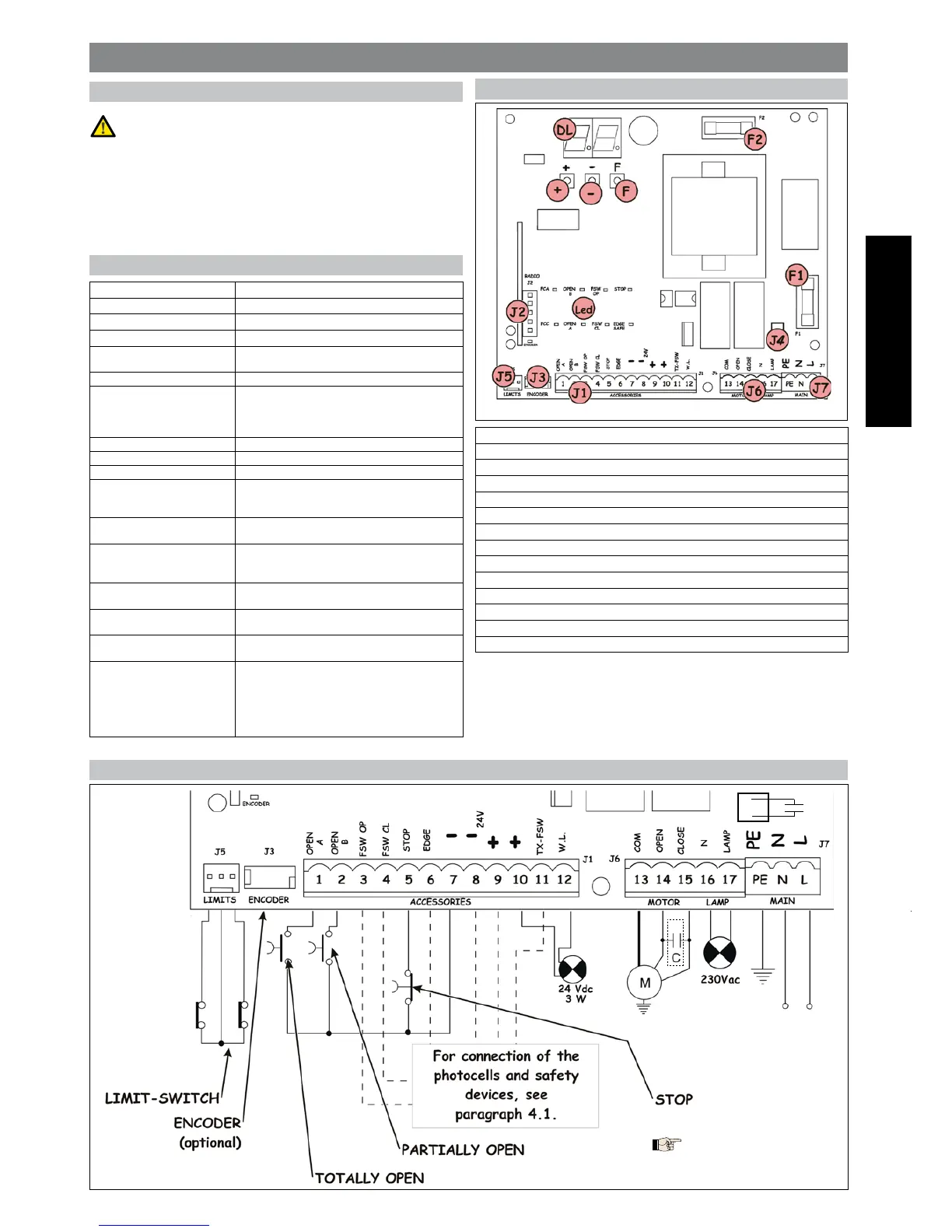

3. LAYOUT AND COMPONENTS
DL SIGNALLING AND PROGRAMMING DISPLAY
Led INPUTS STATUS CONTROL LED
J1 LOW VOLTAGE TERMINAL BOARD
J2 CONNECTOR FOR DECODER/MINIDEC/RP RECEIVER
J3 ENCODER CONNECTOR
j4
CAPACITOR CONNECTOR
J5 LIMIT -SWITCH CONNECTOR
J6 MOTORS AND FLASHING LAMP CONNECTION TERMINAL BOARD
J7 POWER SUPPLY TERMINAL BOARD 230Vac (115Vac*)
F1 MOTORS AND TRANSF. PRIMARY FUSE (F 5A) (F 10A*)
F2 LOW VOLTAGE AND ACCESSORIES FUSE (T 800mA)
F “F” PROGRAMMING PUSH-BUTTON
- “–” PROGRAMMING PUSH-BUTTON
+ “+” PROGRAMMING PUSH-BUTTON
* 740D 115V
Fig. 1Fig. 1
4. ELECTRIC CONNECTIONS
Fig. 2Fig. 2
* Only if don’t use J4 connector* Only if don’t use J4 connector
*
C
J4
230 V ~ / 50 Hz
or
115 v ~ / 60Hz
(According to
the selected
control unit)
115 Vac
max 60w
(According to
the selected
control unit)
