14
ENGLISH

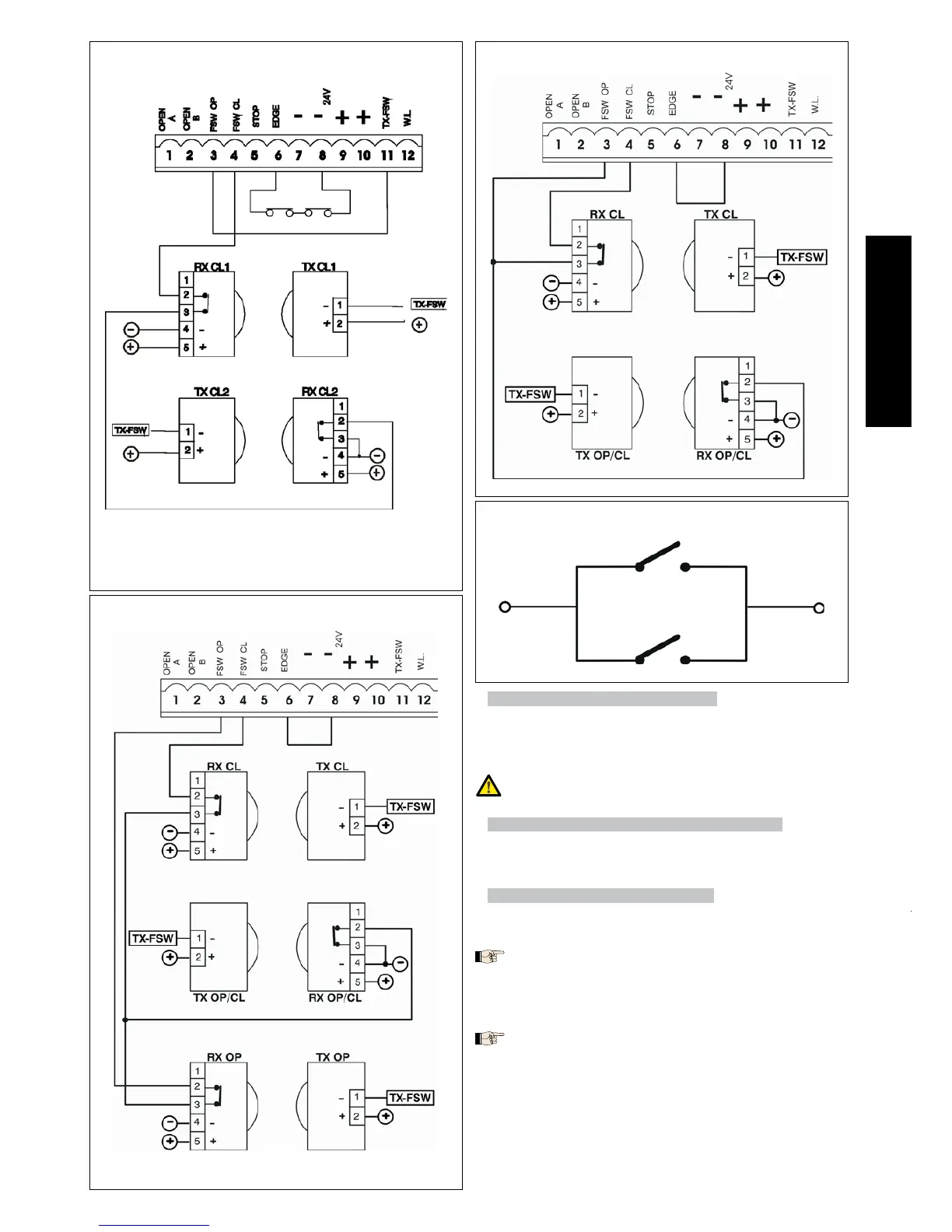

Fig. 11Fig. 11
Connection of two pairs of closing photocells and two edge safety
devices
Connection of two pairs of closing photocells and two edge safety
devices
Fig. 12Fig. 12
Connection of a pair of closing photocells, a pair of opening photocells
and a pair of opening/closing photocells
Connection of a pair of closing photocells, a pair of opening photocells
and a pair of opening/closing photocells
4.2. J7 Terminal board - Power supply (fig. 2)
POWER SUPPLY (TERMINALS PE-N-L):
PE: Earth connection
N: 230 V~ power supply ( Neutral )
L: 230 V~ power supply ( Line )
For correct operation, the board must be connected to the earth conductor
in the system. Install an adequate differential thermal breaker upstream
of the system.
4.3. J6 Terminal board - Motors and flashing lamp (fig. 2)
MOTOR - (terminals 13-14-15): Motor connection. In gearmotors with
a built-in control unit, this connection is pre-wired standard. PFor leaf
opening direction, see basic programming in Chpt 5.1.
LAMP - (terminals 16 -17): Flashing lamp output ( 230 V ~)
4.4. J1 Terminal board - Accessories (fig. 2)
OPEN A - “Total Opening” command (terminal 1): any pulse generator
(push-button, detector, etc.) which, by closing a contact, commands
total opening and/or closing of the gate leaf.
To install several total opening pulse generators, connect the N.O. contacts
in parallel (see fig. 14).
OPEN B - “Partial opening “ or “Closing” command (terminal 2): any
pulse generator (push-button, detector, etc.) which, by closing a
contact, commands partial opening and/or closing of the gate leaf.
In the B and C logics, it always commands gate closure.
To install several partial opening pulse generators, connect the N.O.
contacts in parallel (see fig. 14).
•
•
•
•
•
•
•
Fig. 13Fig. 13
Connection of a pair of closing photocells and a pair of
opening/closing photocells
Connection of a pair of closing photocells and a pair of
opening/closing photocells
Fig. 14Fig. 14
Connection of two N.O. contacts in parallel
(e.g. Open A, Open B)
Connection of two N.O. contacts in parallel
(e.g. Open A, Open B)
