TM2 R 20 A4516_6G66_Rev.C

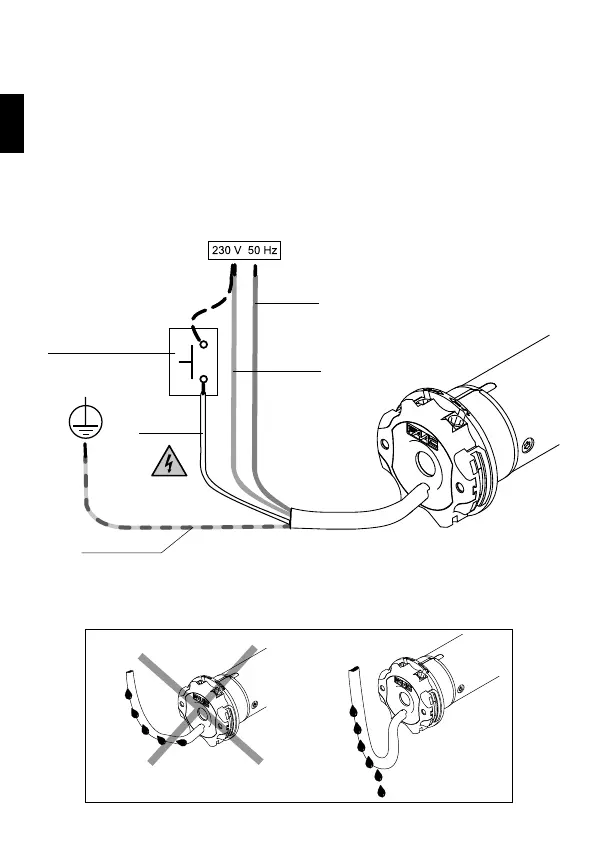

ELECTRICAL CONNECTIONS
- To avoid safety hazards or malfunctions, electrical control devices connected
to the motor must be rated according to the characteristics of the motor.
- Disconnect devices must be installed in the mains power supply line in accord-
ance with national installation regulations.
- If used outdoors, use a H05RN-F power cable with a minimum carbon content
of 2%.
- If the white or black wire is not used, it must always be insulated. It is dangerous
to touch the white or black wire when the motor is powered.
optional button*
brown
blue
white or
black
yellow - green
* The installation of the button is optional; the connection can be made either with
the phase (brown wire) or with the neutral (blue wire). The button can be used to
control the motor in step-by-step mode (up, stop, down stop ...).
EN
