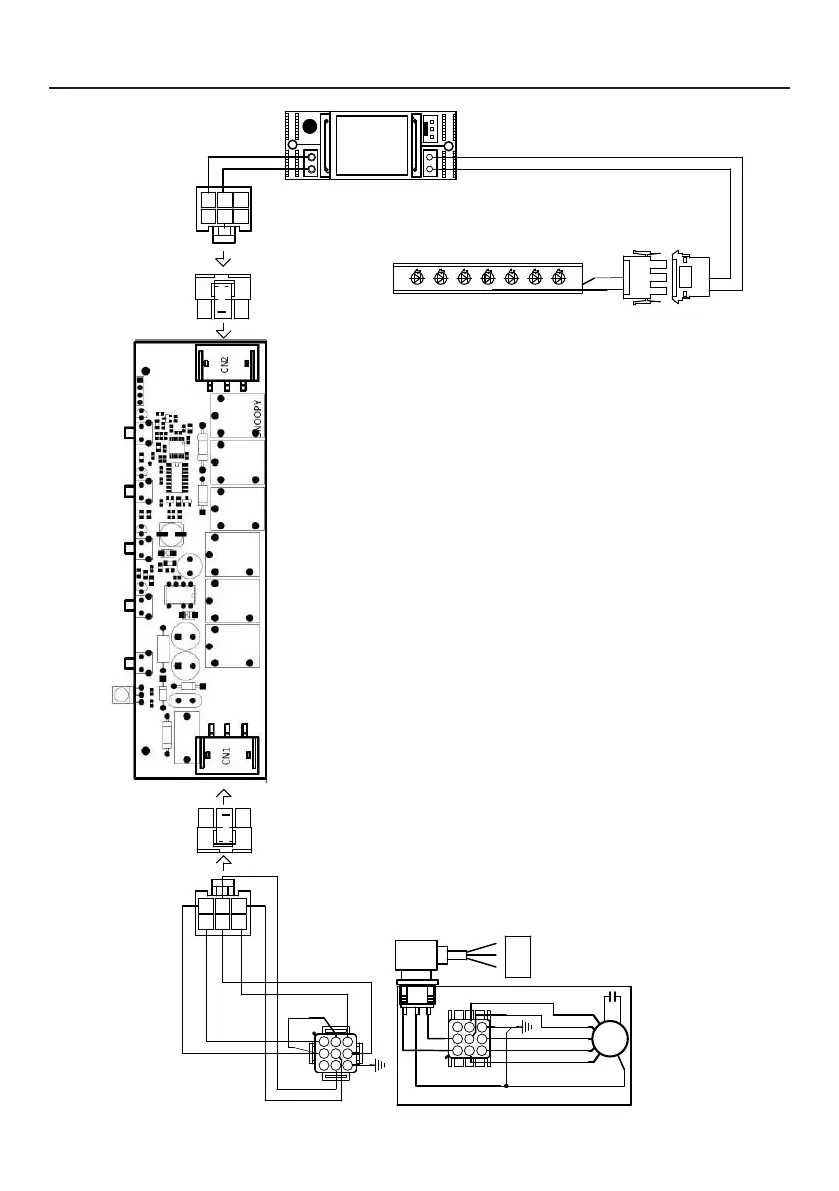

WIRING DIAGRAM 2 M8-4V SNOOPY LED 5W
Approved by
Denomination
Doc Type
Creation date
30/05/2022
FABER Corrado
Created by
991.0682.385
Code
123
654
789
1 23
654
ORG
SNOOPY
CN1
CN2
110-127V
60Hz
123
654
987
SEC.
- +
ELECTRONIC
TRNSFORMER
L N
1 23
654
1
2
3
1
2
3
BRW
GRY
WHT
BLK
BLU
BRW
GRY
WHT
Y-G
PNK
M8-4V
BRW
ORG
BRWWHT
L-BBLU
BLK
GRY
BLU
ORG
ORG
BLK
ORG
GRY
GRY
BLK
