Faber INCA SMART - Cabinet Preparation for Hood Mounting; Creating the Cabinet Opening; Ensuring Cabinet Accessibility

13
3
The Hood can be installed directly on the underside of the cabinet (minimum 24" for electric ranges
and 30" for gas ranges).

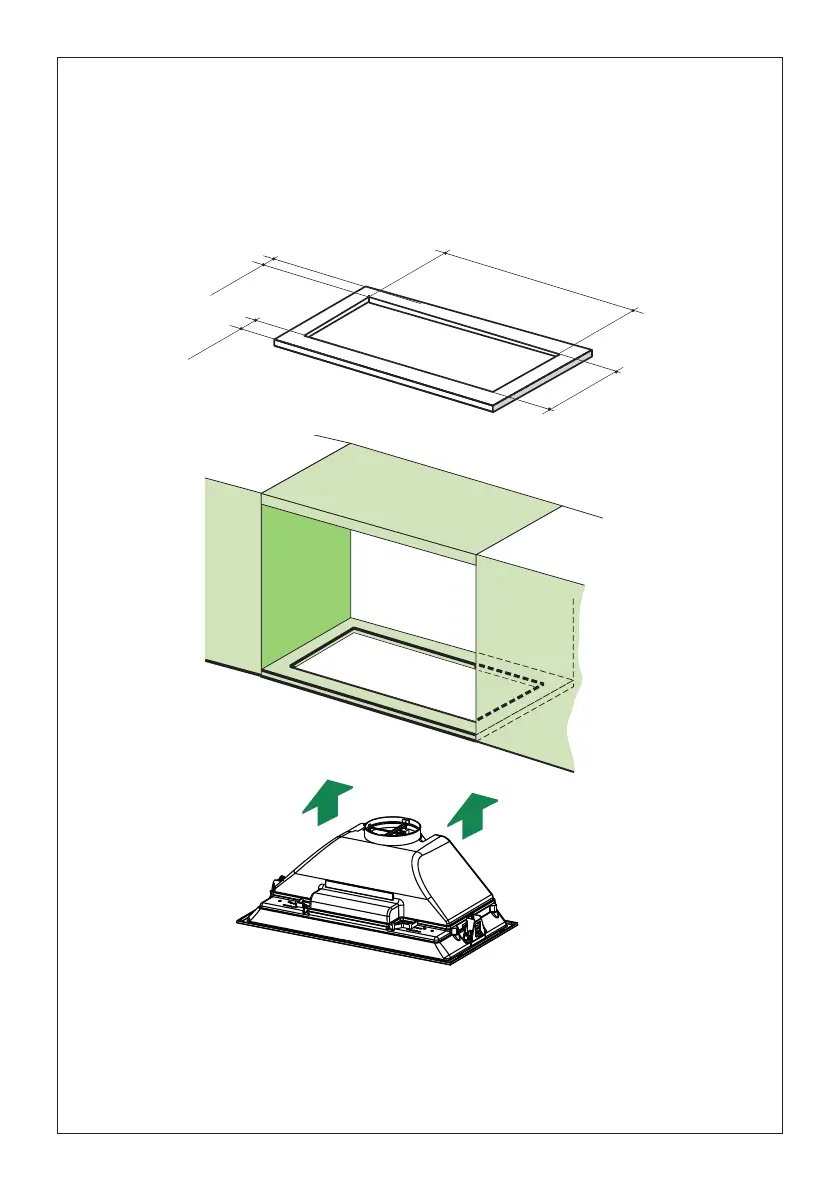

Create an opening in the bottom of the Cabinet, as shown.
Attention: The cabinet must be accessible so that you can access the hood cable and
plug in the future, after installing the product.
1/2”
10 1/4”
19” 9/16 - 26” 5/8
1/2”
1/2”
10 1/4”
19” 9/16 - 26” 5/8
1/2”
1/2”
10 1/4”
19” 9/16 - 26” 5/8
1/2”
21"
28"
