Faber INCA SMART - Securing and Fastening the Range Hood; Hood Insertion and Support Locking; Screw Usage for Hood Fastening

14

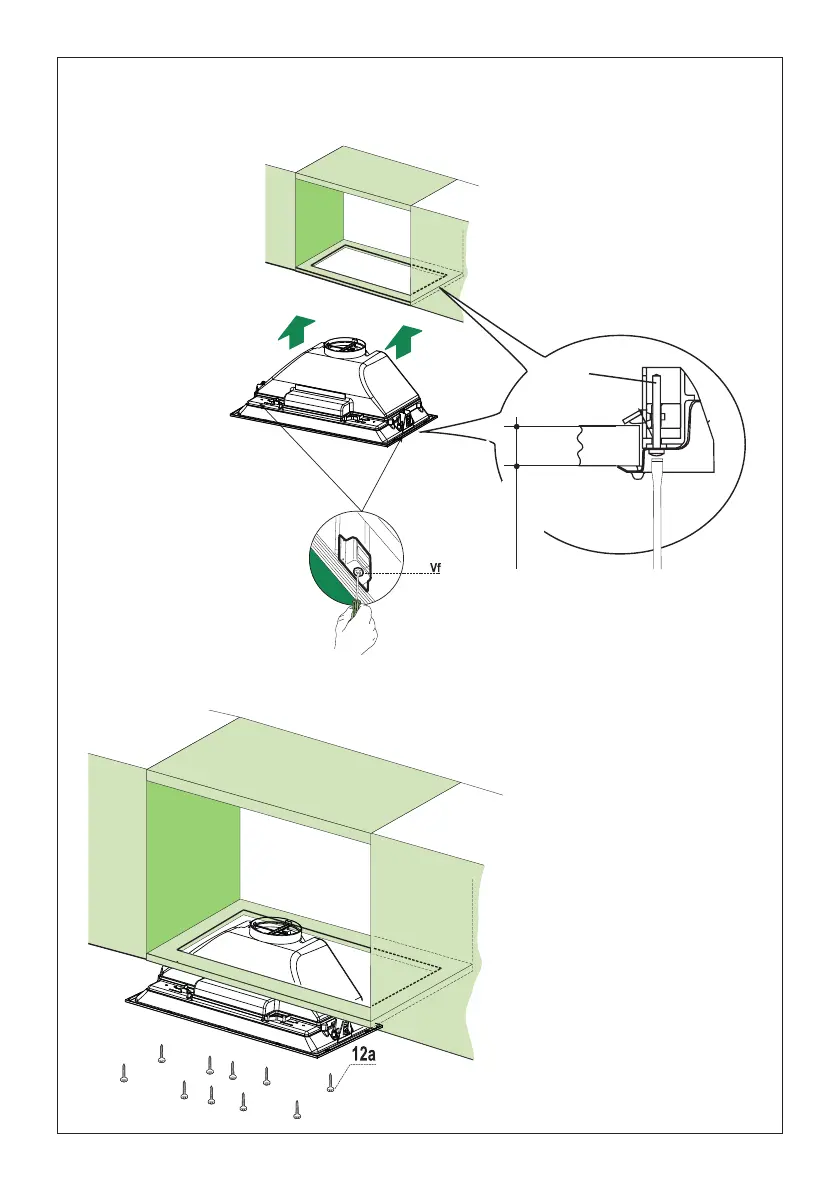

Insert the hood until the side supports snap into place.
Lock in position by tightening the screws Vf from underneath the hood.
Fasten using the 10 screws 12a provided.
10 1/2”
1/2”
19” 9/16 - 26” 5/8
Min.9/16" Max 1" 3/16
Vf
Attention:
INSM21 uses 8 screws
INSM28/INSP uses 10 screws
4
5
