Installation Instructions Installation Instructions
28

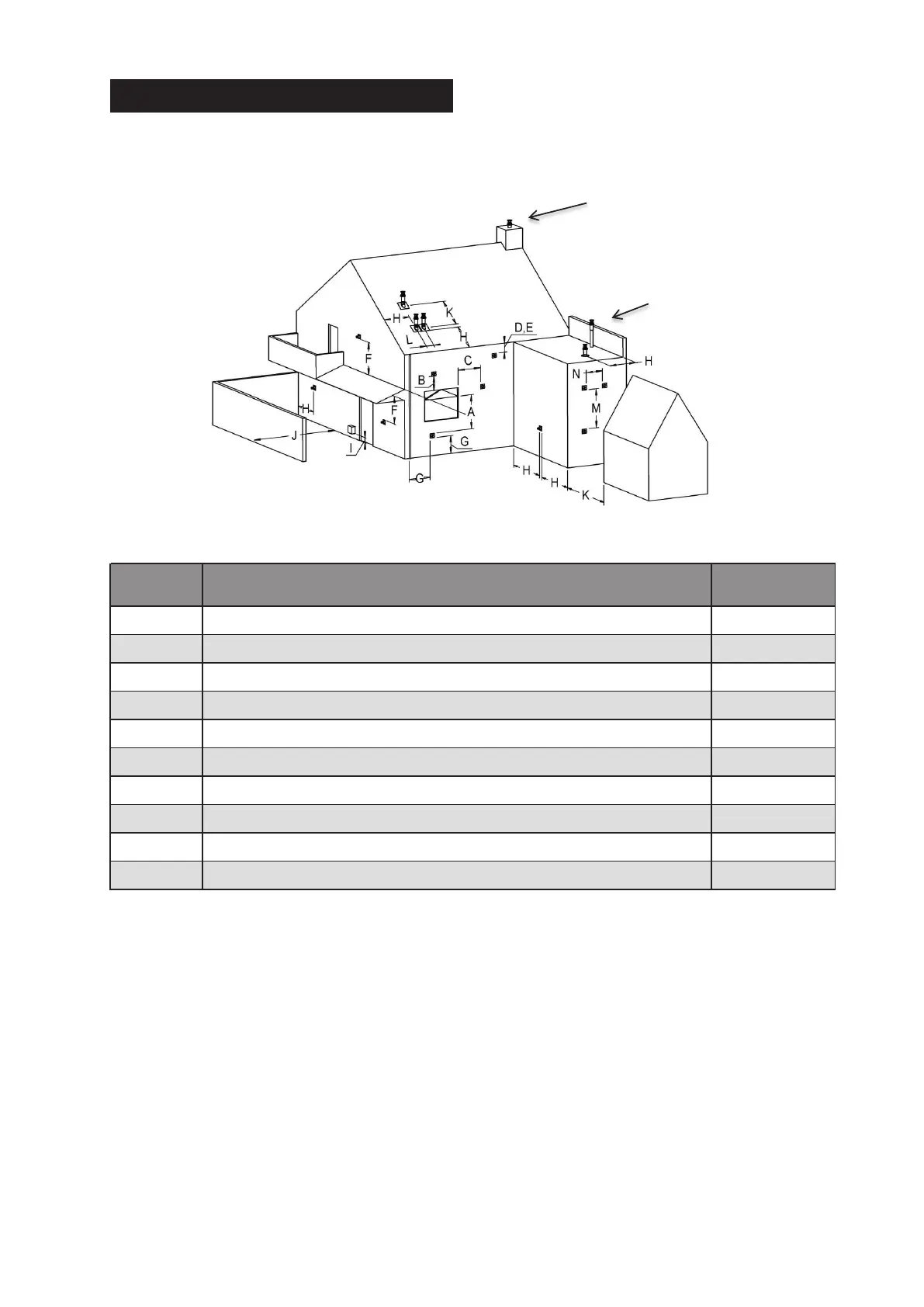

Location Position outlet Distance mm
D Under a gutter 500
E Under a roof edge 500
F Under a carport or balcony 500
G Vertical downpipe 300
H Inside and outside corners 500
J From wall surface to a wall outlet 1000
K Two gable outlets against over each other 1000
L Distance between two roof outlets 450
M Two roof outlets above each other on a pitched roof 1000
N Two gable outlets next to each other 1000
Short roof terminal.
Only for existing
Chimney connection
Extension pipe over roof
15 Terminal position
> Please note: These rules apply only for the proper
functioning of the unit, for ventilation and environmental
protection you need to comply with the applicable rules
as dened in the building regulations.
