Facnor FD110 - Fitting the Feeder; Fitting the Bushing into the Telescopic Section; Fixing the Telescopic Section in the Drum

Facnor
–
FlatDeck furlin
g
& reefin
g
systems
–
Installation manual
4.6- FITTING THE FEEDER

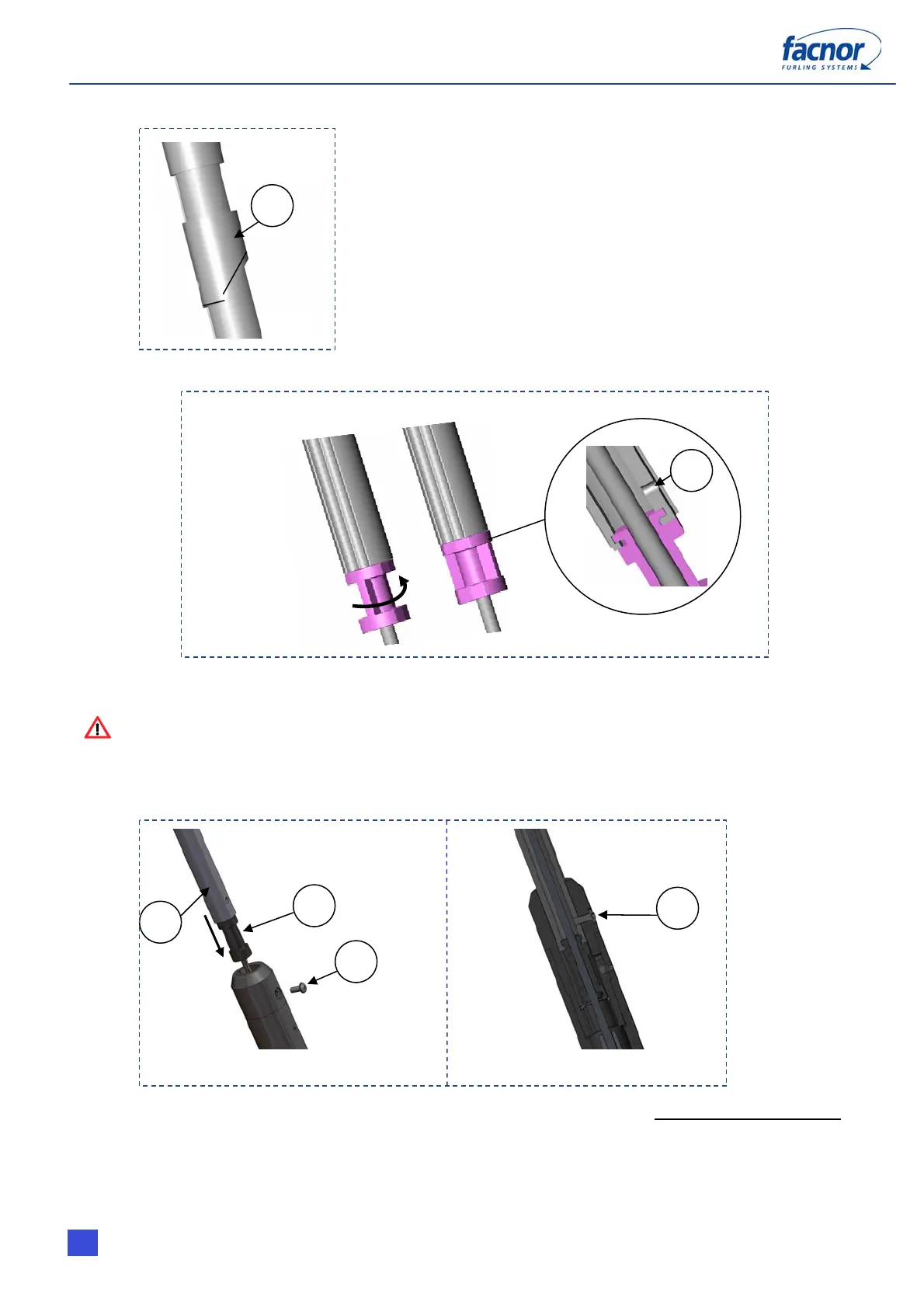

First fit the sail feeder (fig. M) to the telescopic
section as indicated.
4.7- FITTING THE BUSHING INTO THE TELESCOPIC SECTION
Assemble one bushing beneath the telescopic section, the male side pointing up. Fit the
bushing to the telescopic section and give it a quarter turn.
IMPORTANT: Doing this ensures that the bushing is fixed in place at the bottom
of the telescopic section (fig. L).
4.8- FIXING THE TELESCOPIC SECTION IN THE DRUM
4.8.1 4.8.2
4.8.1- Slip the drum around the forestay. Loosen the screw (fig. P) slightly but sufficiently so
that the telescopic section can slide inside the nose of the drum. Lower the telescopic section
(fig. N), with its bushing (fig. O), until the bushing fits in snugly.
4.8.2- Tighten the locking screw (fig. P), which will join the drum to the telescopic section.
26
L
N
O
P
P
M
English
top
bottom
top
Give the
bushing a
quarter turn
