5.4 Fitting the webbing into the drum
5.4.1 5.4.2

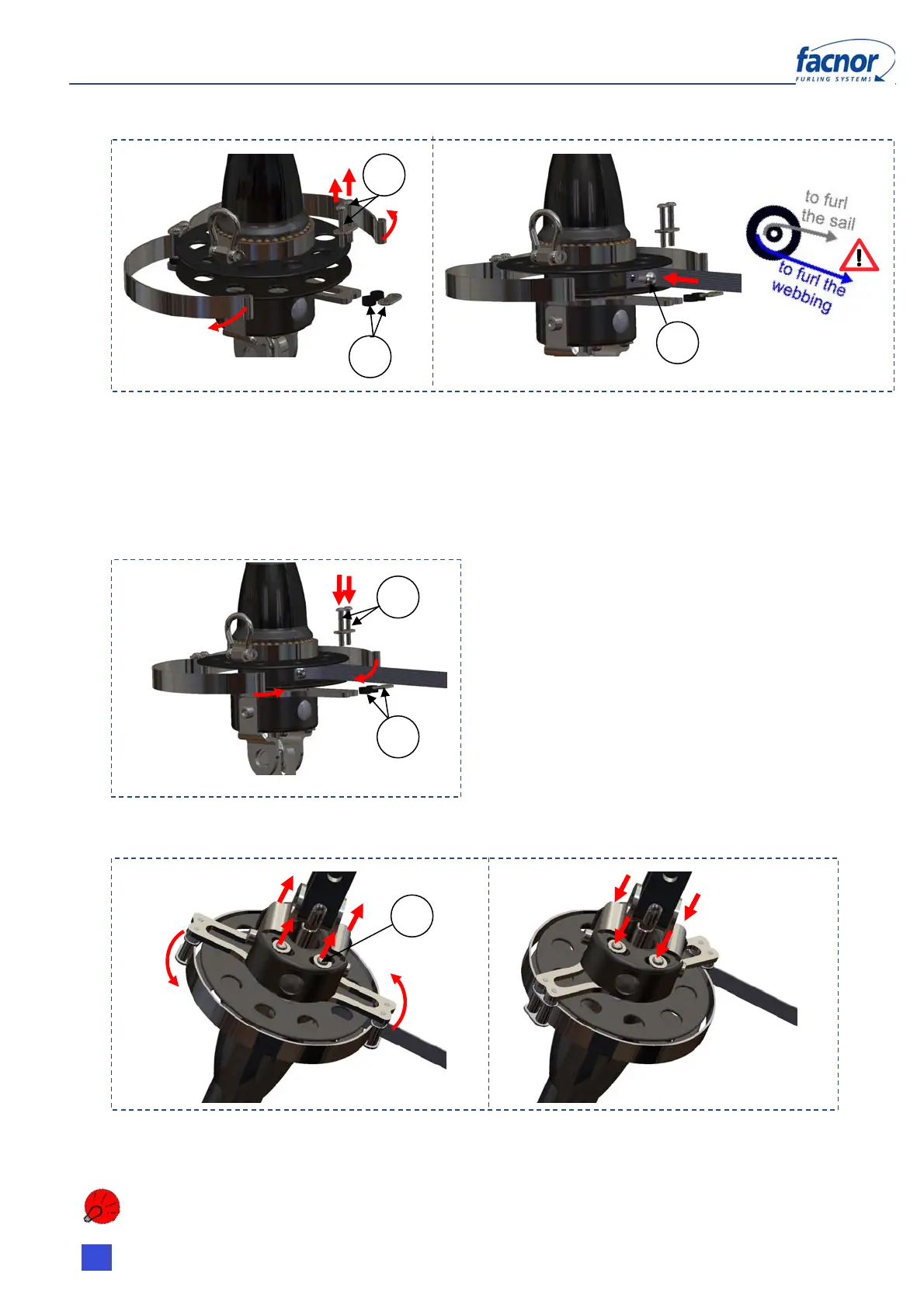

5.4.1 & 5.4.2- Remove the stainless steel screws (Rep. V). Be careful not to lose the washers
(Rep. W) and notice the way these parts are installed. Then, open the guide to access the
webbing fixing screws (Rep. X). Remove the hex socket screw (Rep. X) and introduce the
screw through the hole at the end of the webbing. Fix the webbing to the drum by tightening
the hex socket screw (Rep. X). When fitting the webbing load the drum according to the UV
strip fitted to the sail. UV strip must be covering the sail when the sail is furled.
5.4.3- Close up the stainless steel webbing
guide and fix the screws (Rep. V) with the
washers (Rep. W) as shown.
5.4.3
6- ADJUSTING THE FURLING LINE GUIDE
6.1 6.2
6.1- Loosen the 4 stainless steel fixing screws (Rep. Y) in order to release the rotation of the
guide. Turn the guide to the appropriate position.
6.2- Tighten the 4 stainless steel fixing screws (Rep. Y) firmly but too much.
If the rotation angle is not sufficient, fix the 4 screws (Rep. Y) into the 4 next adjusting
holes.
30
English
X
V
W
W
V
Example :
Y
